TECNIK VALVES

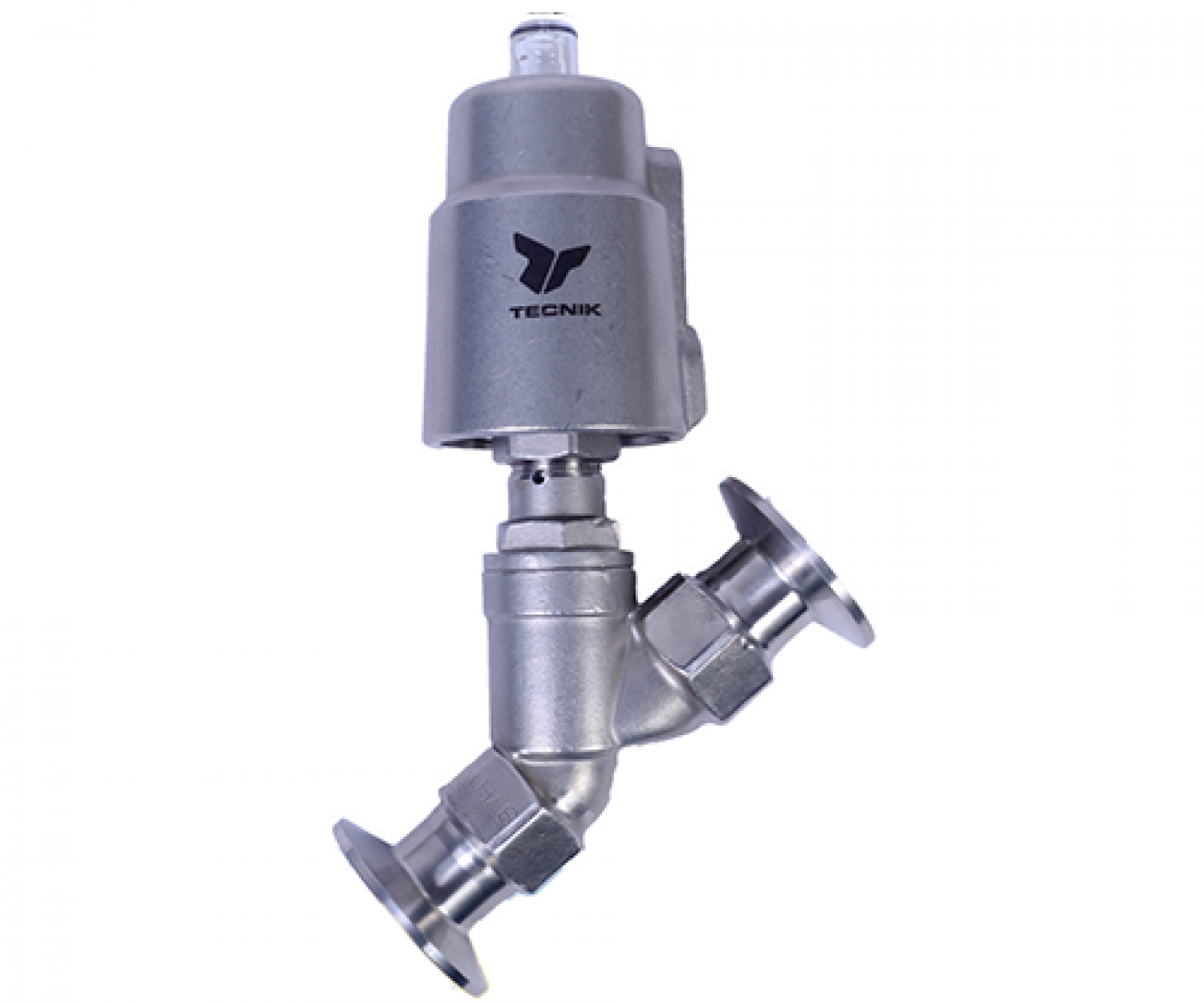

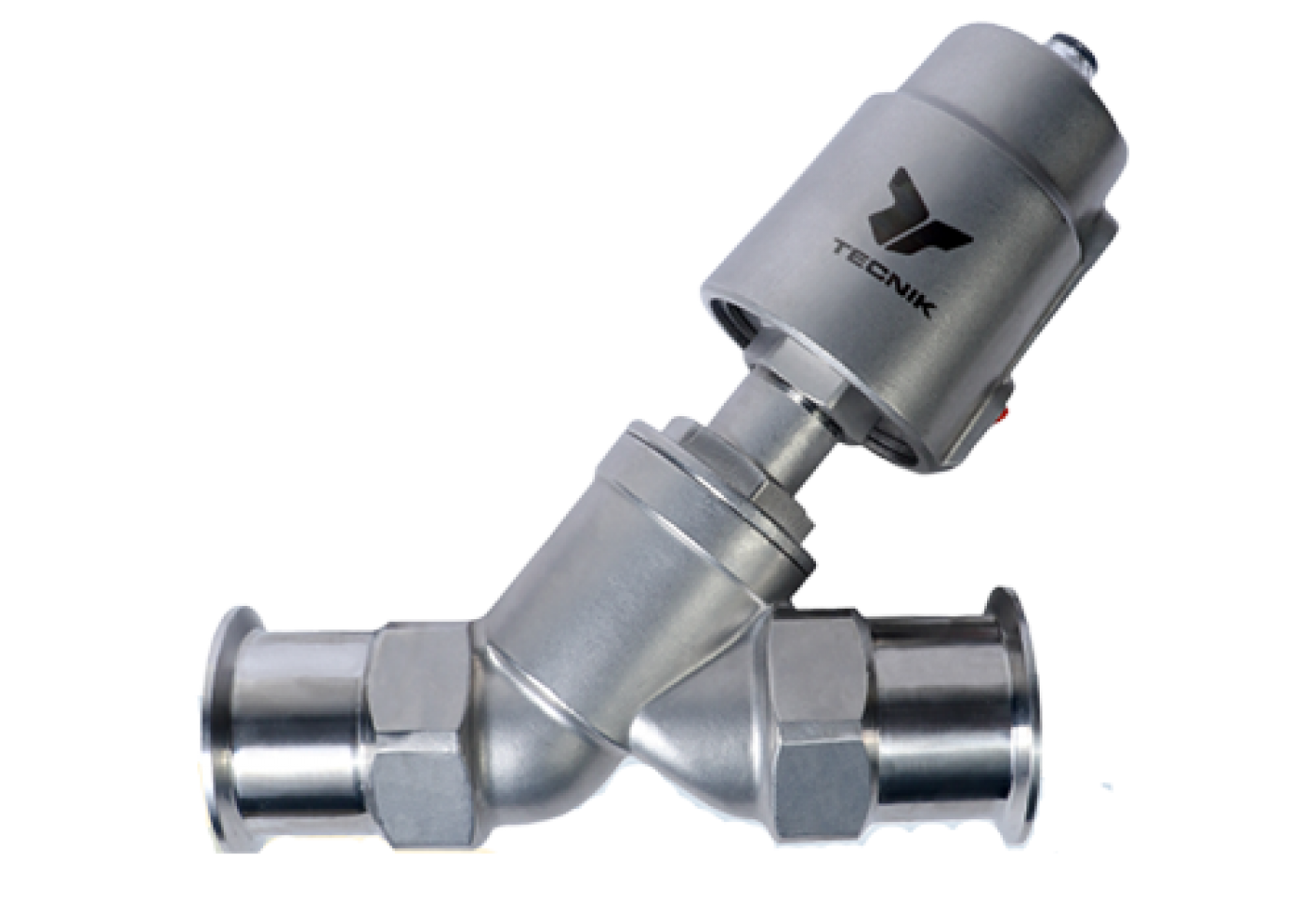

Angle Seated Valve for Sanitary Applications

Function Principle:

  • Angle seated valves are externally actuated Valves. These valves are actuated by a direct Supply of compressed air.
  • In this process, the seat of the process valves is raised by means of a pneumatic actuator.
  • When the actuator is subjected to operating pressure, it raises the piston and at the same time, valve disc too-the valve opens.
  • Standard End: Threaded, Tube end and TC end etc. Size Range: 0.5”-2.5"

Applications:

  • Beverage Filling
  • Textile Printing & Dyeing
  • Natural Gas
  • Pharma and Medical
  • Chemical equipment
  • Water/Sewage disposal
  • Boilers

Advantages:

  • Large flux, low resistance, water-hammer eliminating design.
  • Enlarged Y shaped flow section smooth flow and raises flux.
  • Self-lubricating actuator rotates 360°

Options:

  • Socket, Screwed and flange end available.
  • Double acting option available.
  • Manual topworks available on request.

Actuations & Accessories:

  • Solenoid Valve

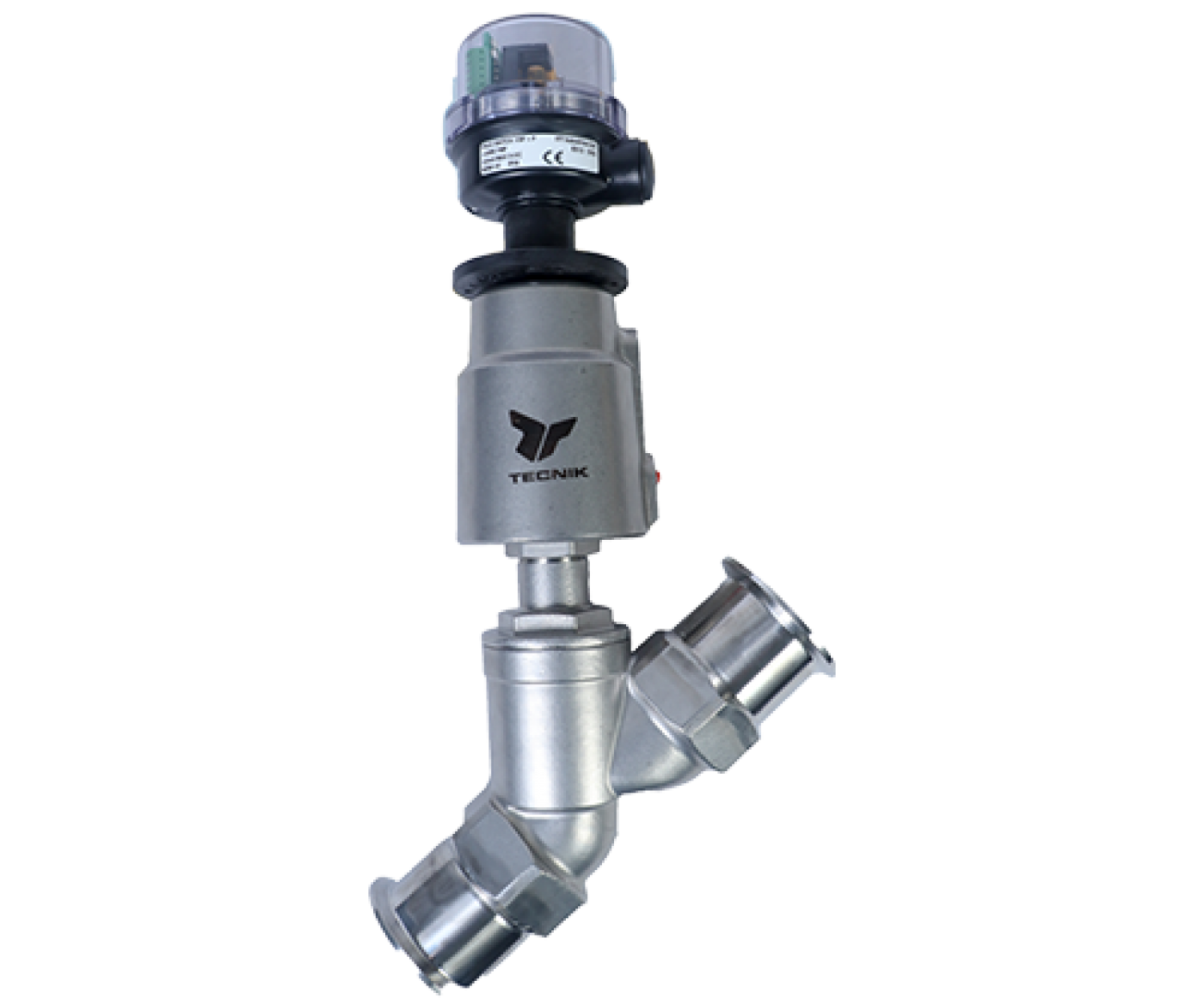

  • Feedback Sensor(ON/OFF)
  • Control Topworks
  • PID Controller
