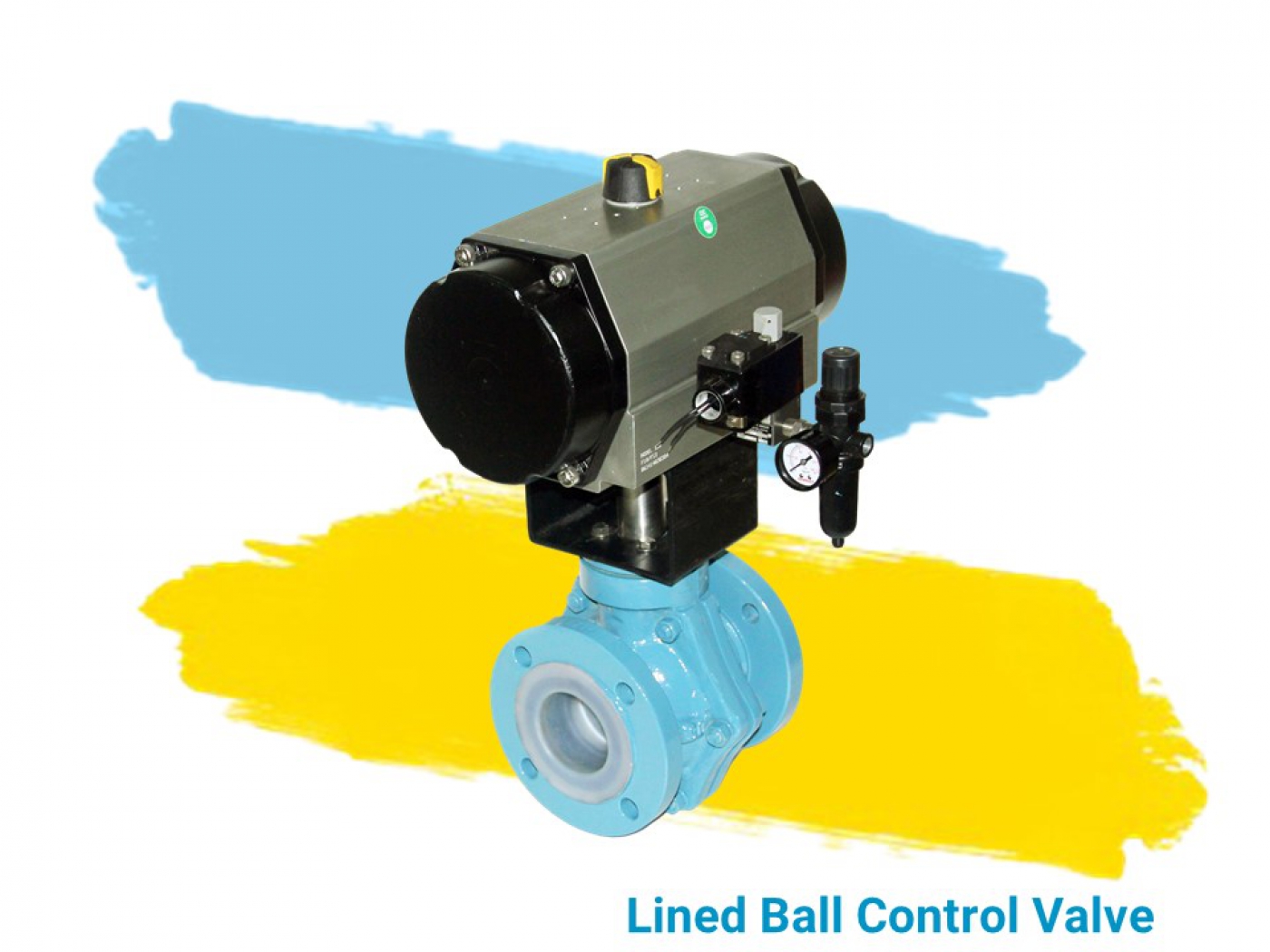

UNICON 4000L - LINED BALL VALVE
- UNICON 4000L lined ball valves are ideally suited for corrosive mediums, requiring reliable performance, tight shut‐off, constant torque and minimal maintenance.
- The valves successfully handle a multitude of corrosive application in industries such as Chemical, Petro‐chemical, Pharmaceutical, Pulp and Paper Industry.
- Application
- Highly corrosive fluids and gases such as, Hydrochloric acid, Sulphuric acid, Nitric acid and Phosphoric acid
- Adhesive, paper industry and fuel transport
- Wet and dry chlorine
- Semi-conductor applications
- High quality PFA lining materials cover a wide range of corrosive applications
- Full bore offers high Cv value equal to the pipe
- Bubble tight shut-off precision machined ball and seats
- The self-adjusting packing is maintenance free and helps provide a leak-free stem seal
- Specific anti blow-out shaft design which cannot be affected by the media according to API 609
- PFA lining offers highest corrosion resistance
- Size Range : ½” to 8”
- Pressure Ratting : 150# Class
- End Connections : Flanged RF
- PFA Lining Thickness : 3 mm to 4 mm
- Leakage Class : Class VI (soft seated)
- Flow Characteristics : ON-OFF, Throttling
- Temperature Range : -30°C to 180°C
- Pneumatic Diaphragm Actuators
- Pneumatic Rack and Pinion Actuators
- Pneumatic / Electro - Pneumatic / Smart E/P – Positioners
- Air Filter Regulator
- Solenoid Valve
- Limit Switch
- Proximity Switch
- Manual Override
