EASY FLEX

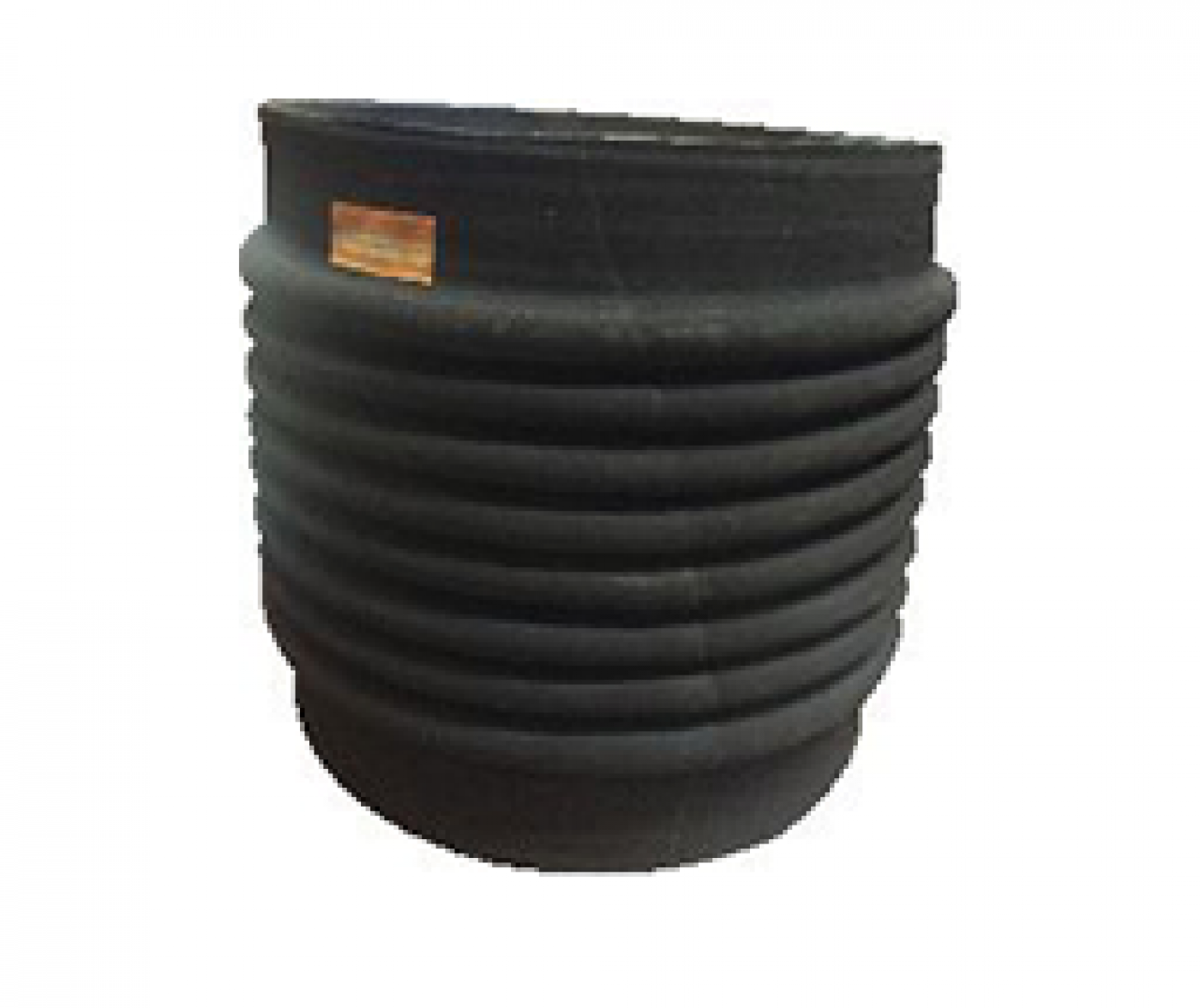

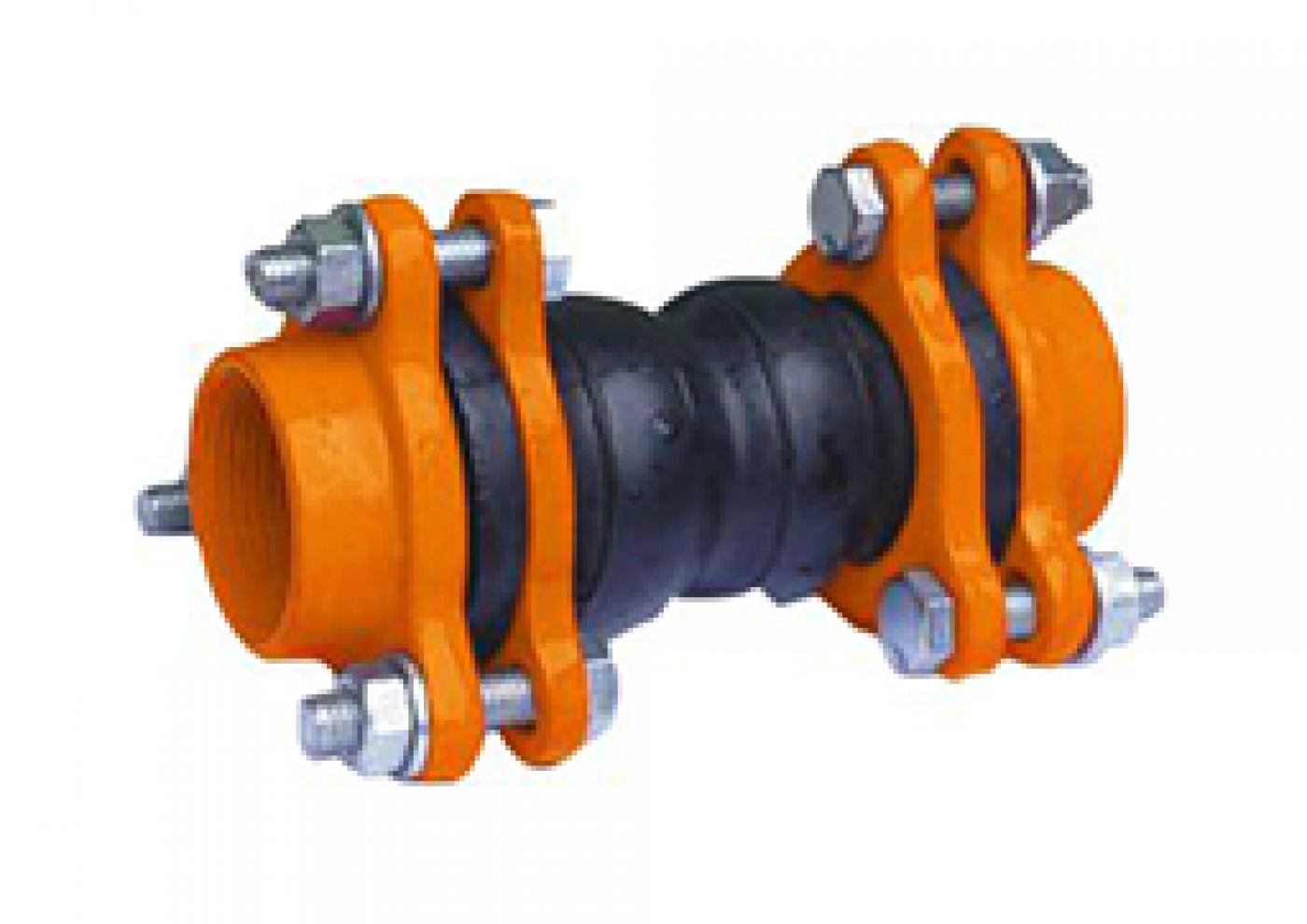

A Rubber Expansion Bellow Joint is a flexible connector fabricated of natural or synthetic elastomers, fluoroplastics and fabrics and Steel Wire reinforcement and, if necessary, metallic reinforcements used to absorb movements in a piping system while containing pressure and a medium running through it. Die Moulded Rubber Bellows of standard sizes are available and For customization Hand Wrapped Rubber Bellows can manufacture and supply.

Rubber Expansion Bellows are an assembly which are used primarily in piping applications to compensate for thermal expansion and contraction, reduce noise and vibration produced by the rotating element as well as relieve pipe stress during operation. A rubber expansion bellows consists of a specific number of convolutions, with the shape of the convolution designed to withstand the internal pressures of the pipe, but flexible enough to undergo axial, lateral, and angular movements.

A number of factors need to considered while designing a rubber expansion bellow. These include the dimensions and flowing medium of the pipeline along with the temperature and pressure rating required for the expansion bellow. Other factors are the movement capability required as well as material and drilling standard of the end flanges.

Easy flex pays utmost attention the quality standards of their products. Easy flex Rubber Expansion Bellows are internationally approved design as per FSA and EJMA USA. Every expansion bellow is tested and given a quality approval before it is dispatched.Easy flex has In-House Testing Facilities to evaluate the quality of its expansion bellows. These facilities include Hydro Testing, Pneumatic Testing as well as Insulation Resistance Testing.

Stallion Traders gives you genuine and verified suppliers of SS Expansion Bellows from all over India. You can search and filter them on our platform. Alternatively, you can directly contact us or give us your buy requirement and we can filter out the most relevant suppliers for you. We can also provide you with complete details of Ss Expansion Bellows supplier like company registration details, financial records, trading history, factory location, quality of material, external inspection report etc.

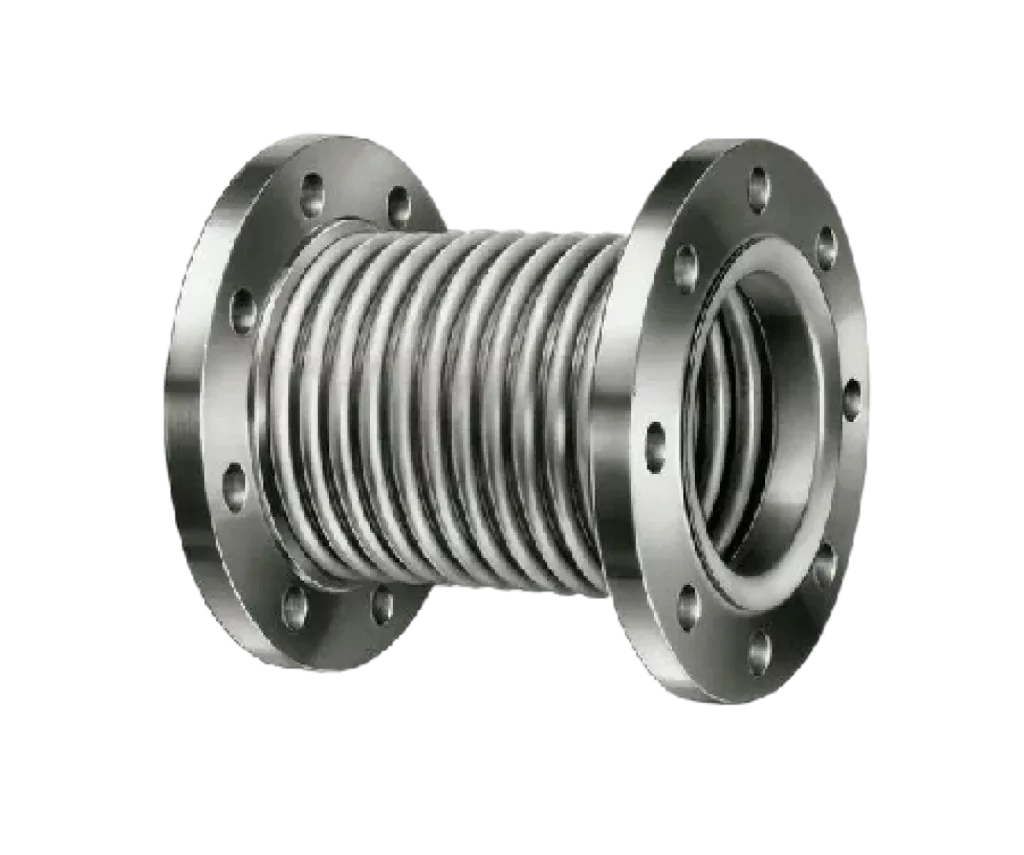

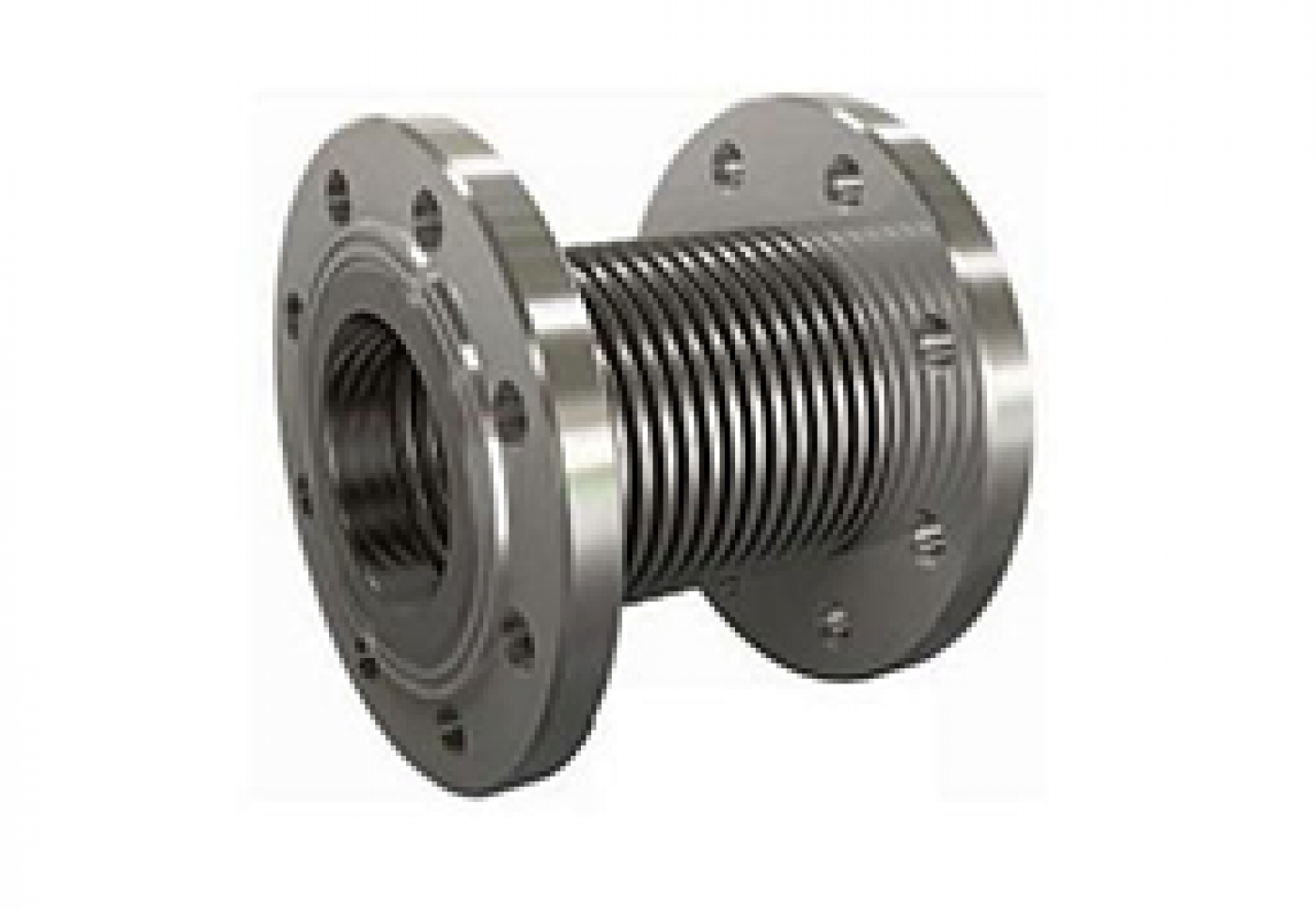

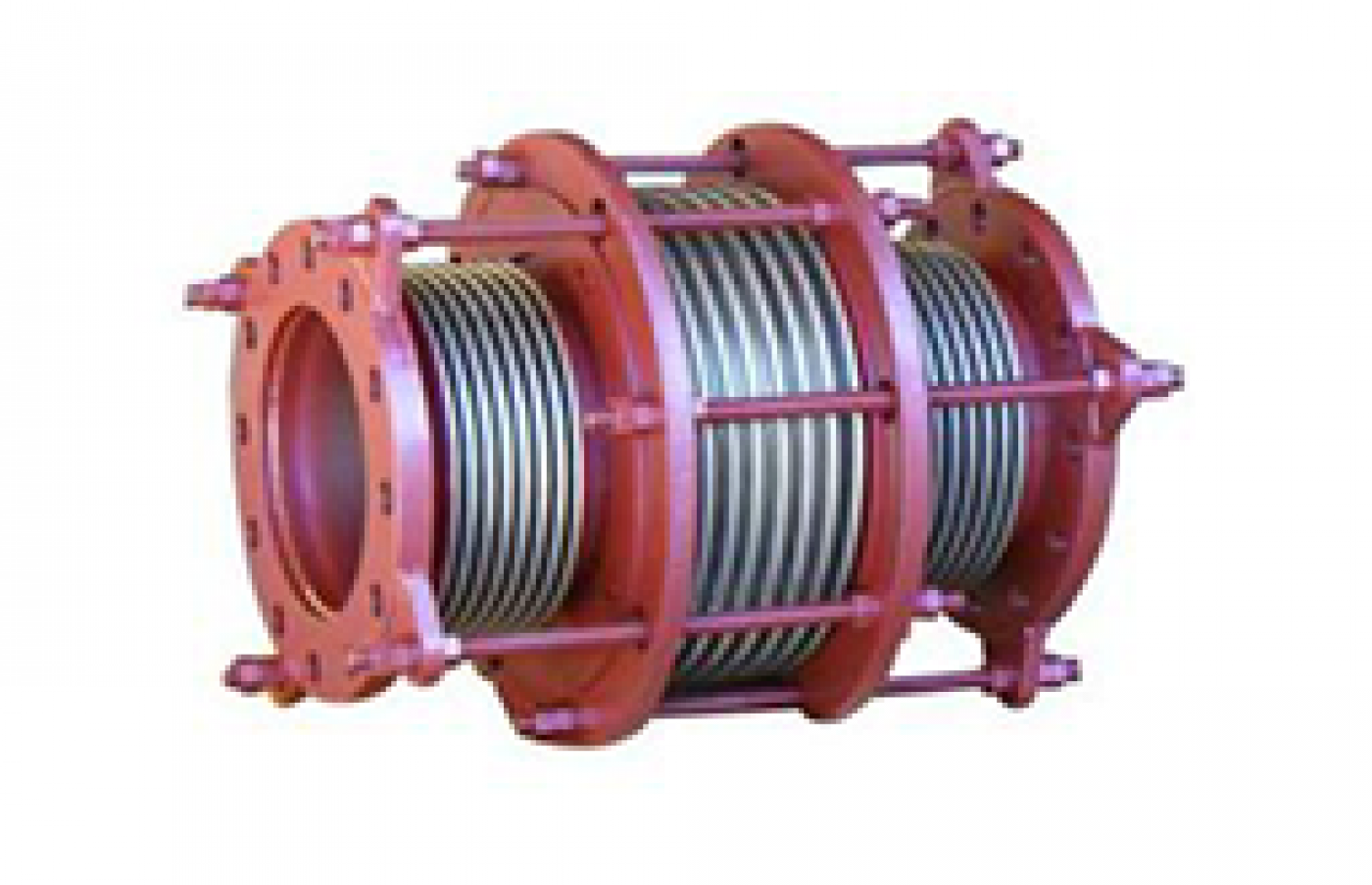

Bellows are a flexible piping element. The corrugation of the expansion joint is designed to be flexible in order to absorb pipe expansion and contraction due to changes in temperature. The number of corrugation of bellows is decided according to the displacement amount and the expansionary and contracting force that the bellows have to absorb. Bellows have to be strong to the design pressure and operating pressure of piping and installation and they also have to be flexible to absorb thermal movement.The thrust force of the flow in the piping has to be buttressed by things other than bellows. These are usually anchors, tie rods, hinges or gimbaled structures and our style ETR thrust restraints.

Flexible connectors are necessary for making fabric compensators. These compensators help to avoid the transmission of vibrations in spiral or rectangular ductwork and suitable for acoustic decoupling. Thus, flexible connectors frequently serve as a connecting element between devices or fans and ventilation ducts.

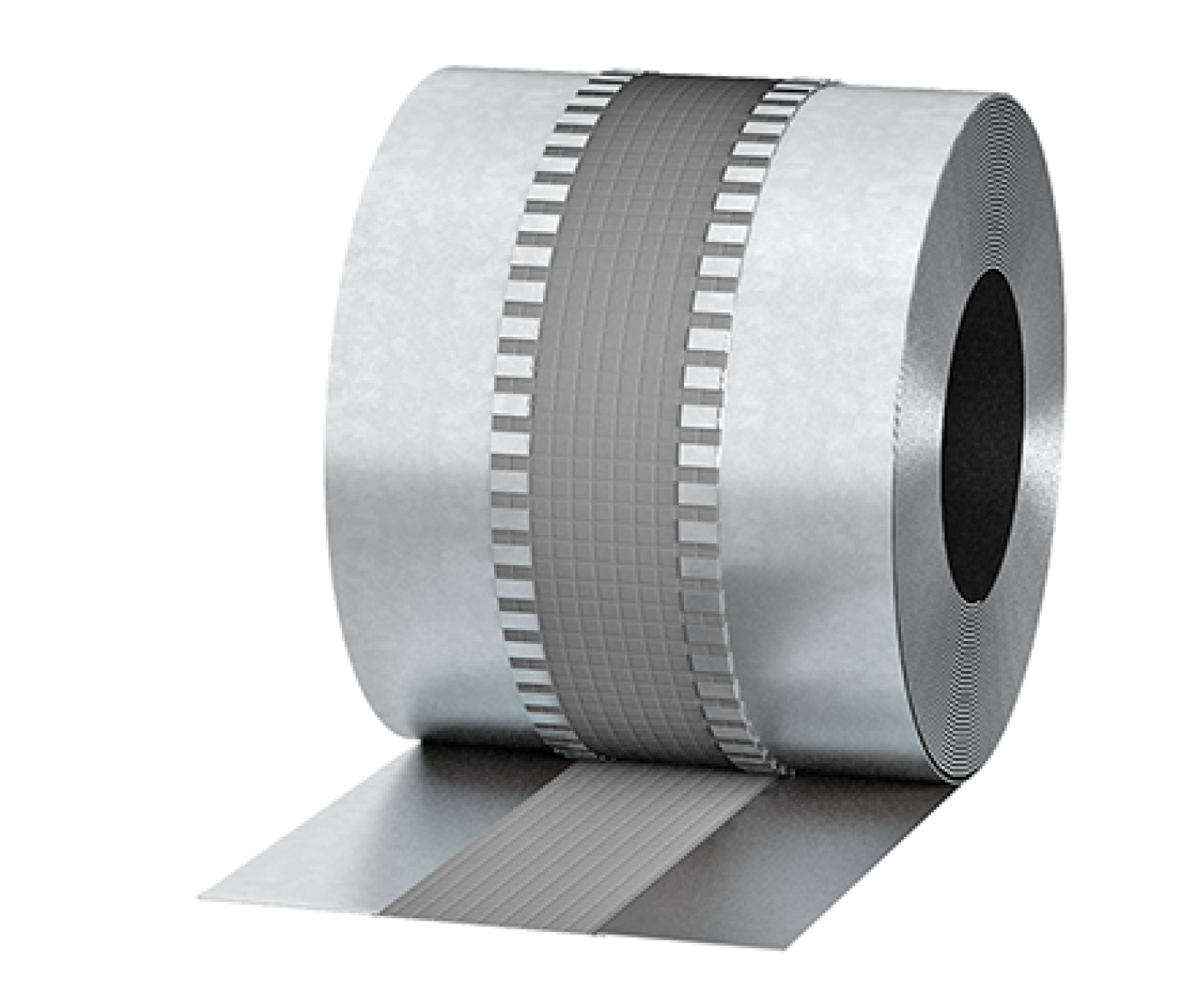

Flexible connectors consist of a fabric, e.g. polyester with PVC coating or glass fibre with PU coating, which is secured to sheet metal on both sides. The sheet metal can be made of galvanised steel or stainless steel. If assembled correctly, the produced compensators are suitable for sealing class C.

In order to isolate vibrations caused by air handling units, fans or other equipment connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the airduct. It is necessary to select an airtight and flexible cloth, with good weathering qualities and one which will withstand the temperatures inside and outside the duct. Duct being generally made of steel, the main difficulty is to fasten the cloth to it in order to obtain a perfectly airtight joint. Easy flex duct connectors are perfect for this job.

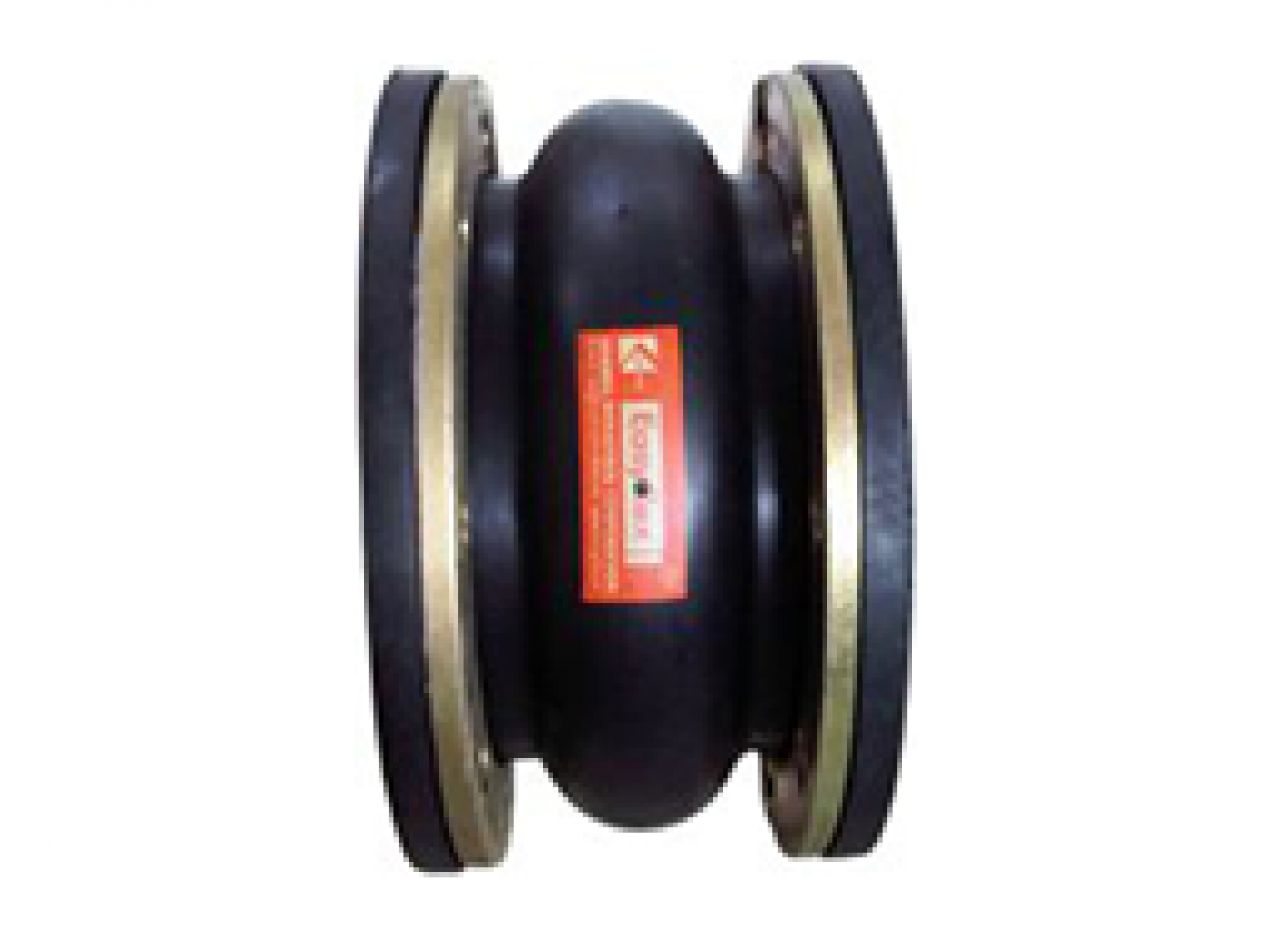

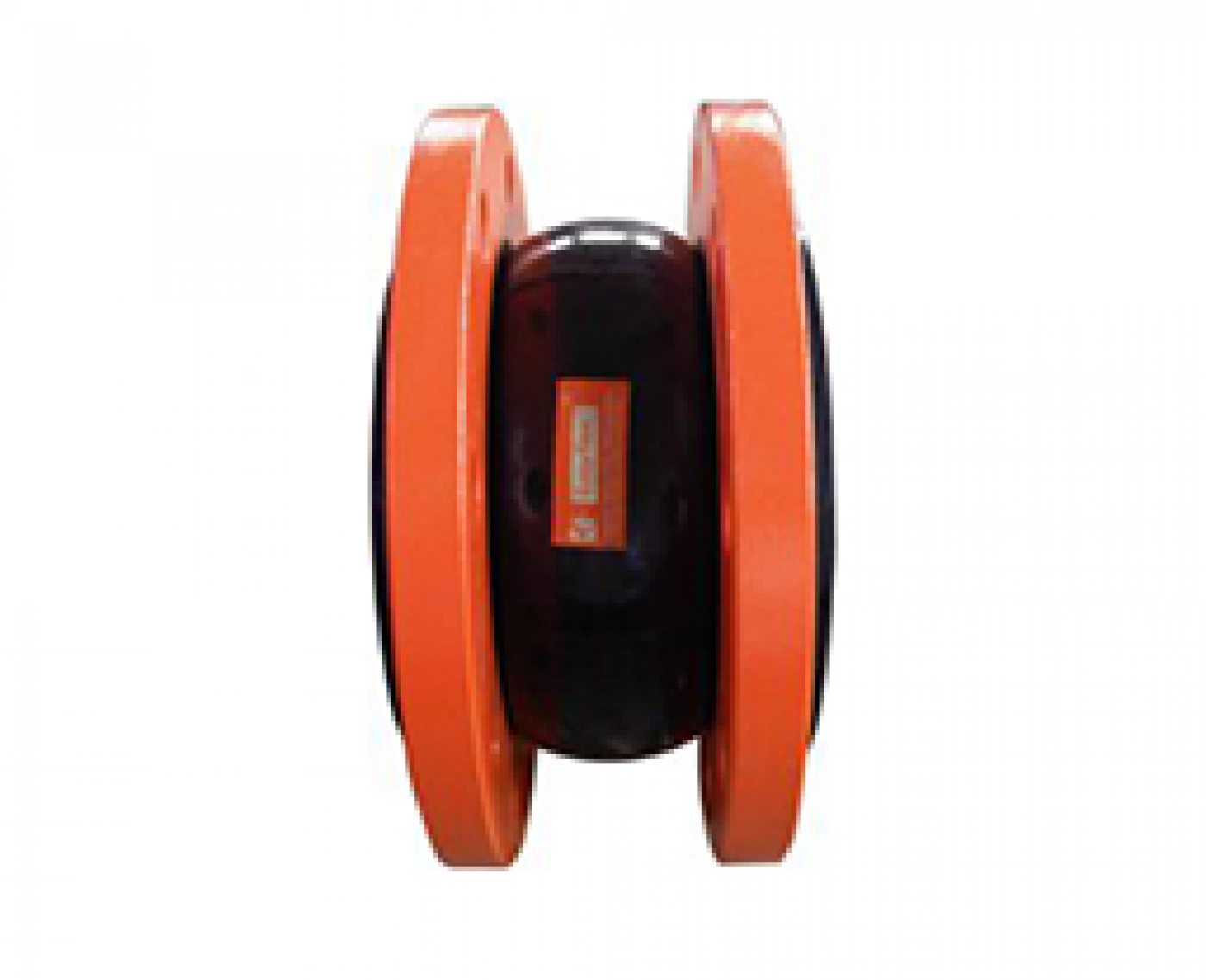

Single Arch Neoprene Joint

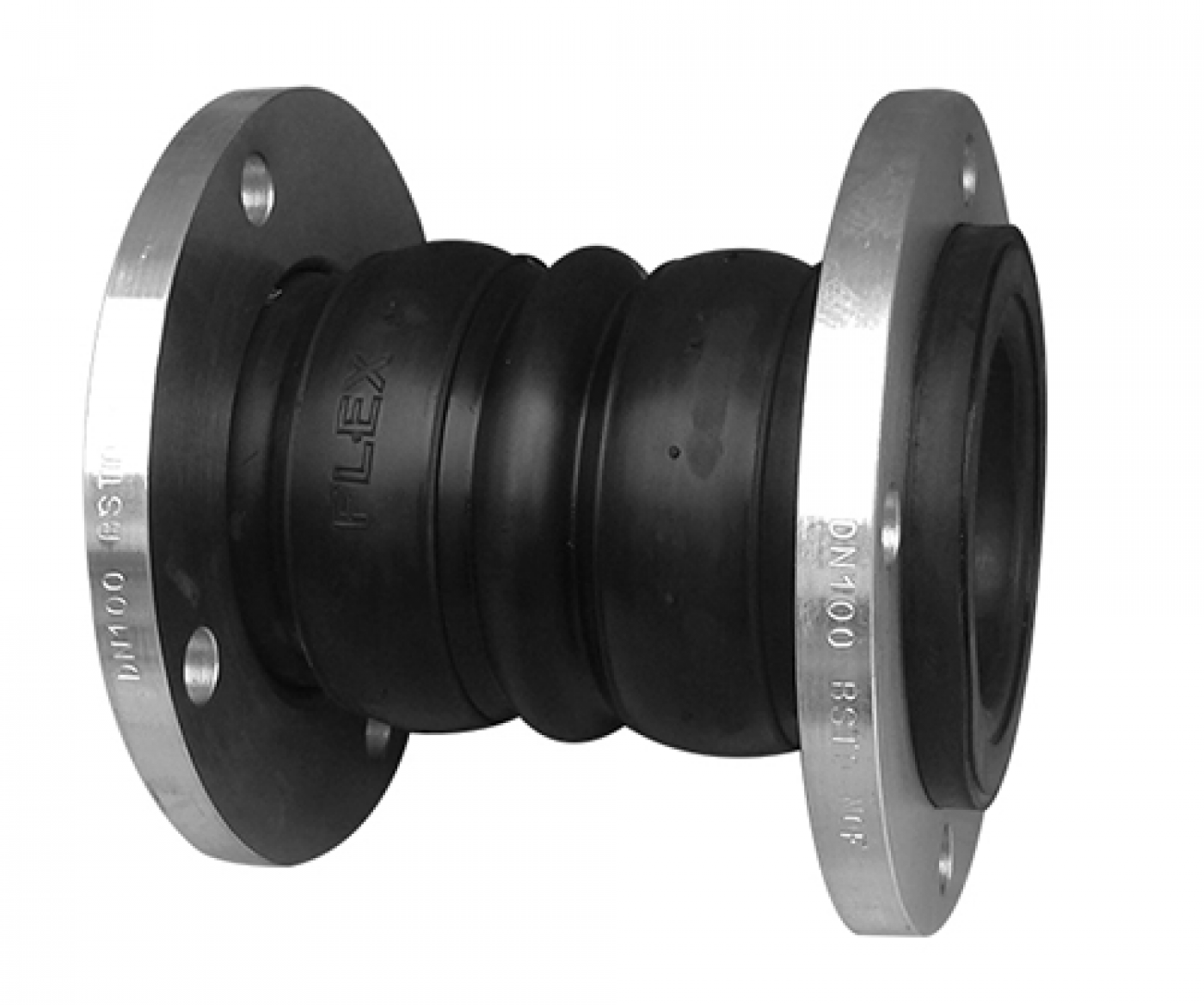

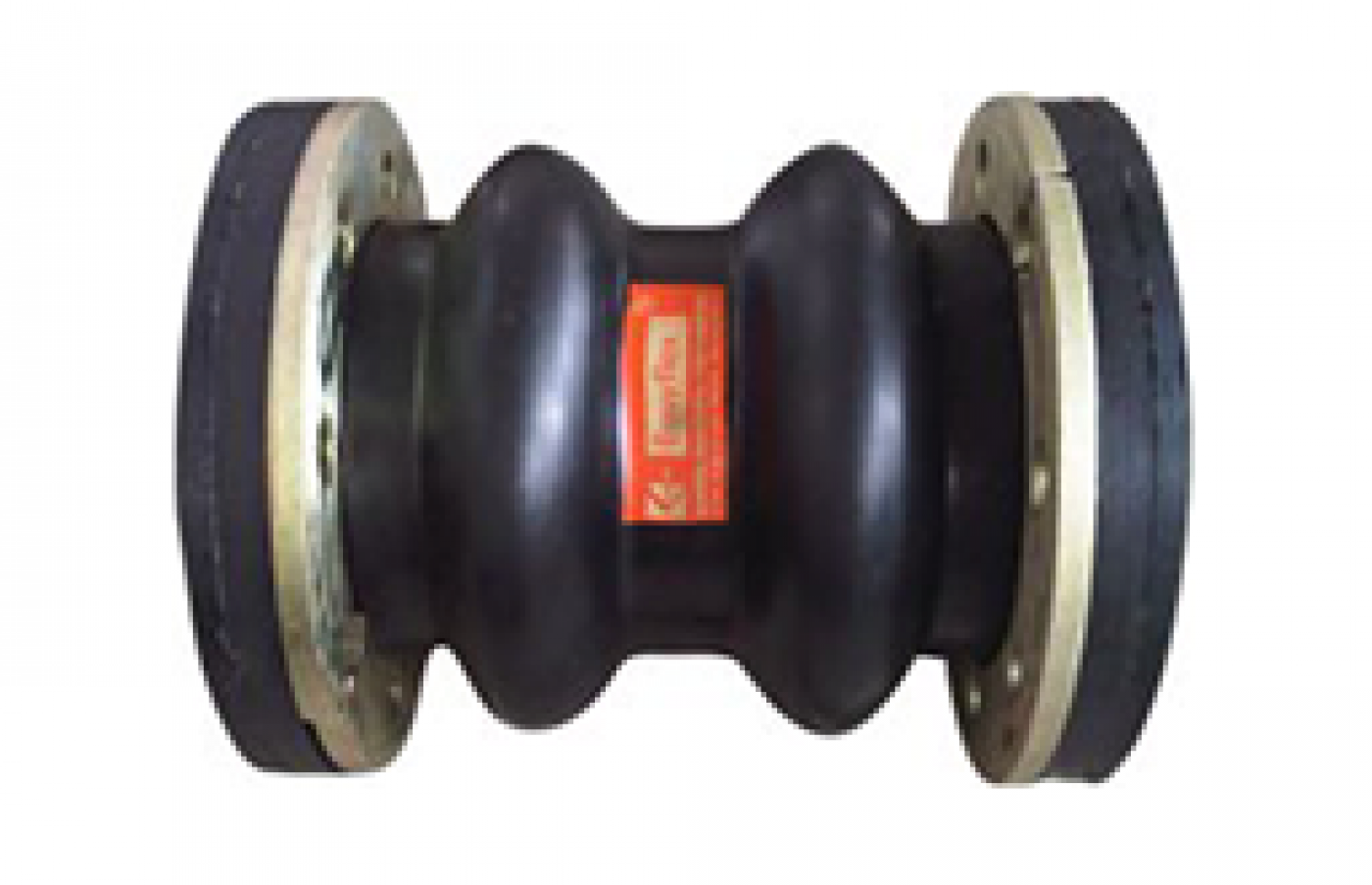

Double Arch Neoprene Joint

Floating Flange Flexible Joint

Neoprene Multi Arch Sleeve

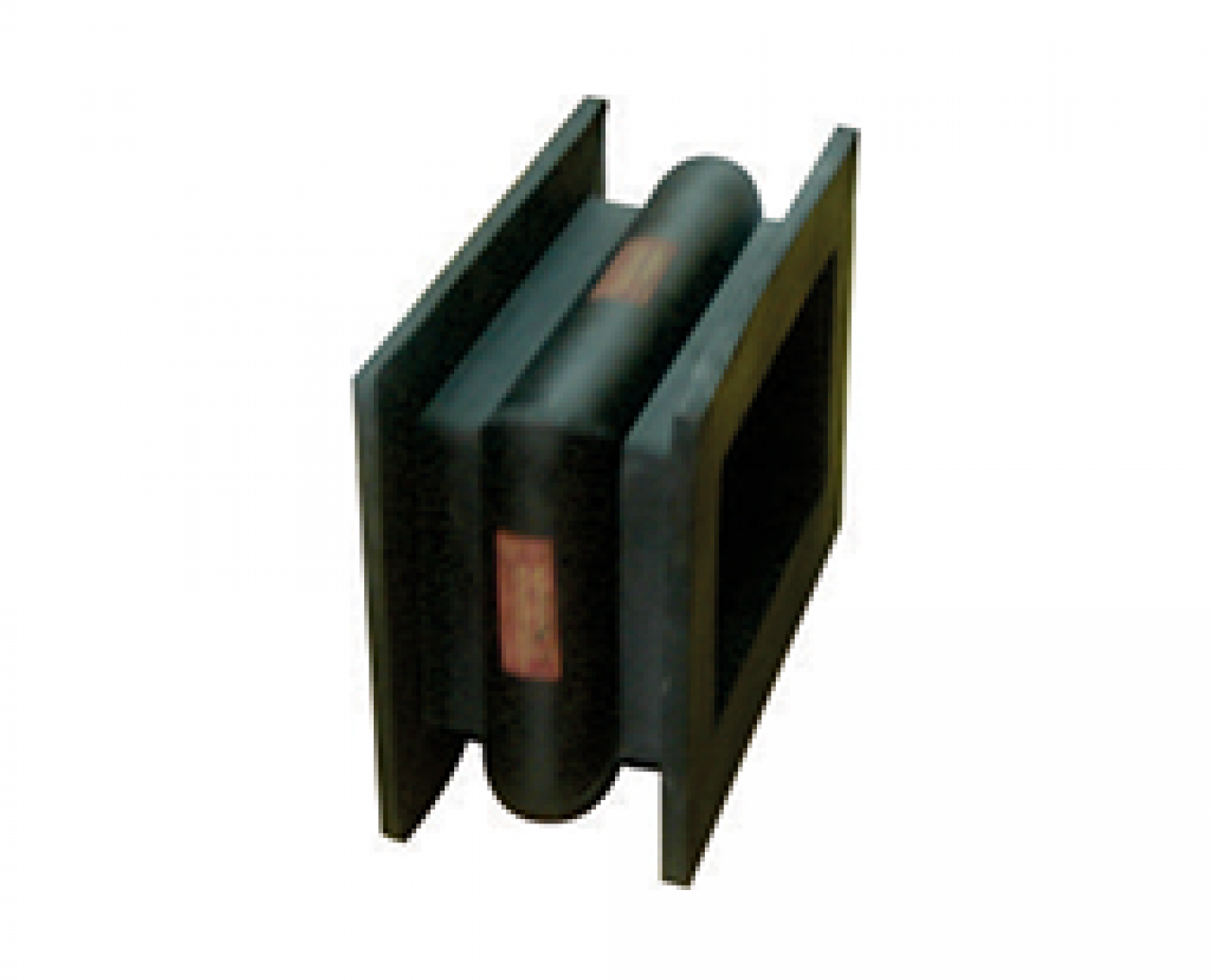

Neoprene/EPDM Busduct Bellow

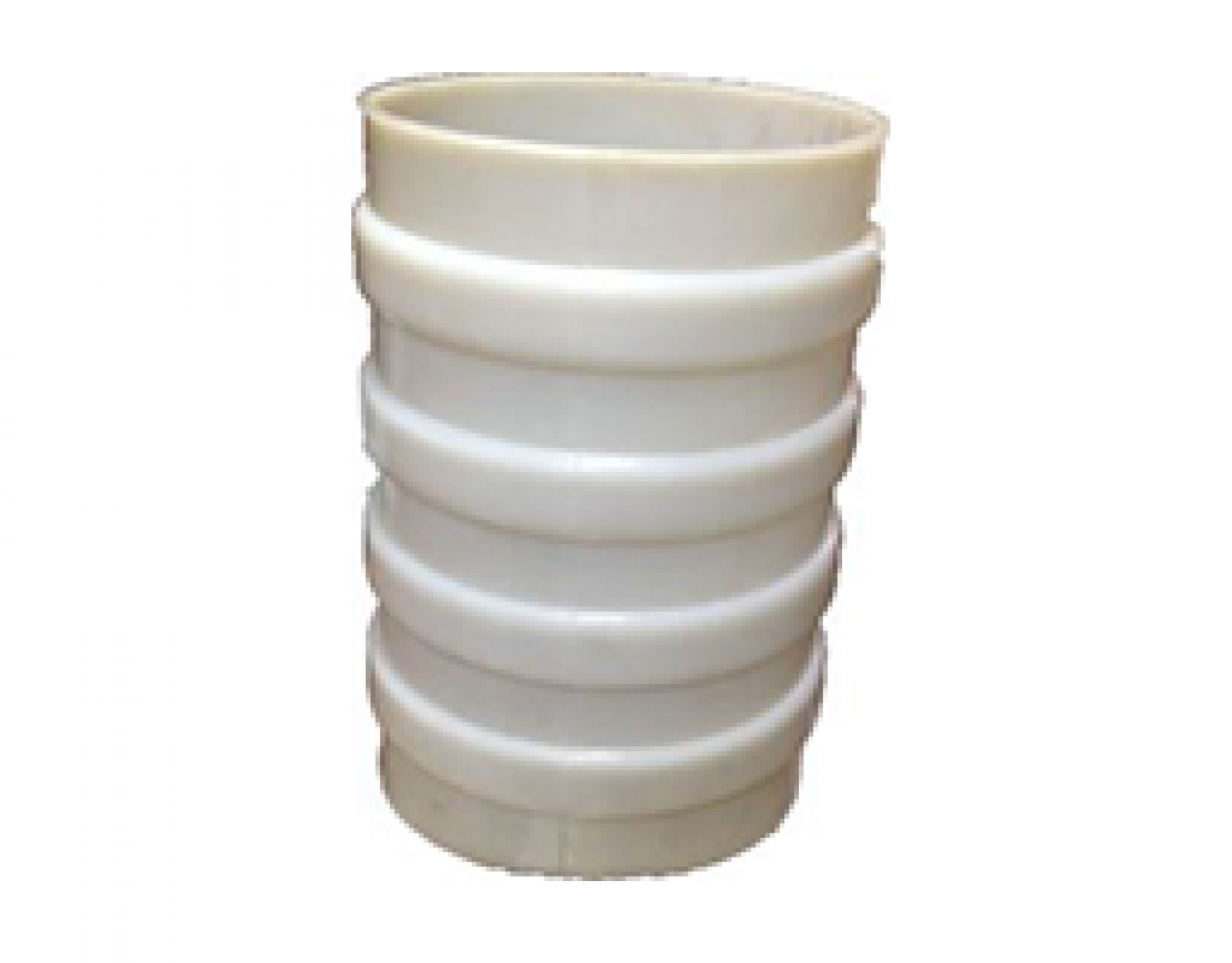

Food Grade Sleeve

Twin Sphere Connectors

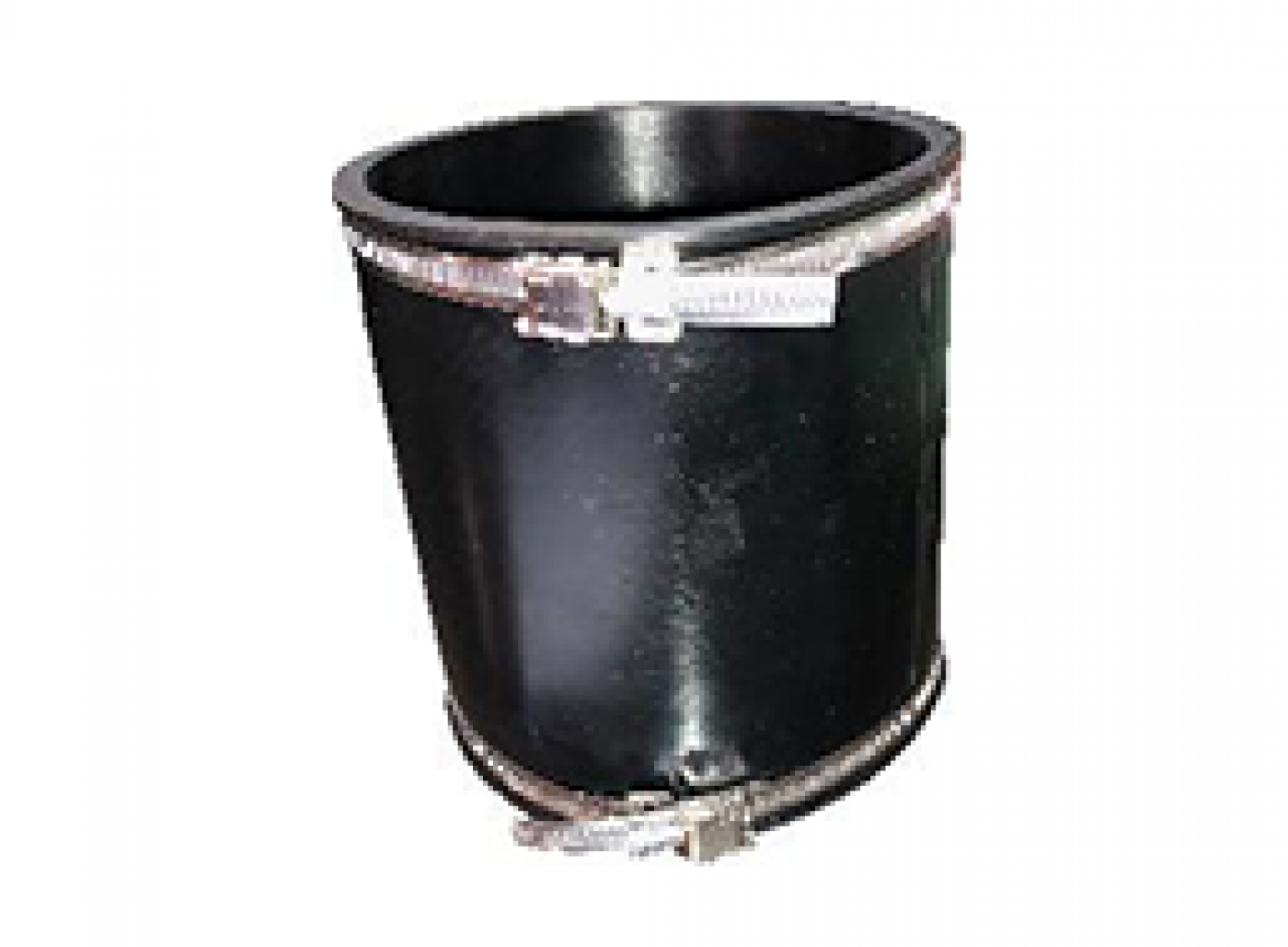

Neoprene Wrap-on Sleeve

Neoprene Bellow for Rainwater

EPDM Round Bellow for Bus Duct

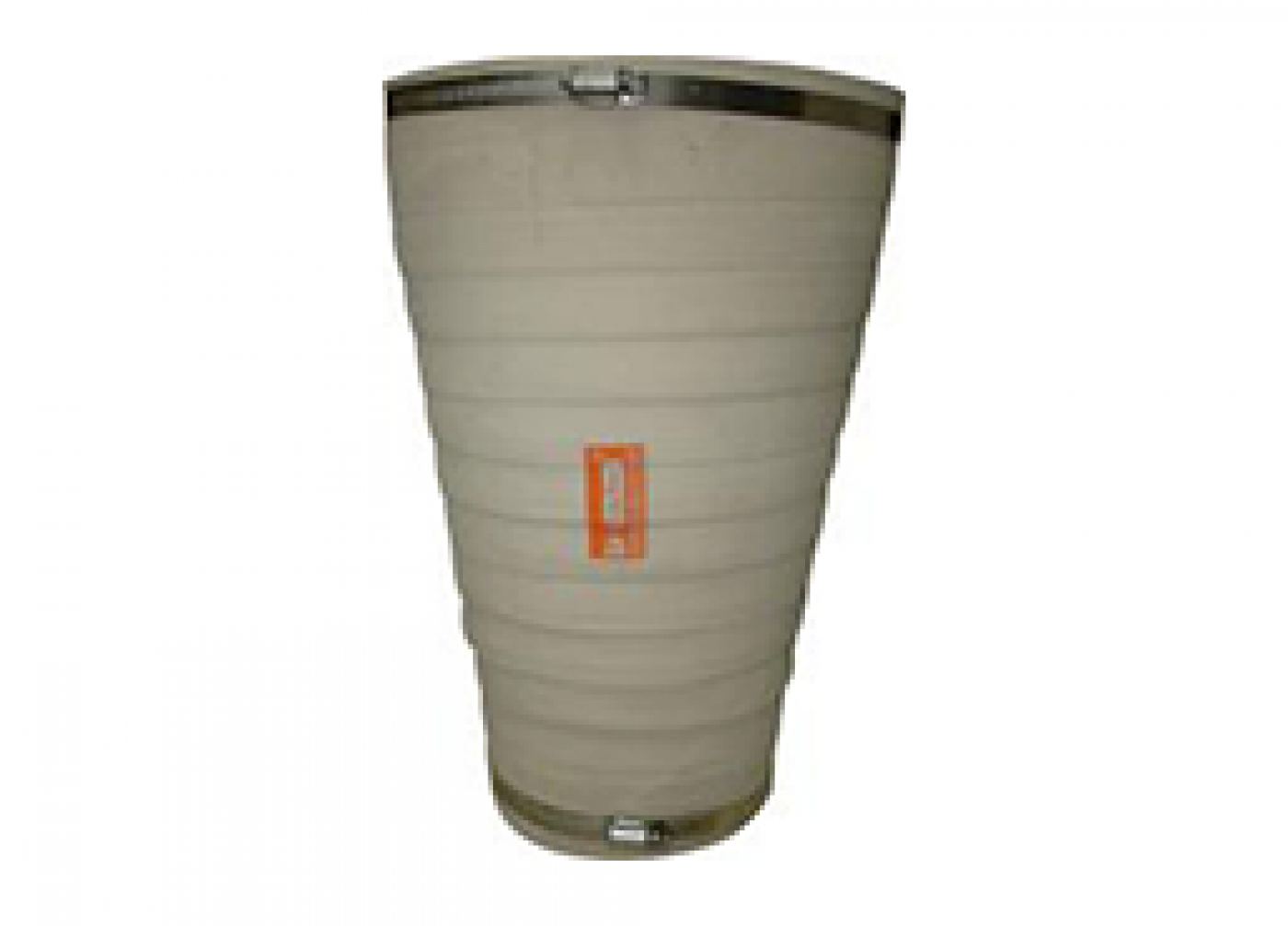

Neoprene Sleeves for Pipe Risers

Neoprene Sleeves for Pipe Risers

Hinged Bellow Assembly

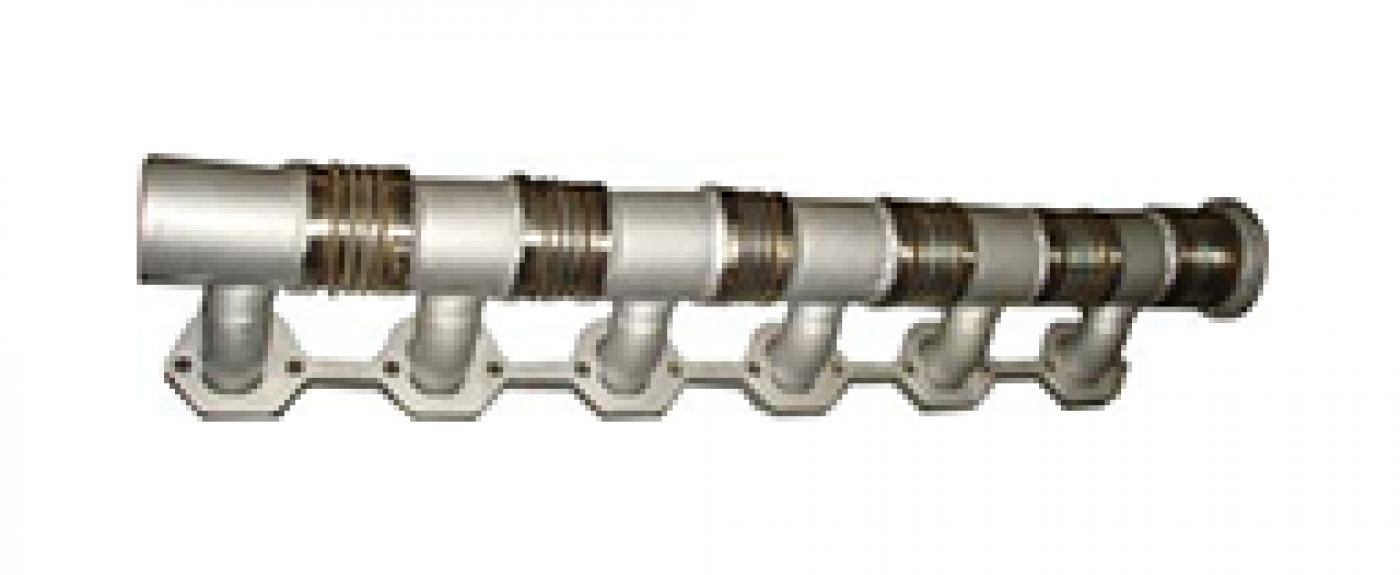

Exhaust Manifold Bellow

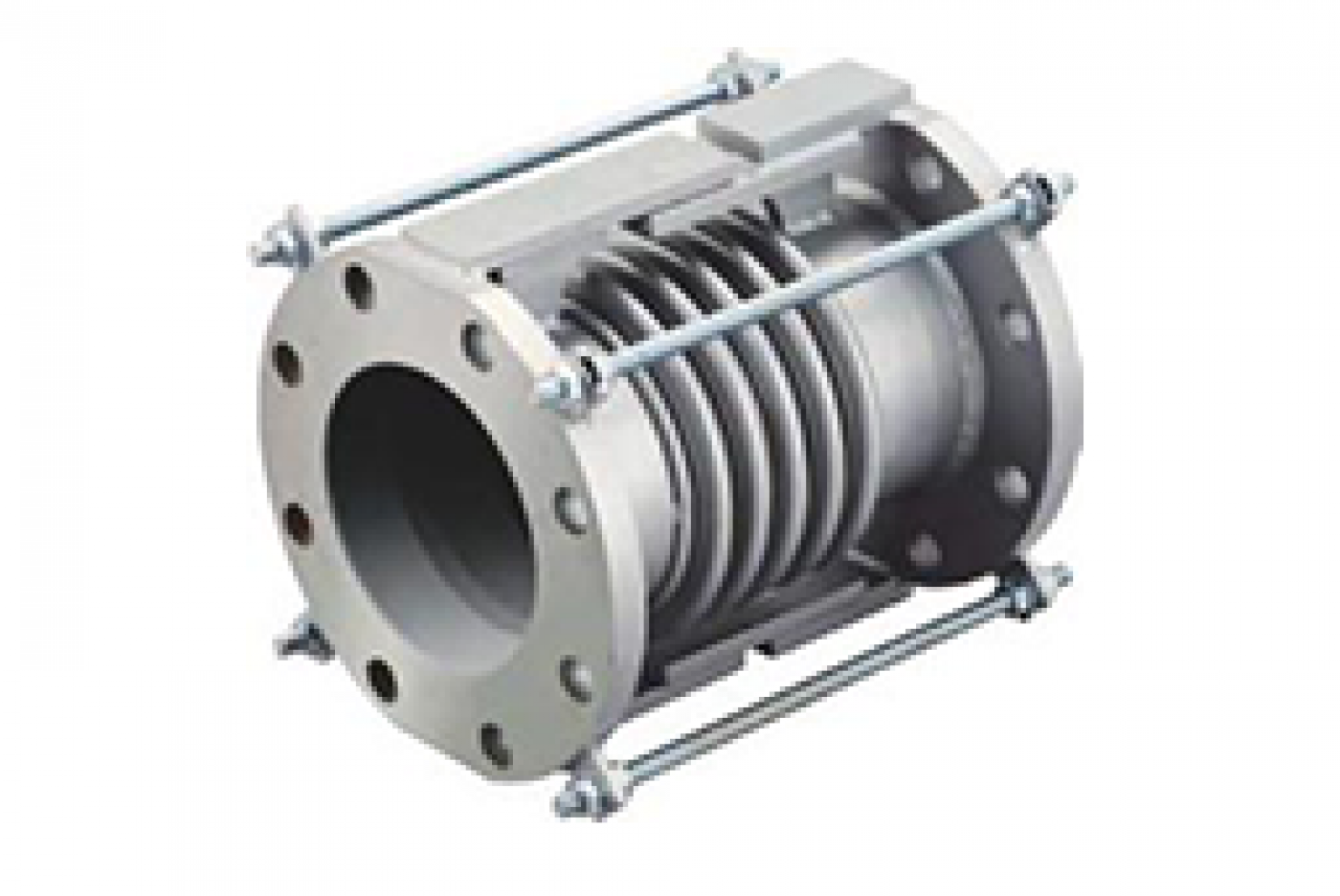

Pressure Balanced Bellows

Genset Exhaust Bellows

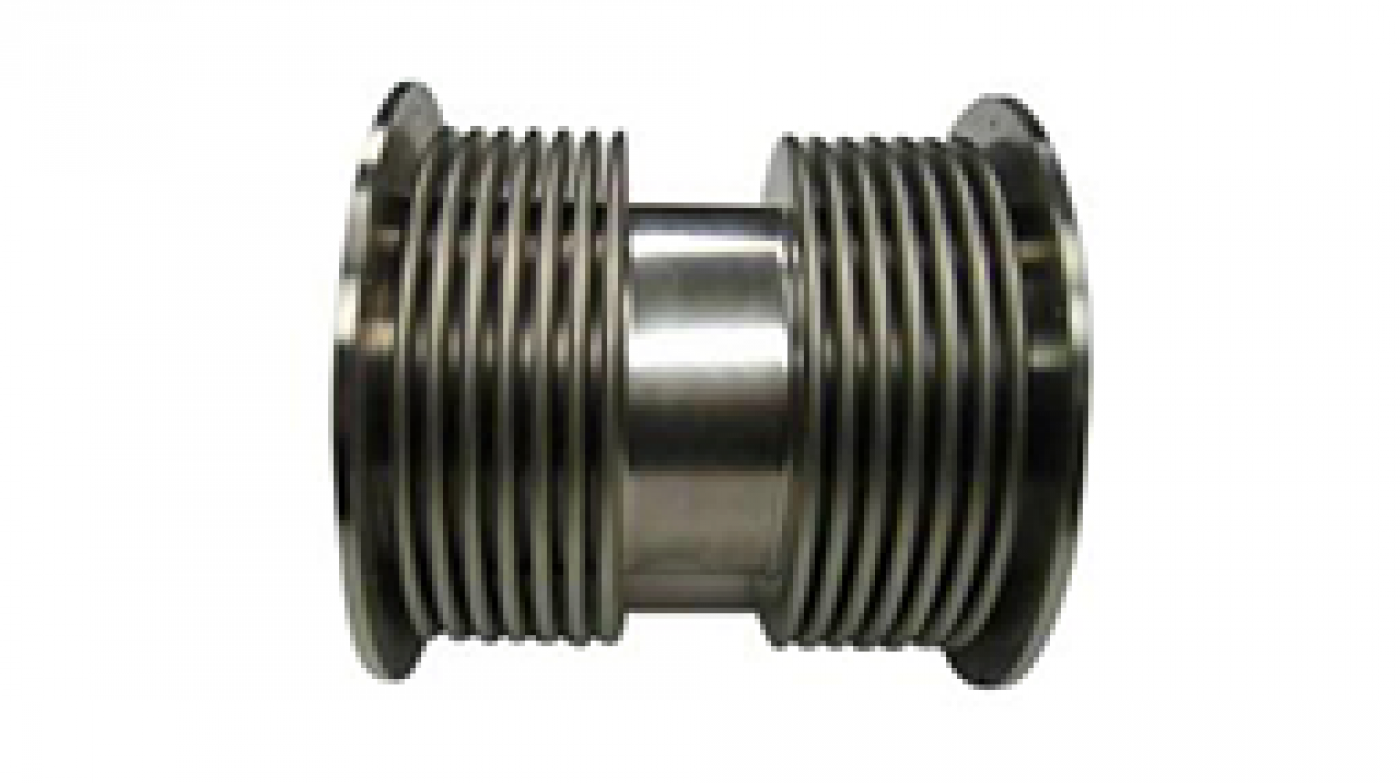

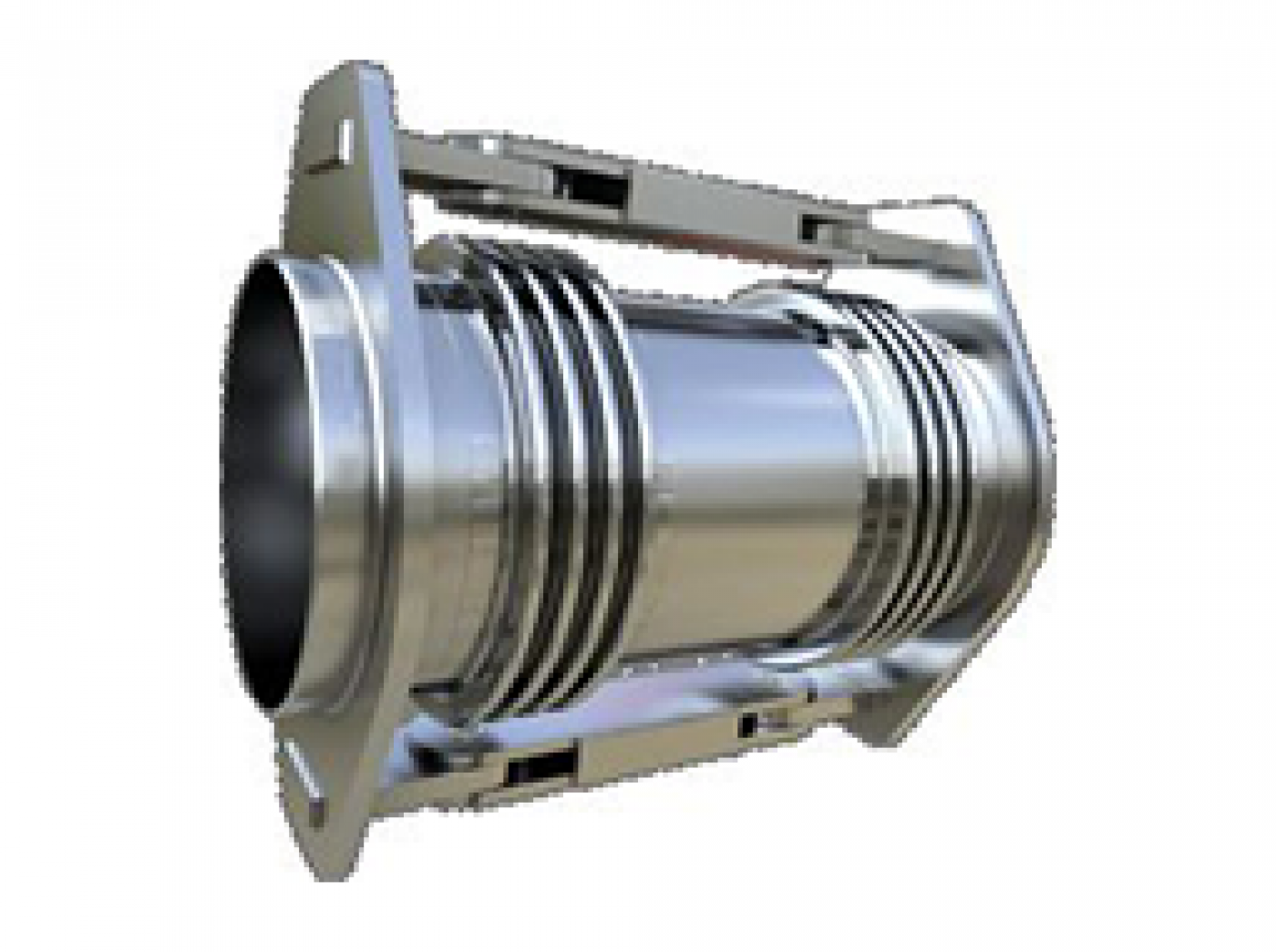

Universal Bellow

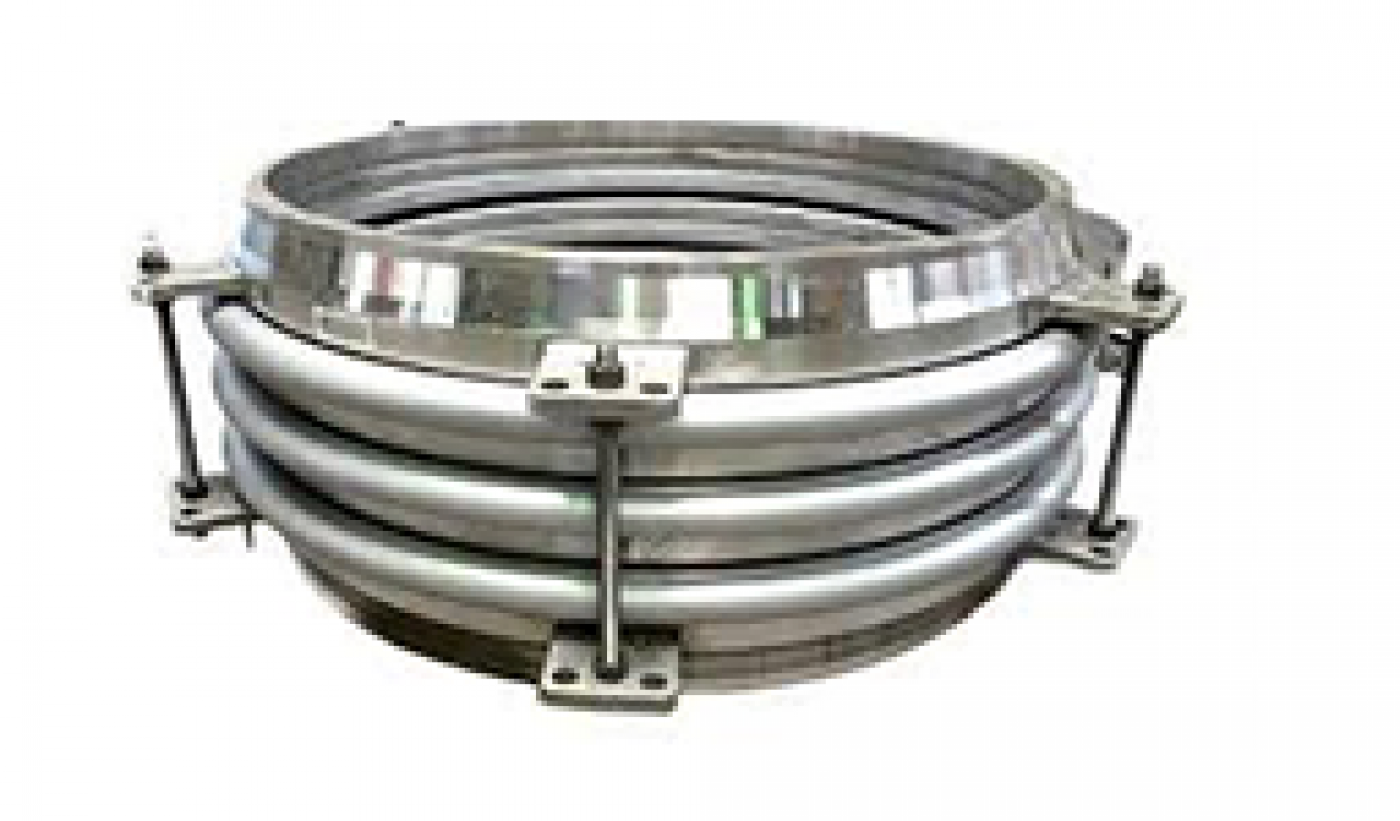

Toroidal Expansion Bellows

Externally Pressurised Bellows

Exhaust Bellows

Gimbal Bellows Assembly

SS Bellow with Weld Ends Tied

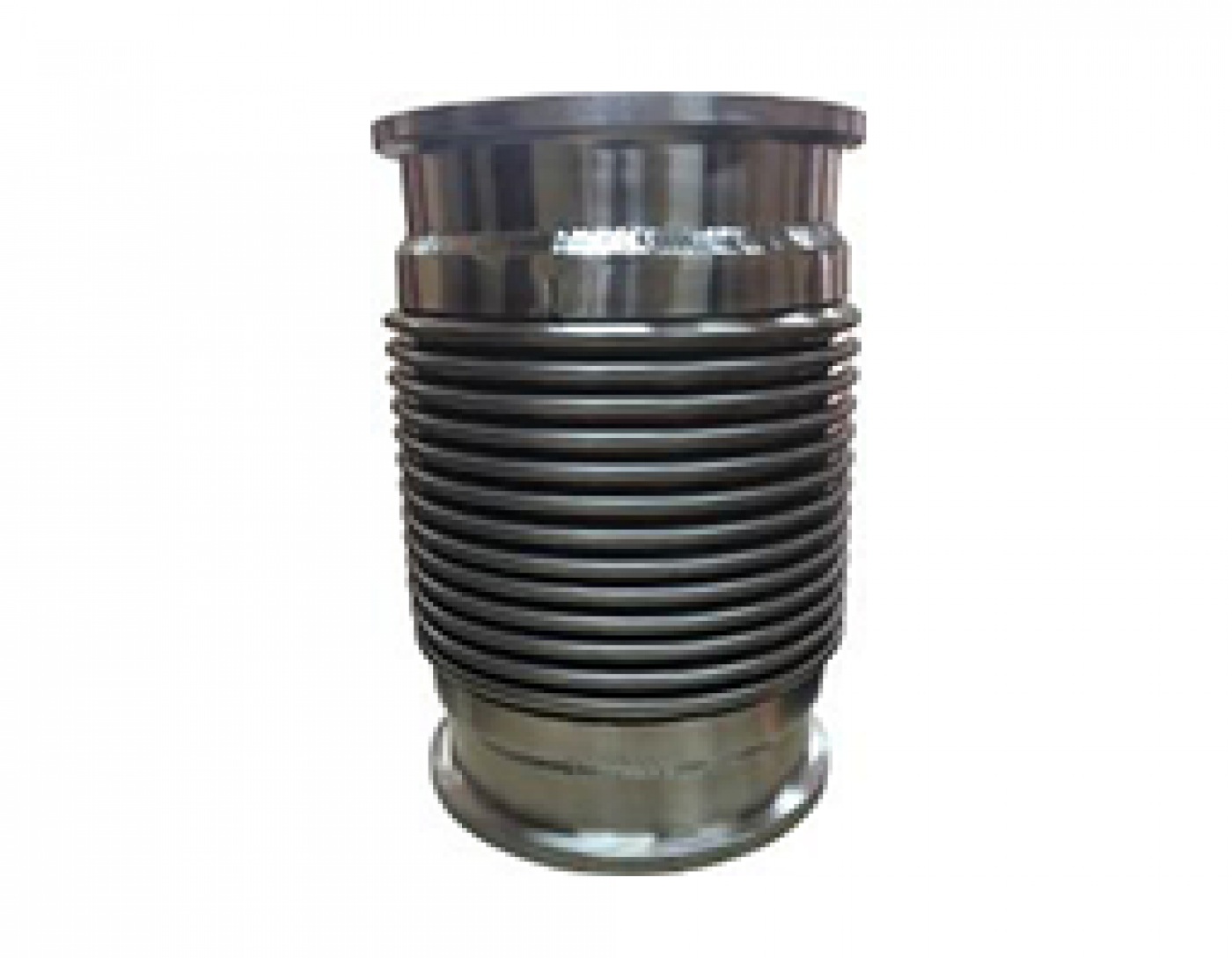

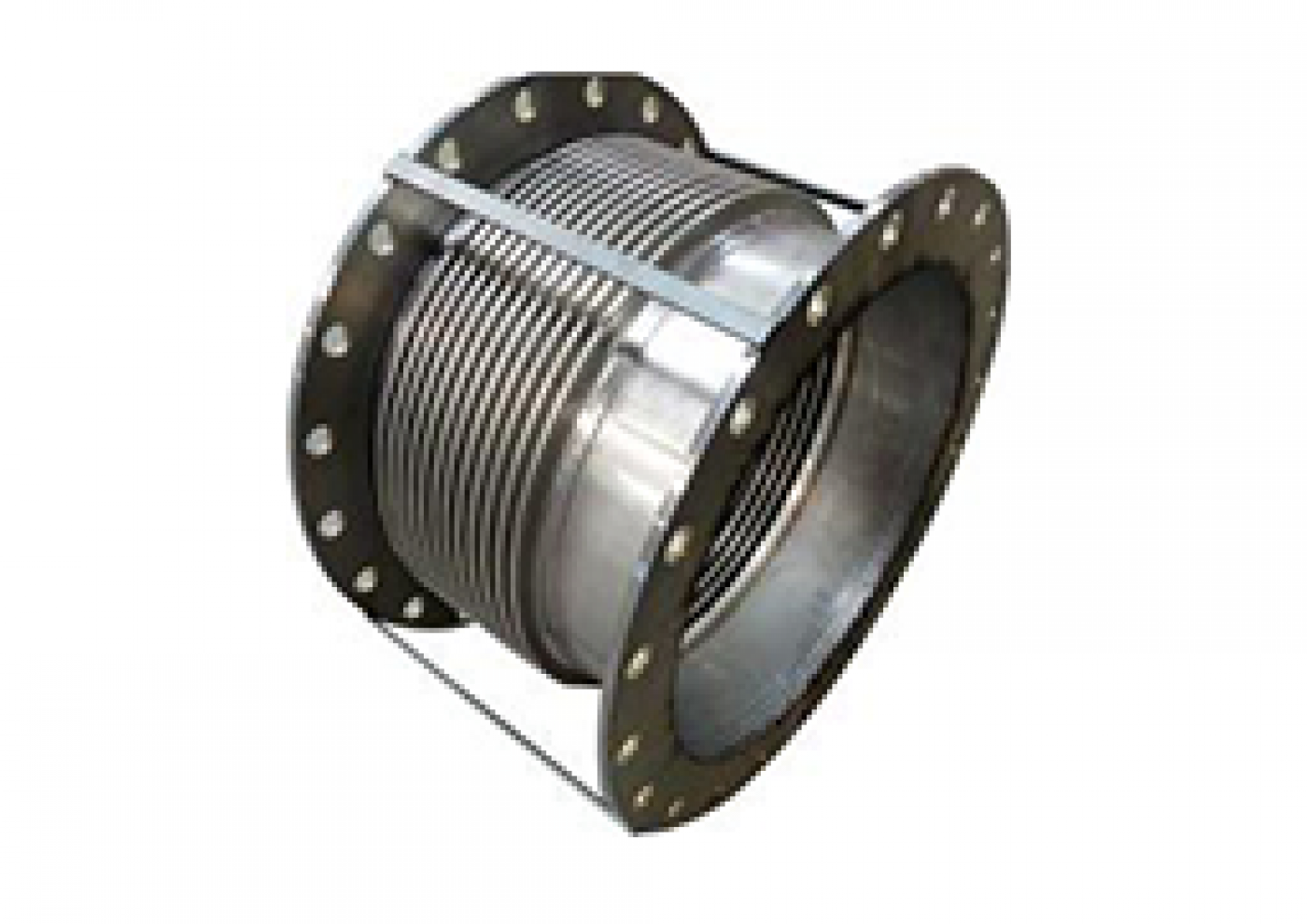

Single Axial Bellow

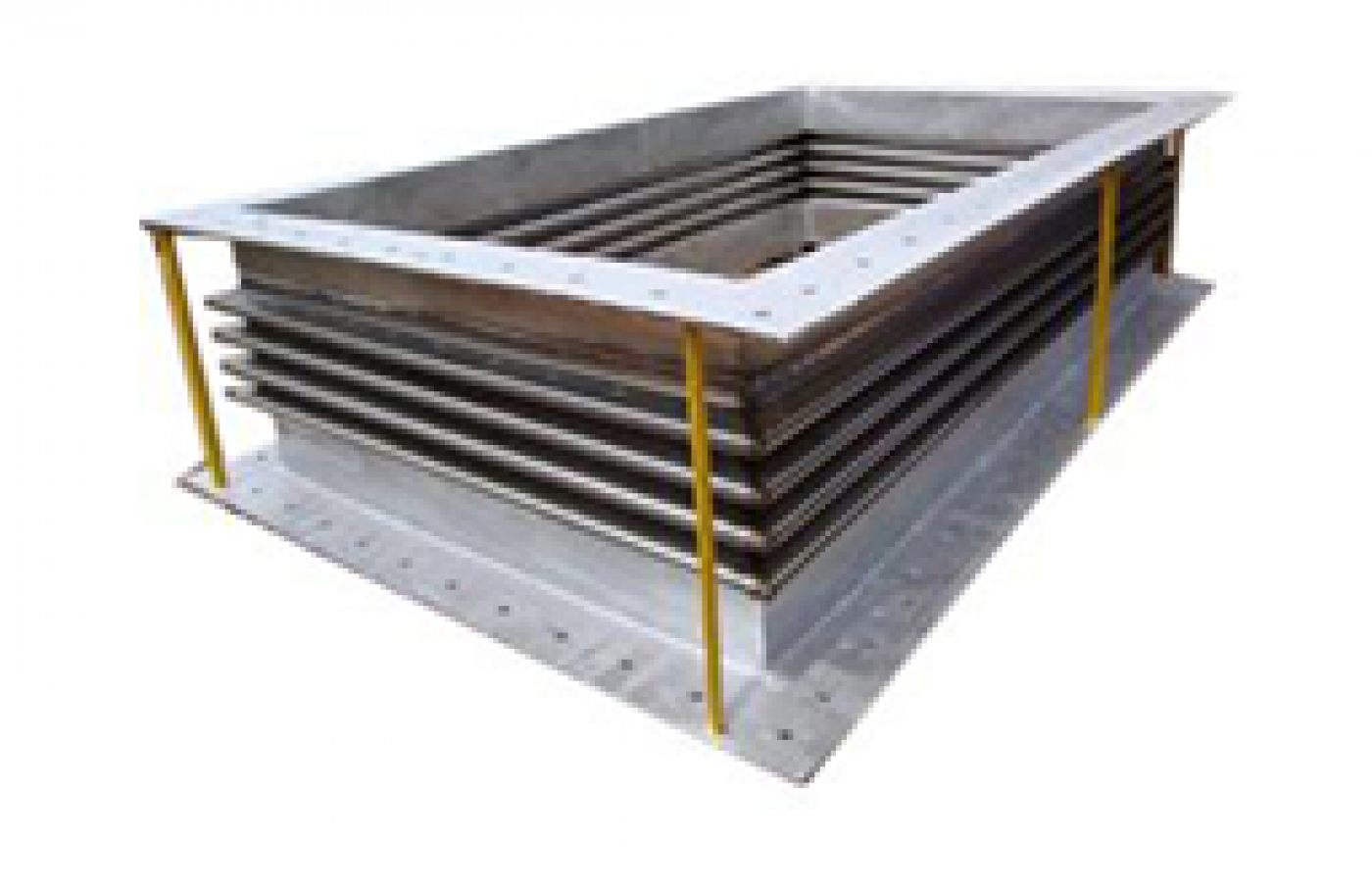

SS Rectangular Bellows

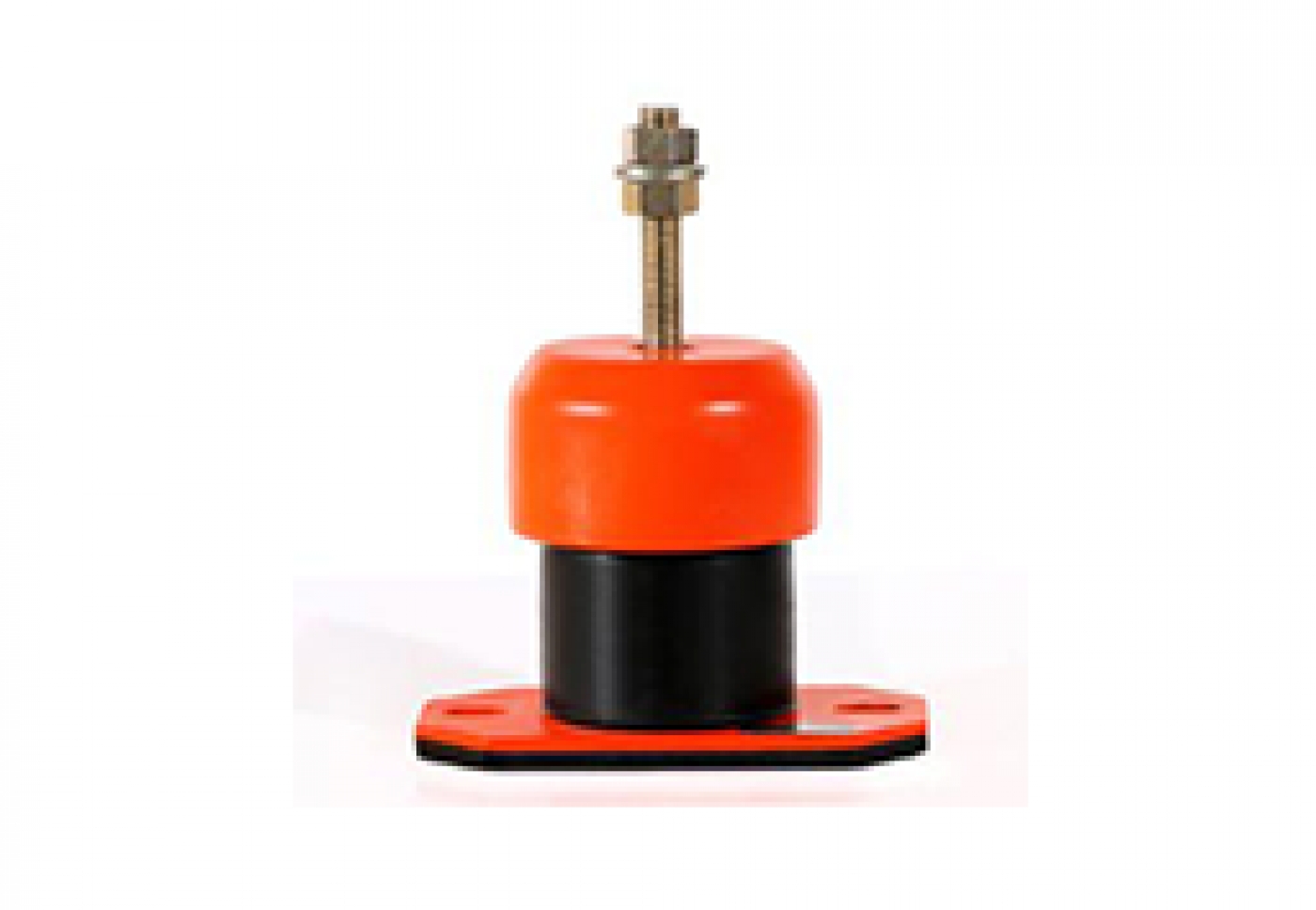

Cup Spring Mount

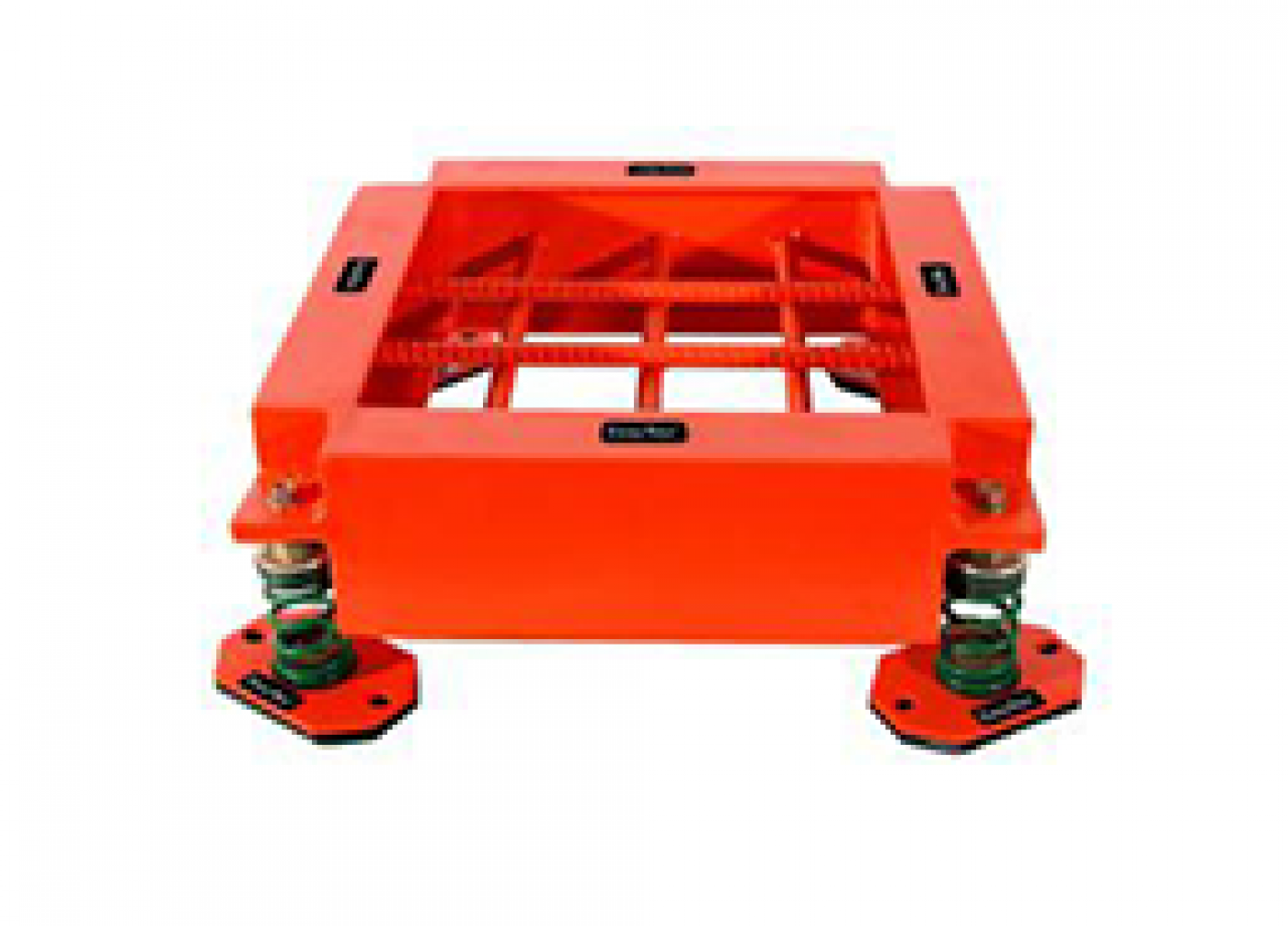

Inertia Base

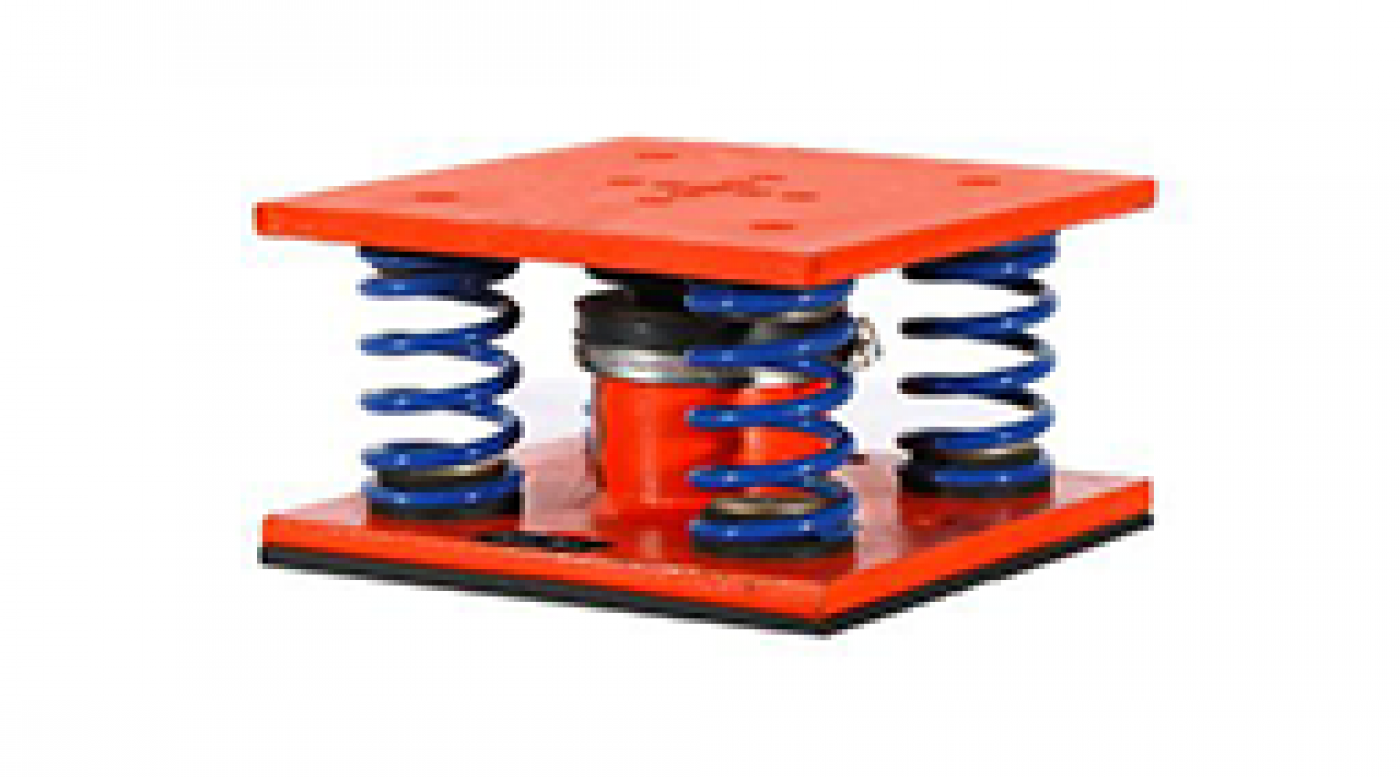

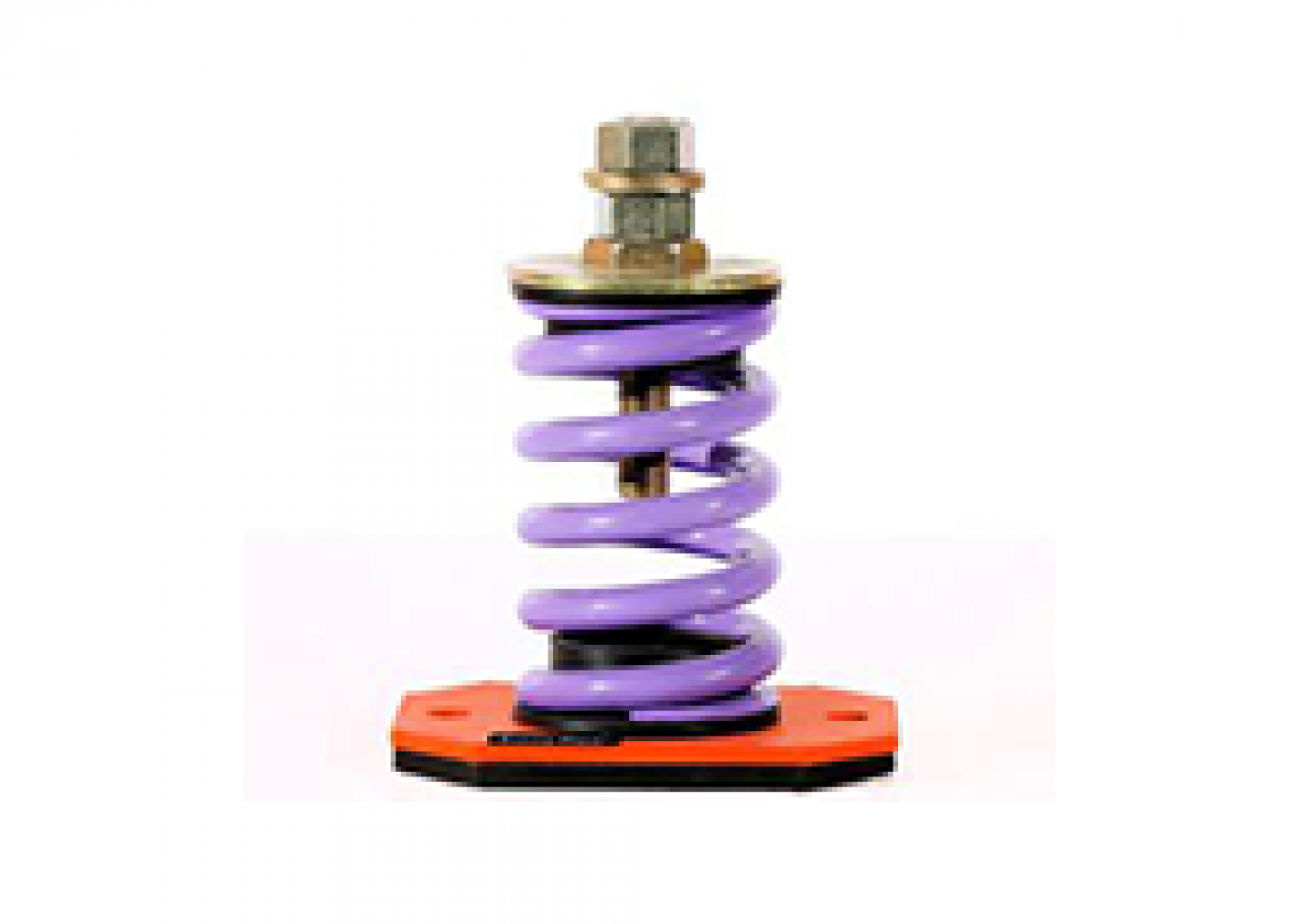

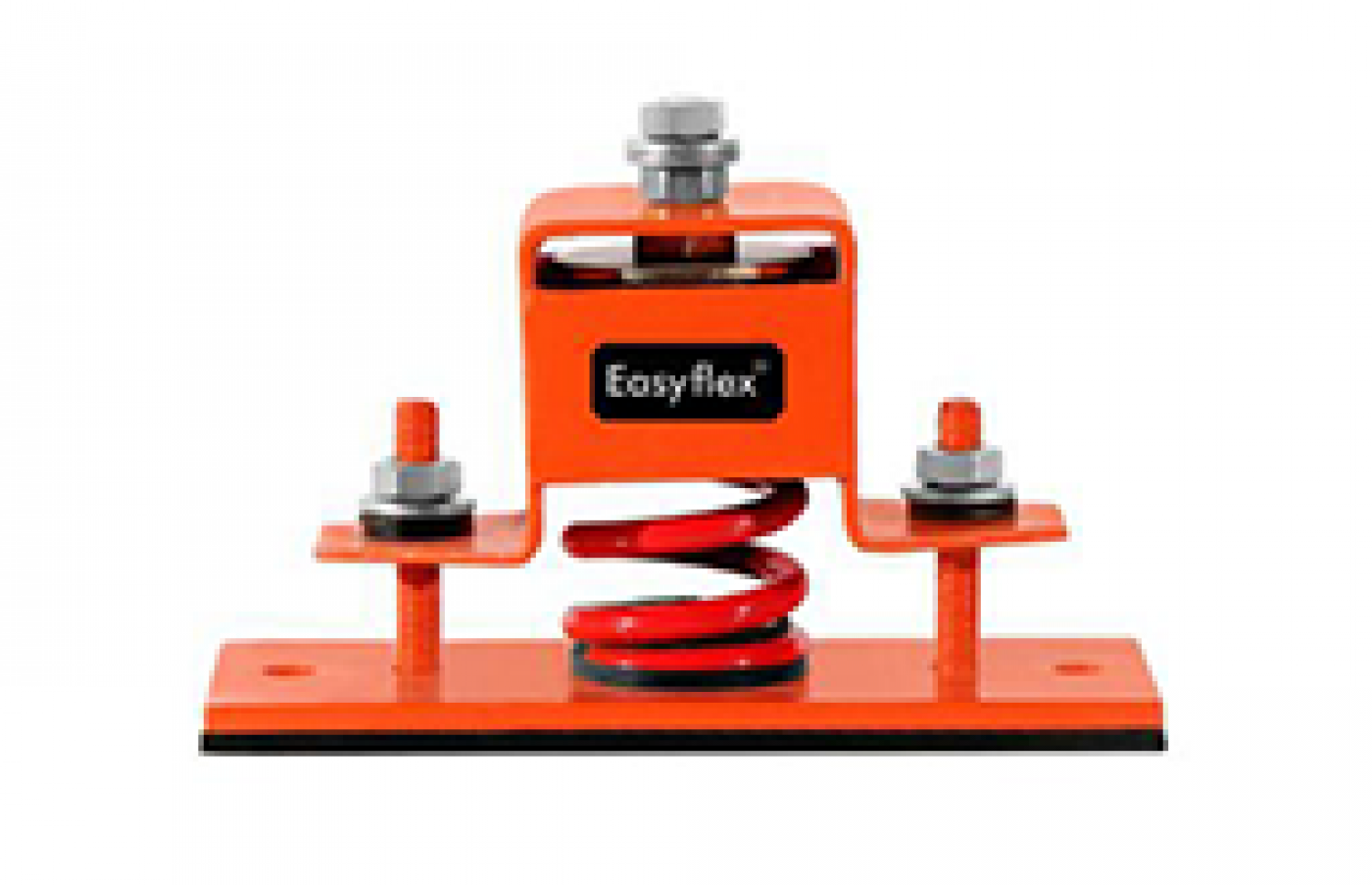

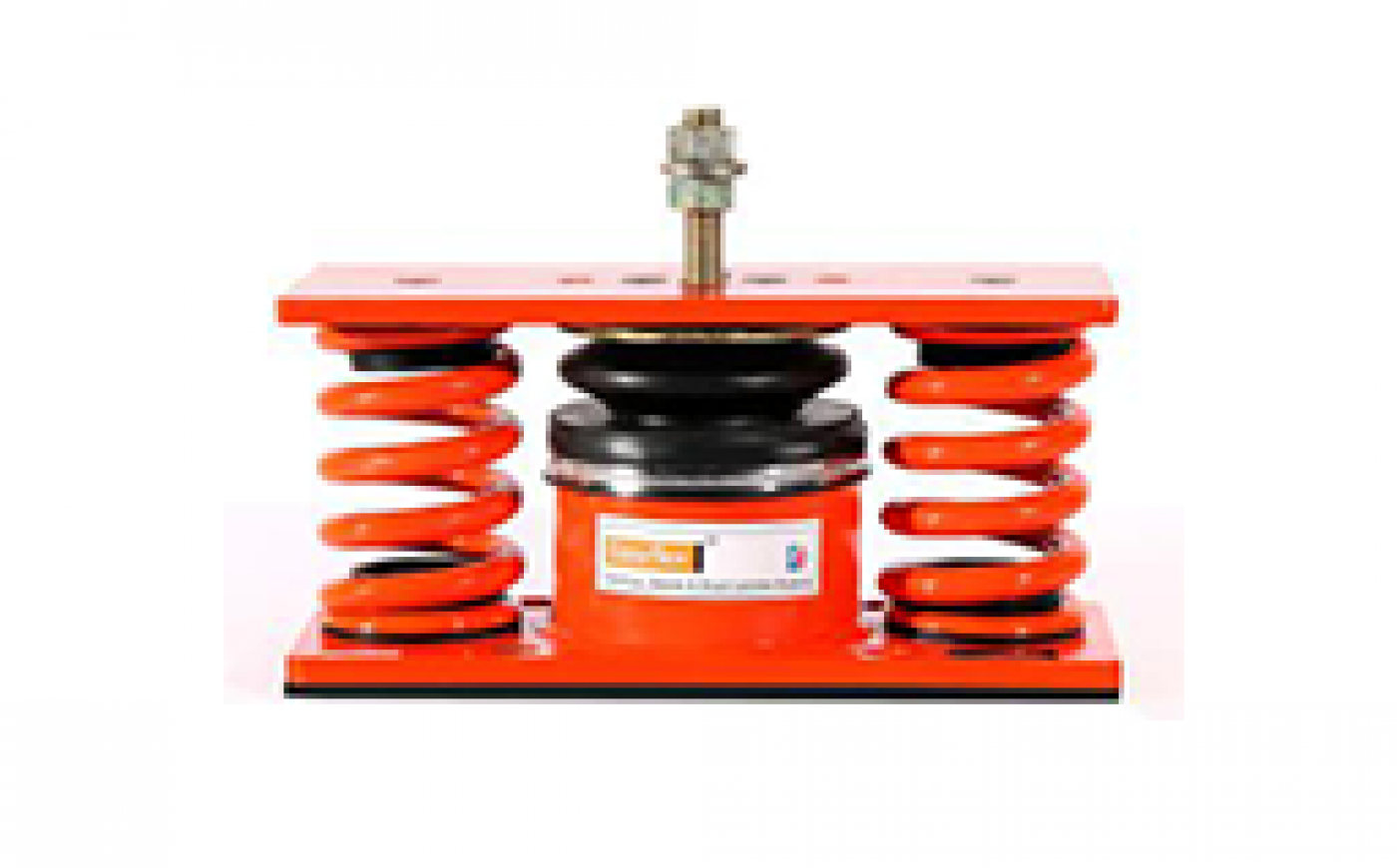

Open Spring Mount

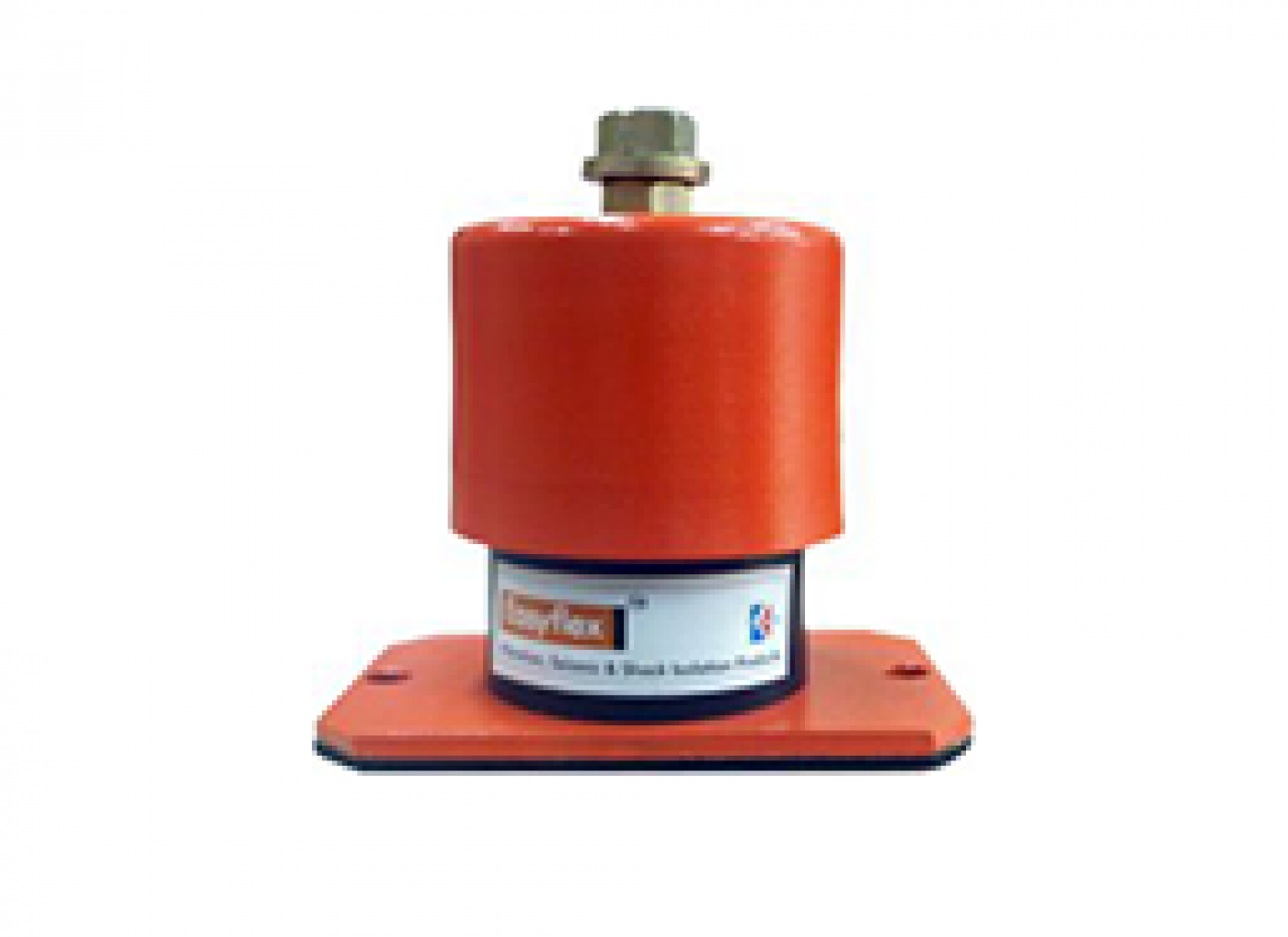

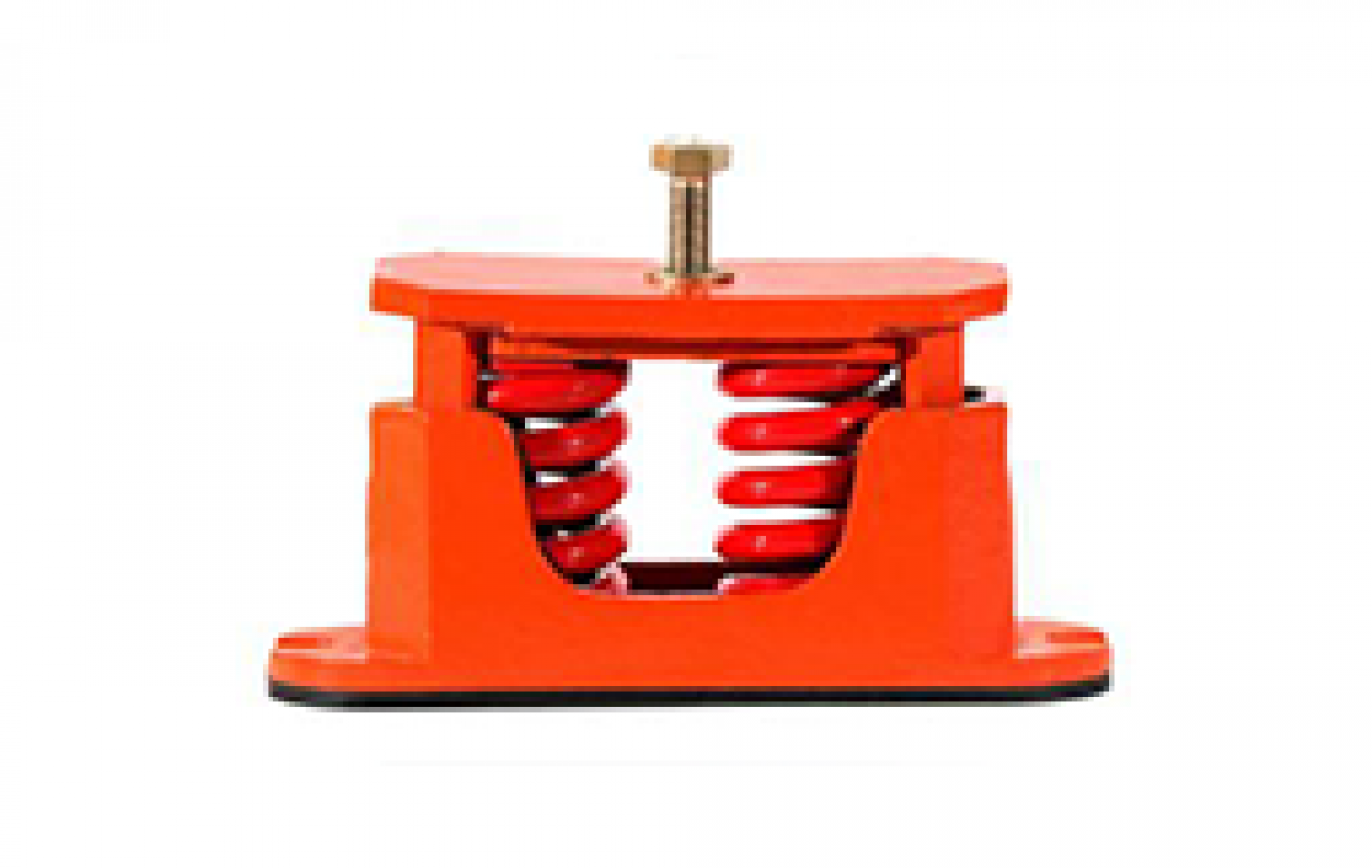

Enclosed Spring Isolator

Cased Spring Mount

Closed Spring Isolator

Spring Viscous Damper

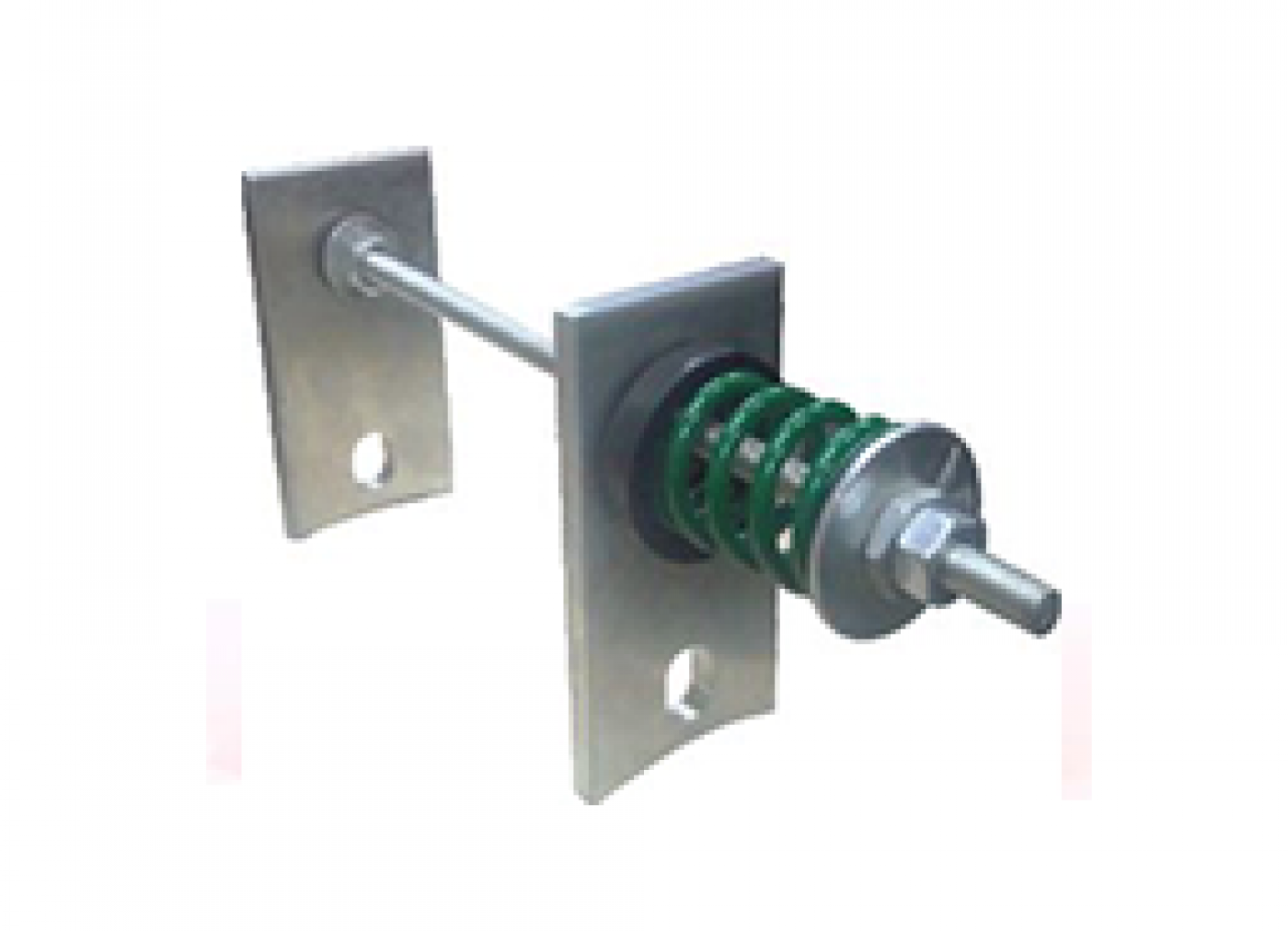

Thrust Restraint

SS Enclosed Spring Isolator

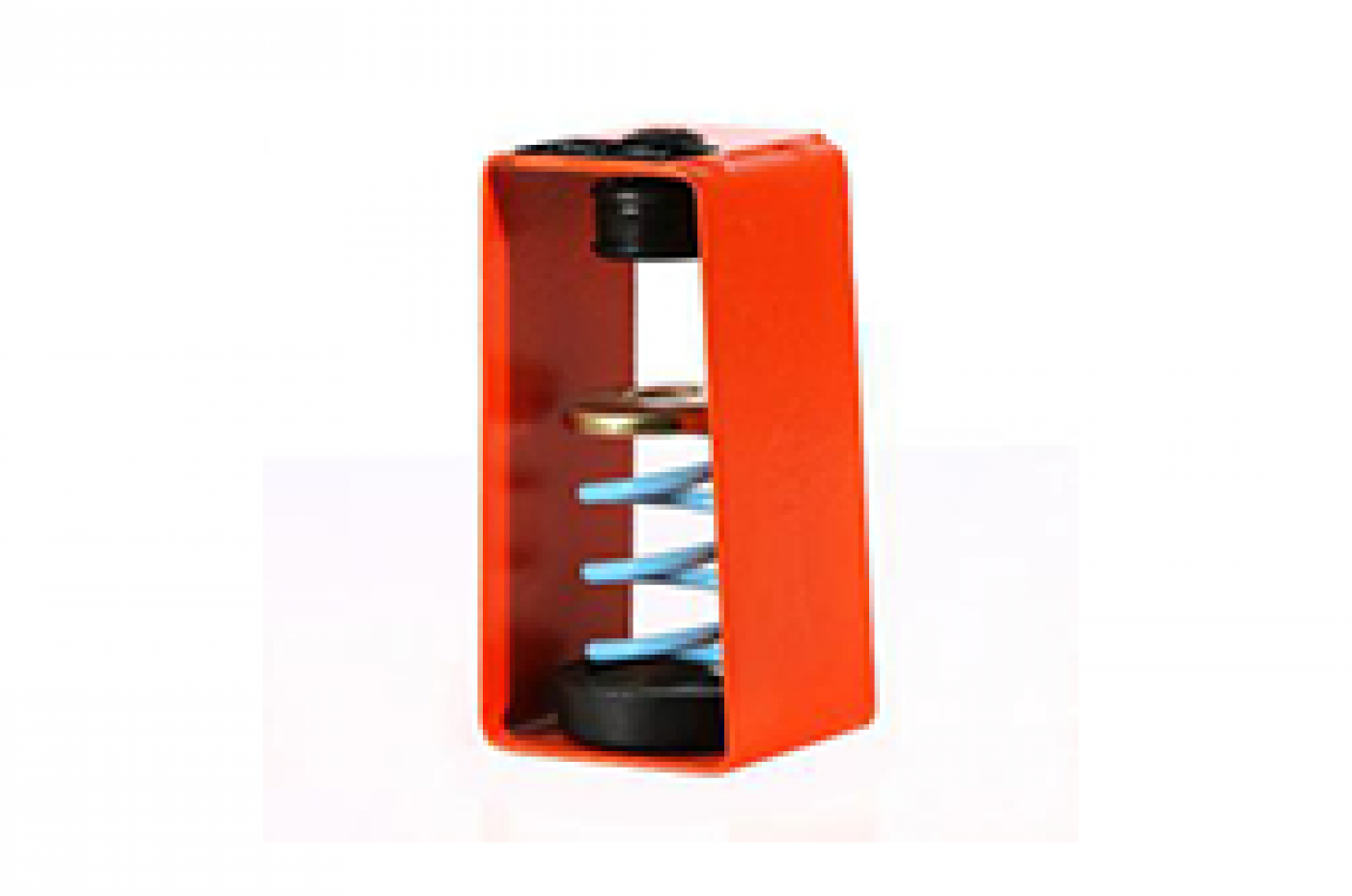

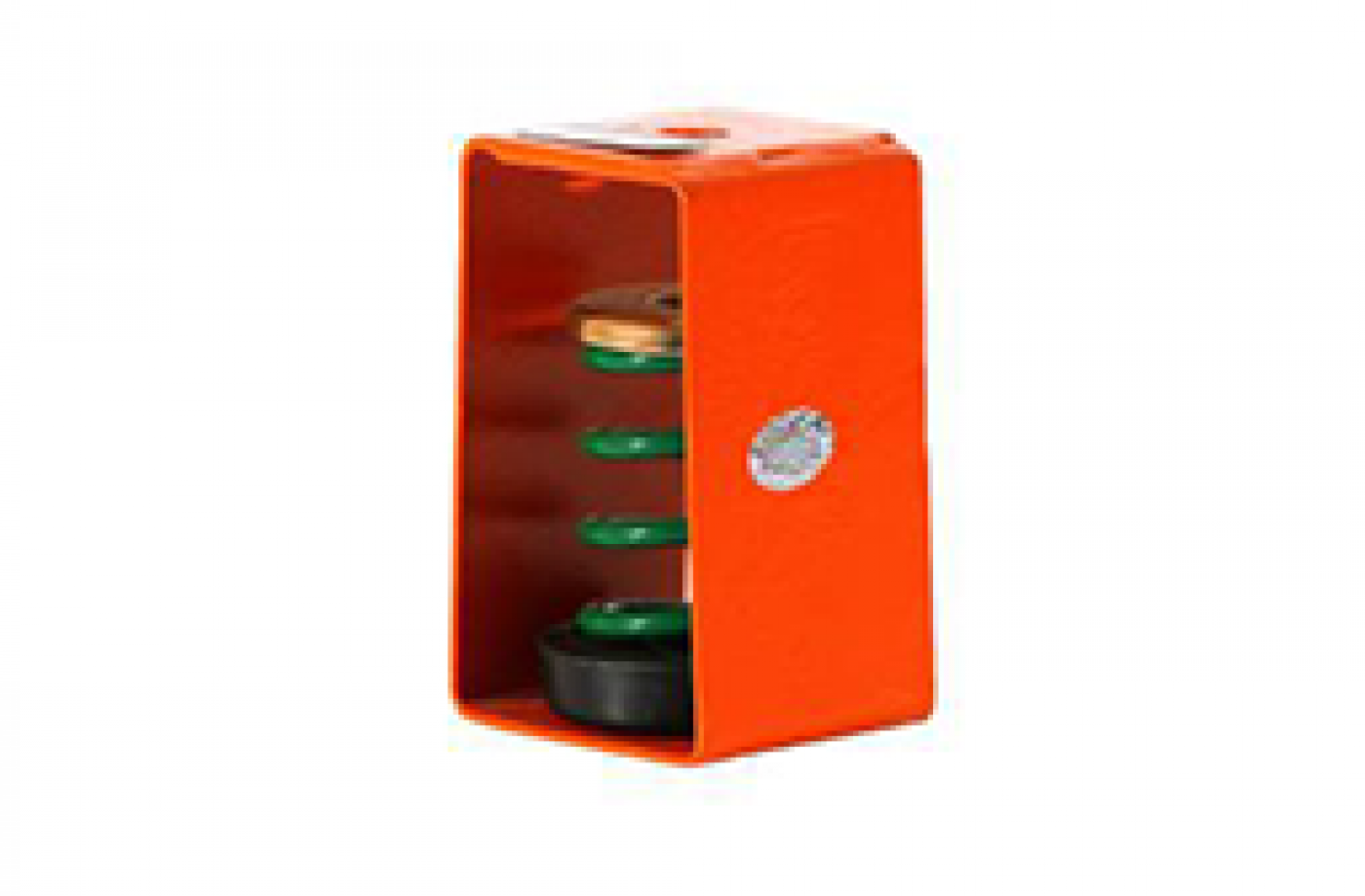

Spring Hanger

Neoprene Spring Hanger

High Temperature Spring Isolator

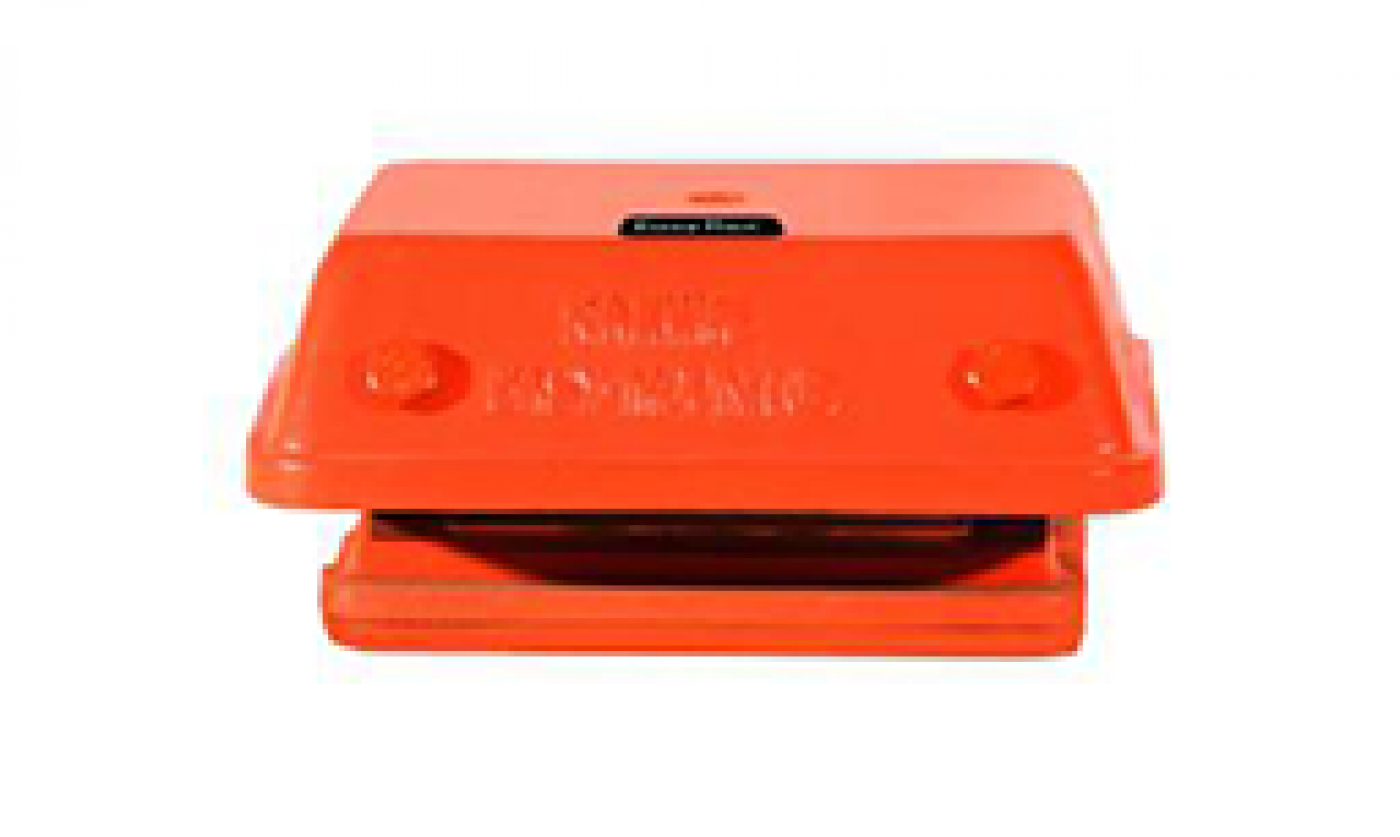

Easy Mount

Fail Safe Mount

Jack-up Mount

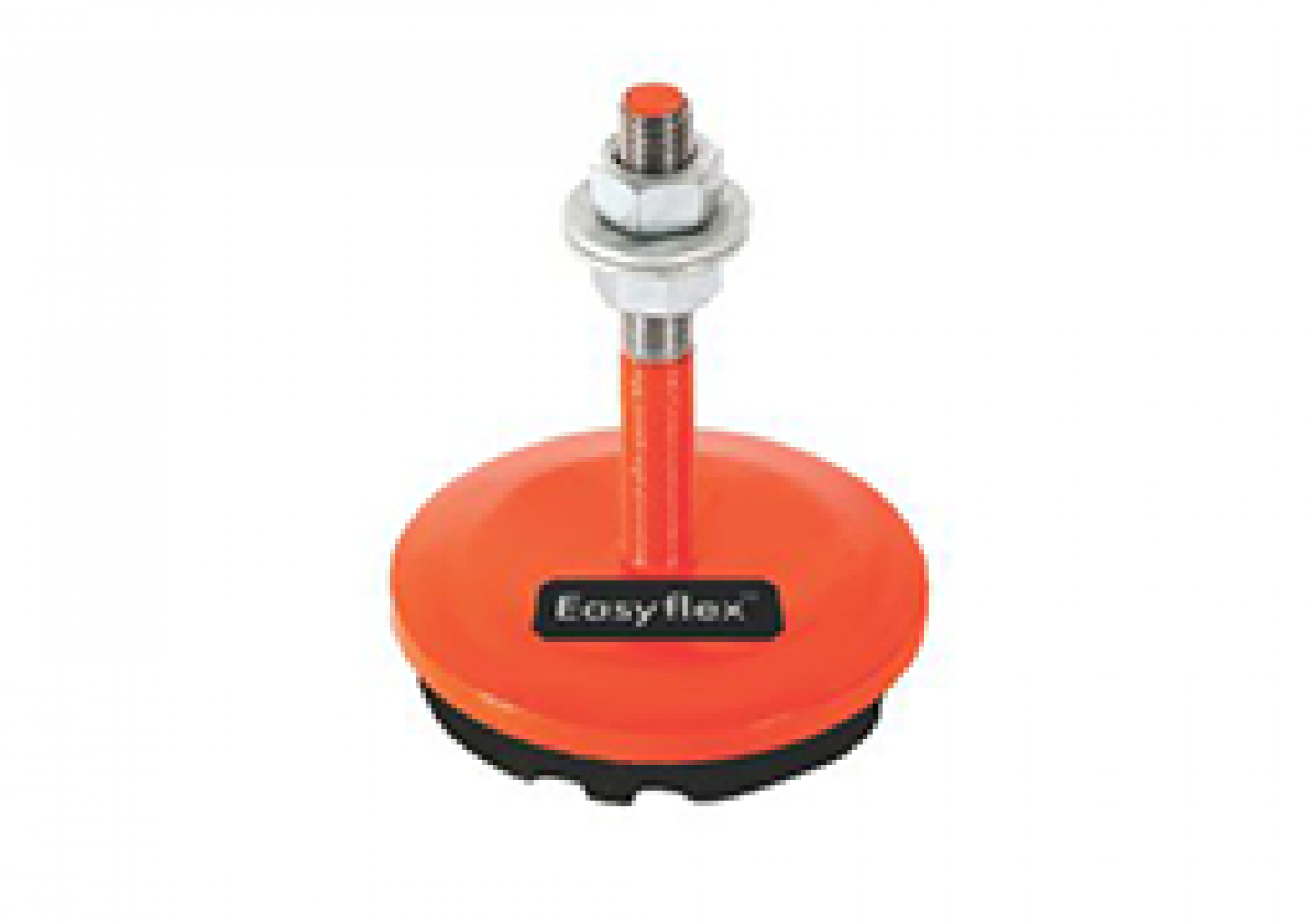

Level Mount

Turret Mount

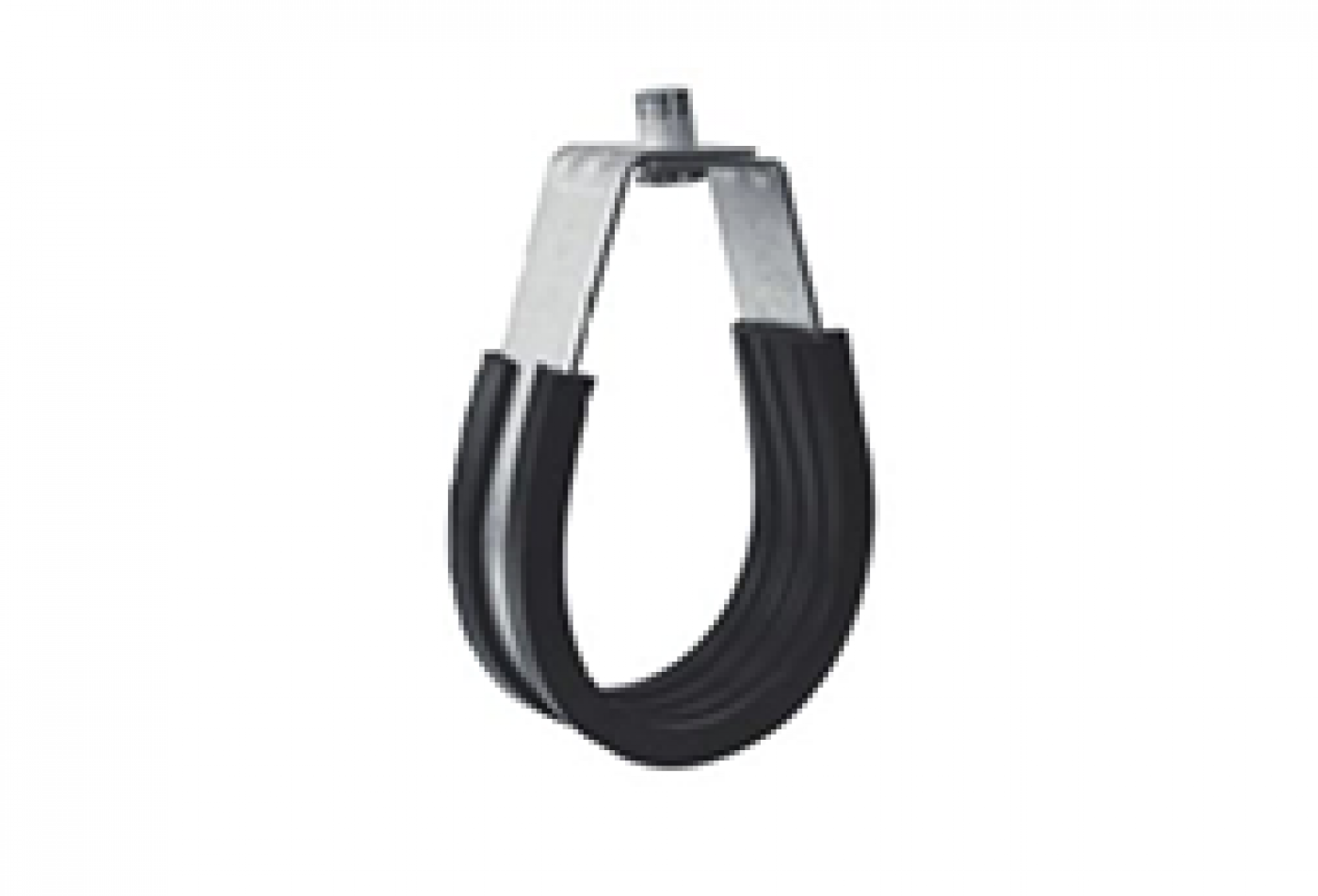

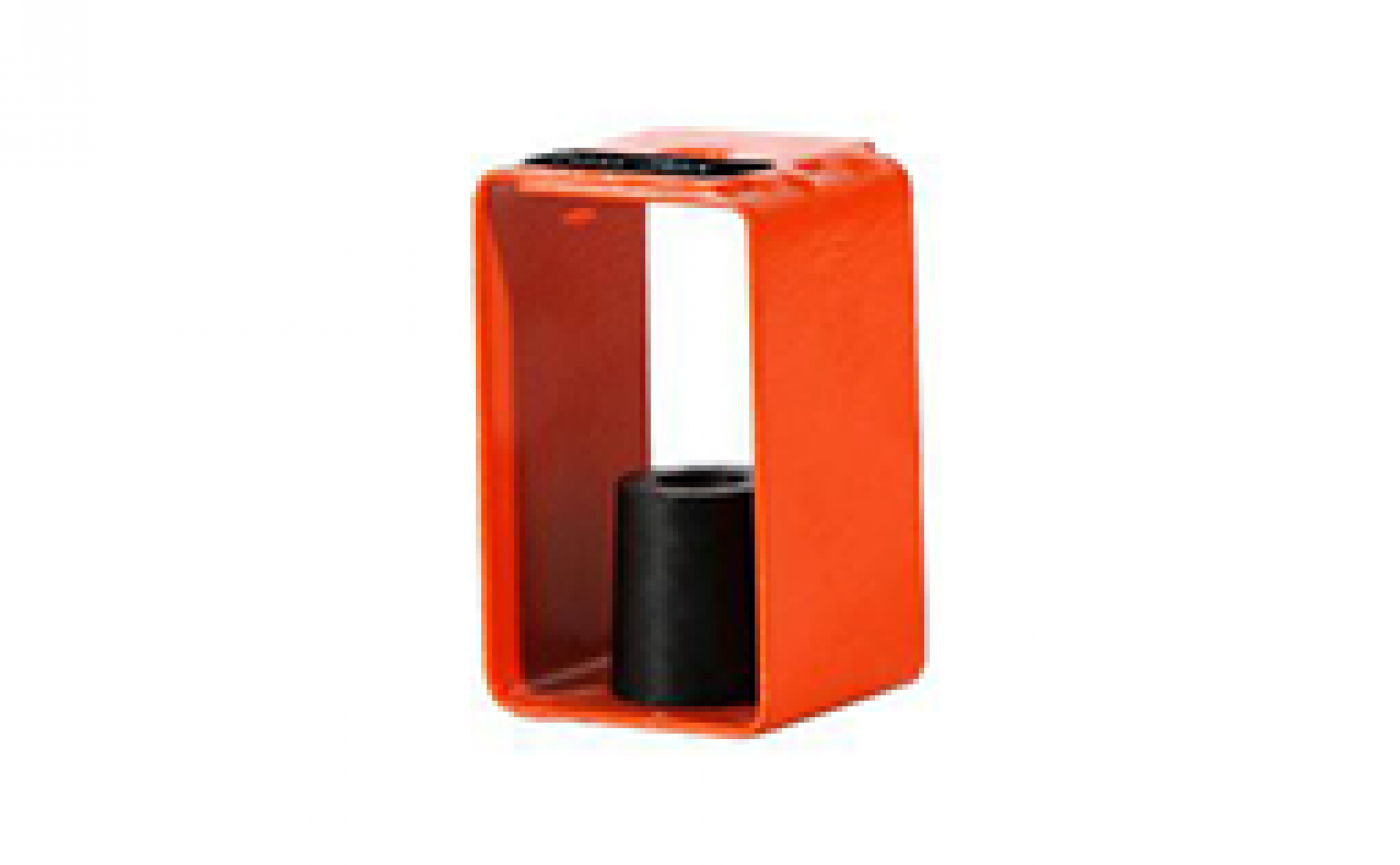

Neoprene Hanger

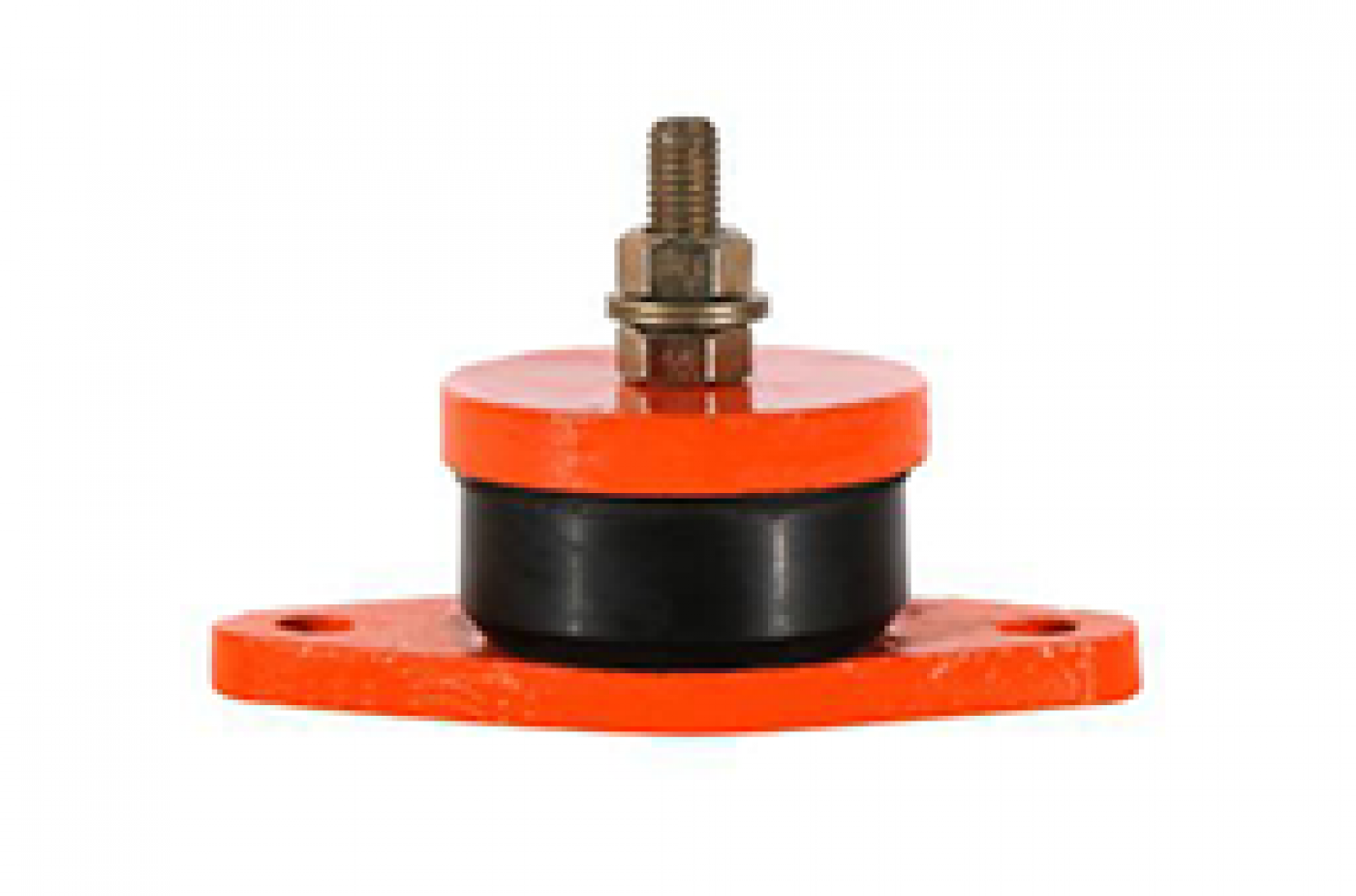

Round Mount

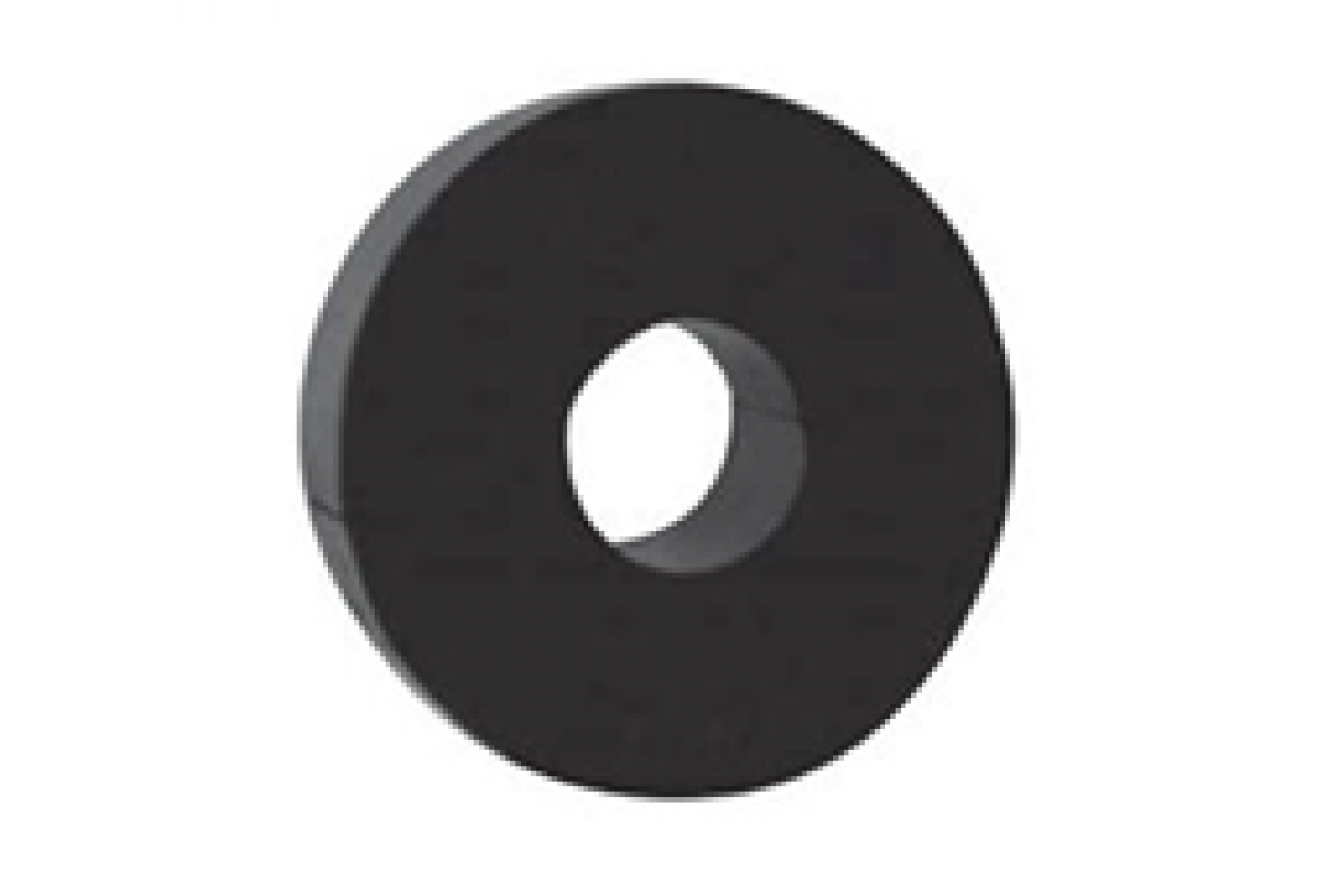

Neoprene Grommet Mount

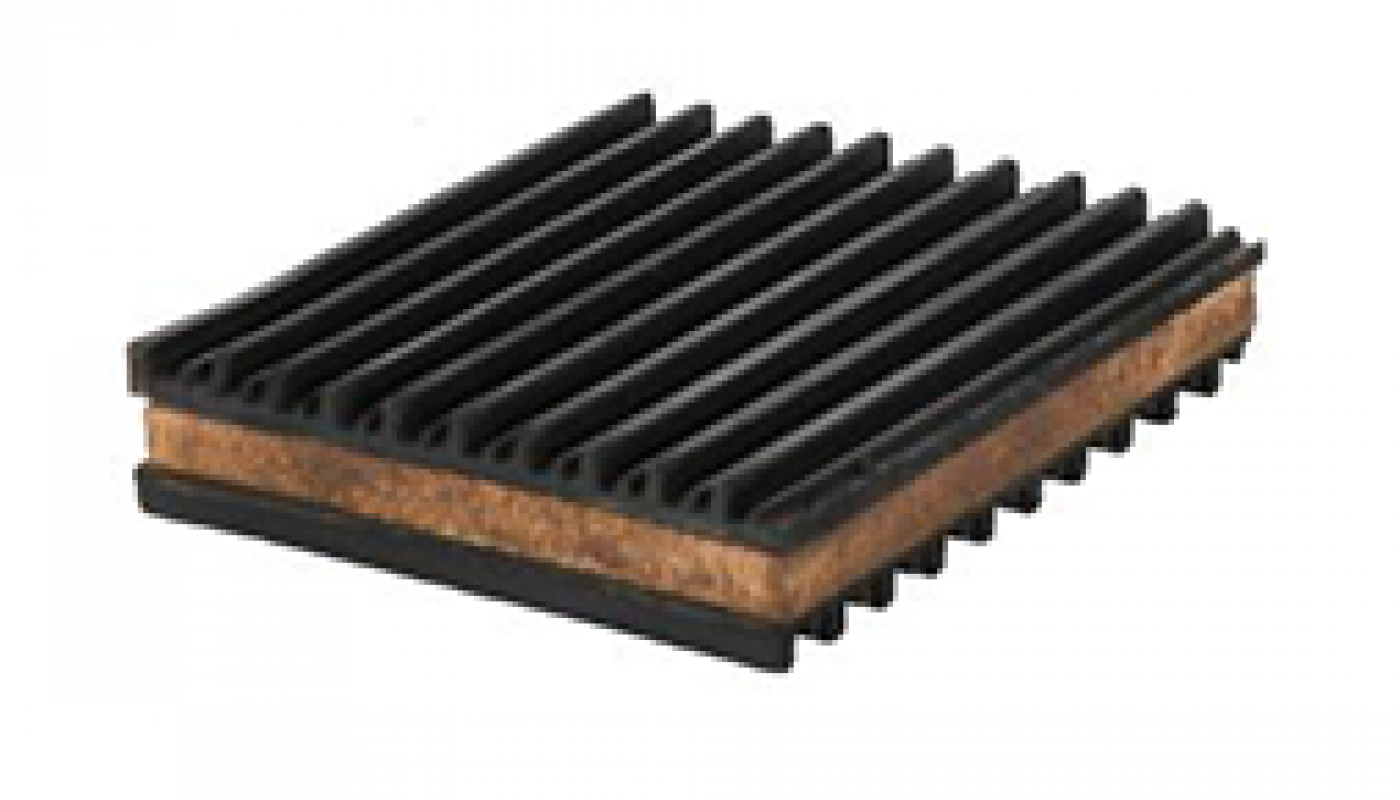

Cork Sandwich Pad

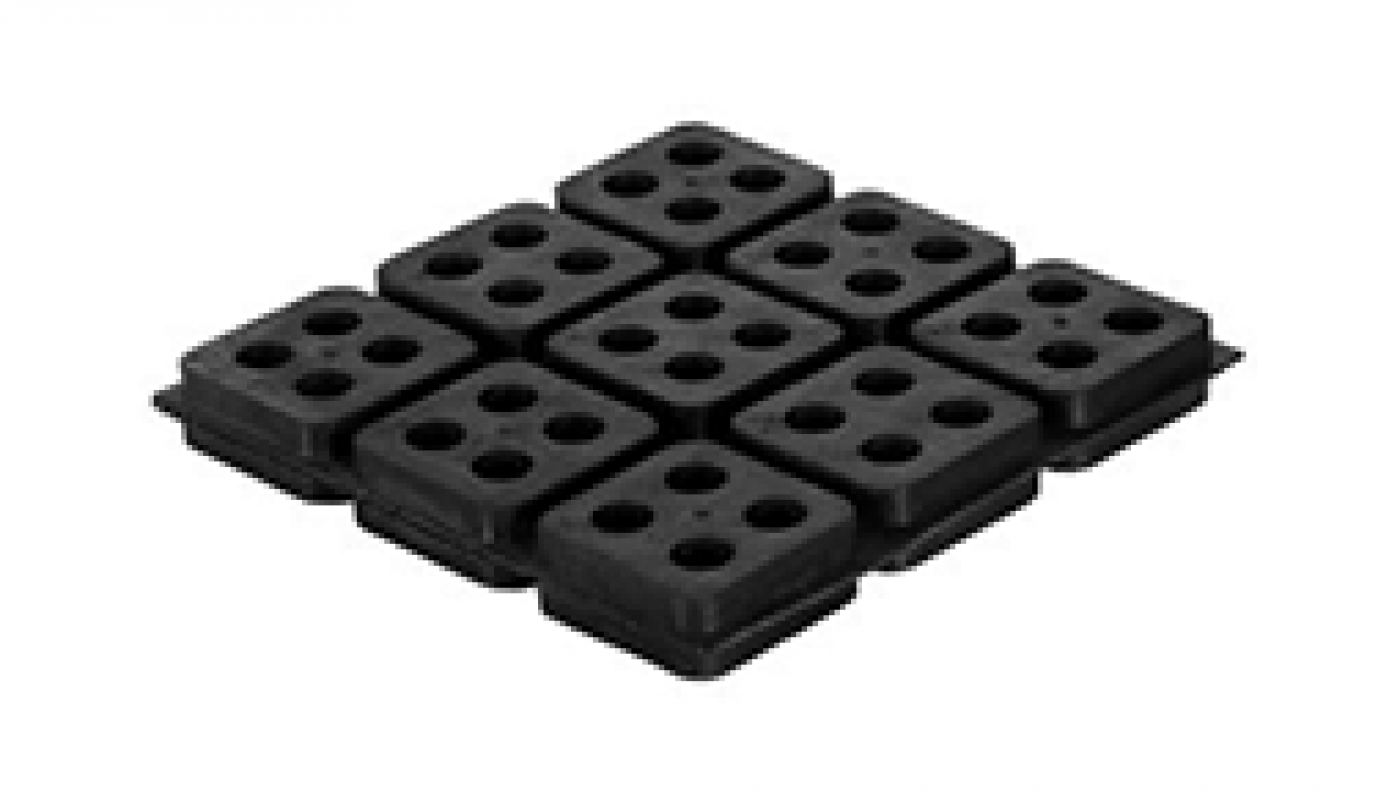

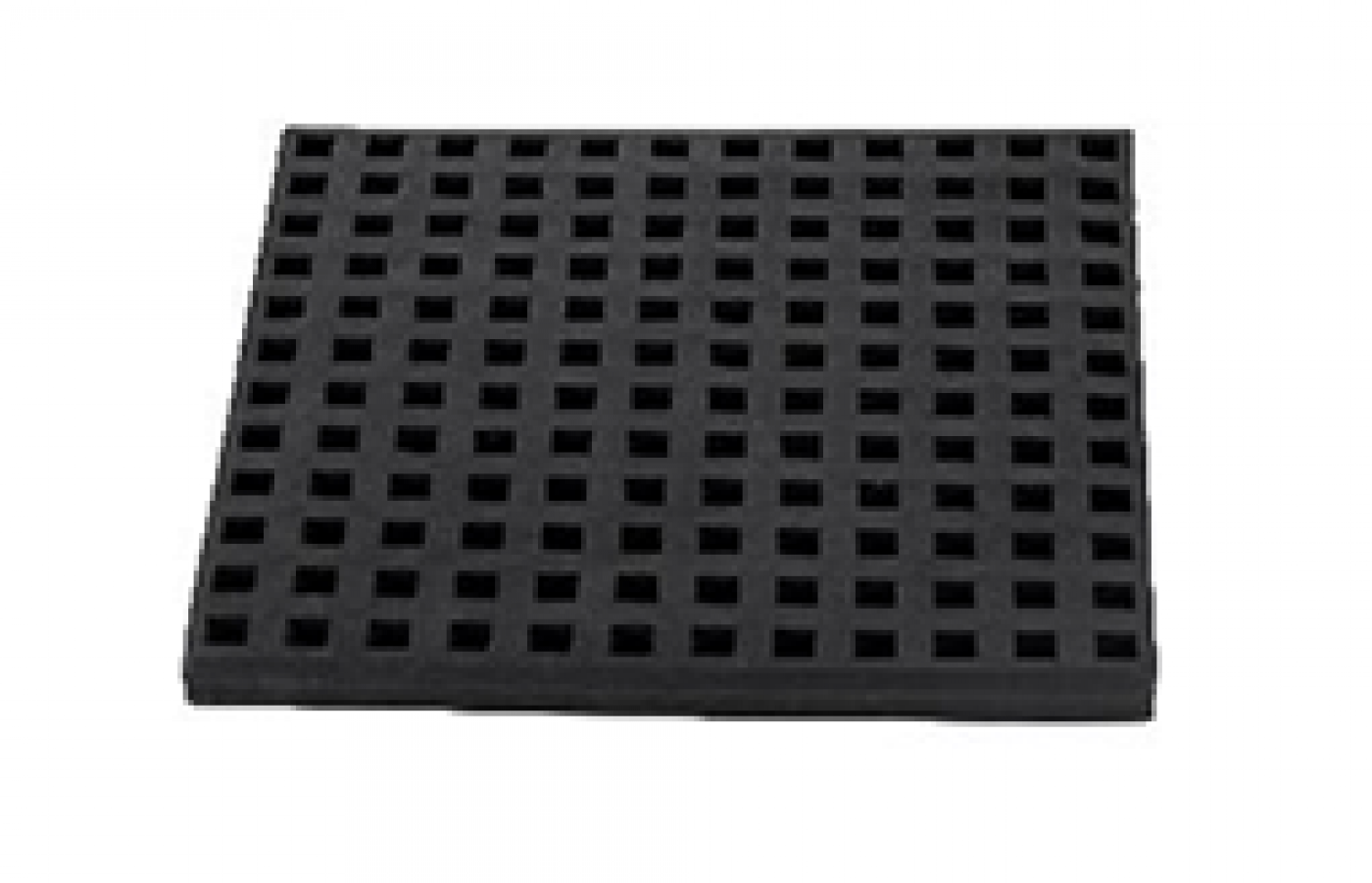

Waffle Pad

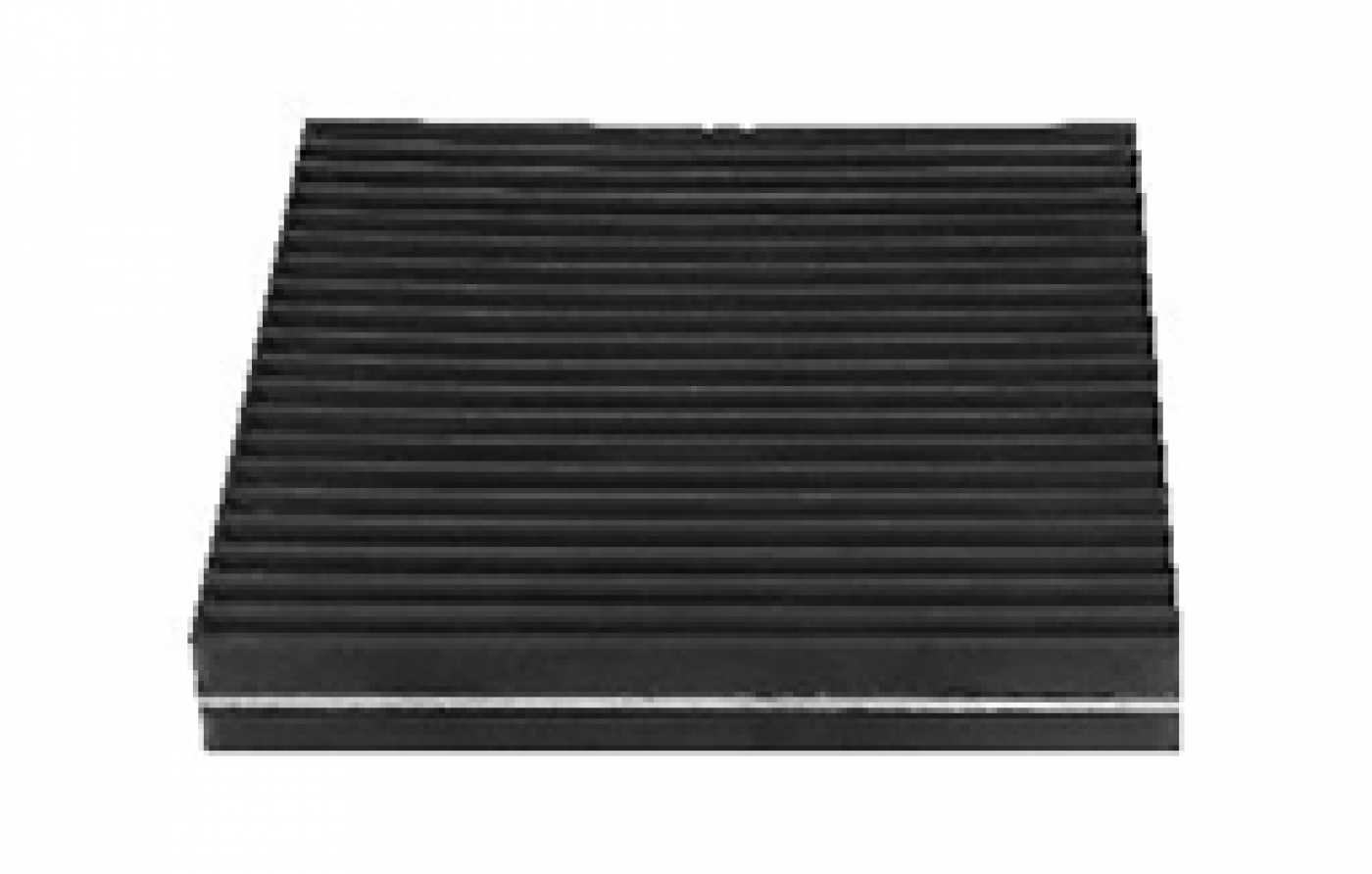

Ribbed Mounting Pad

Metal Sandwich Pad

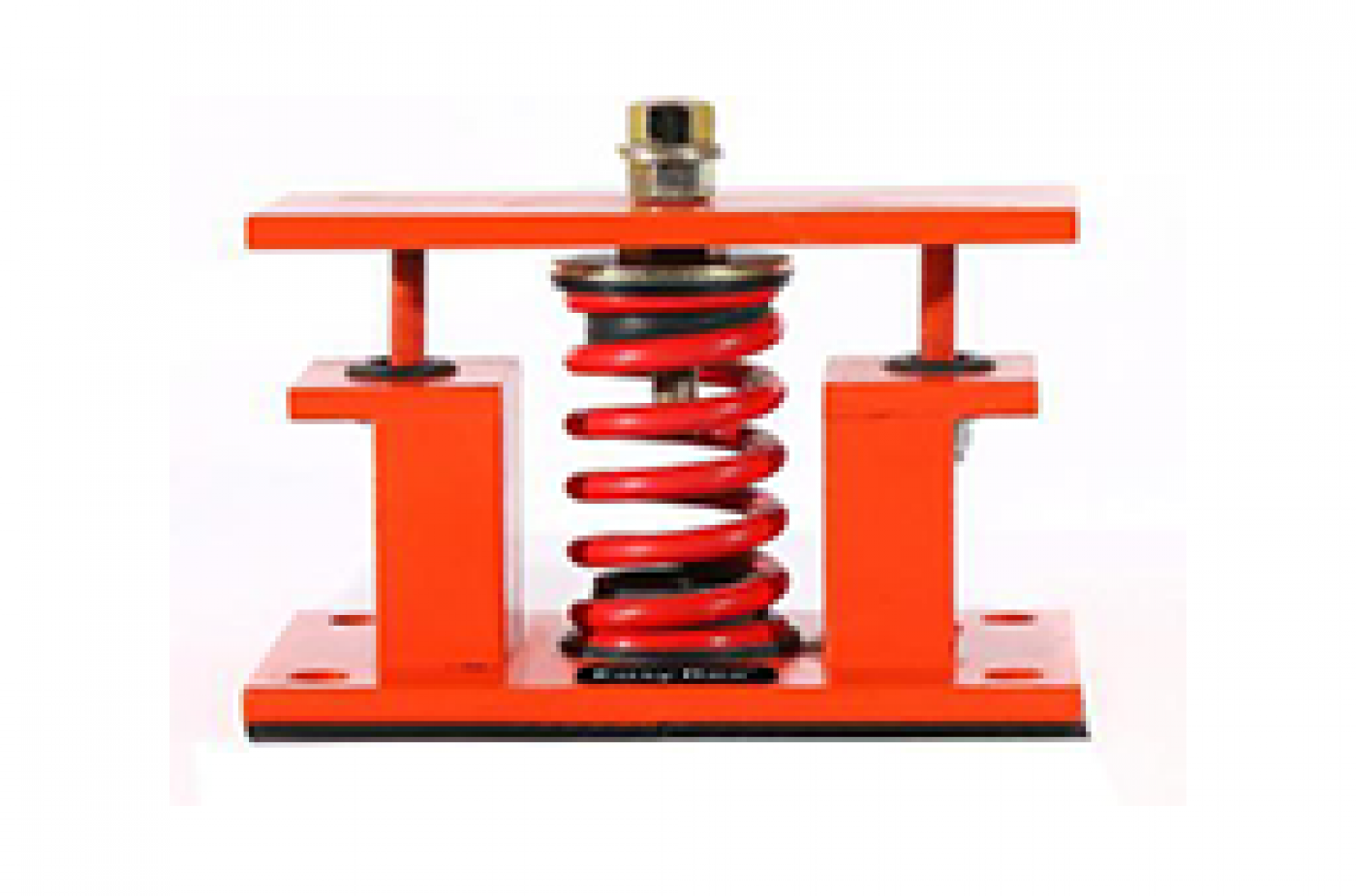

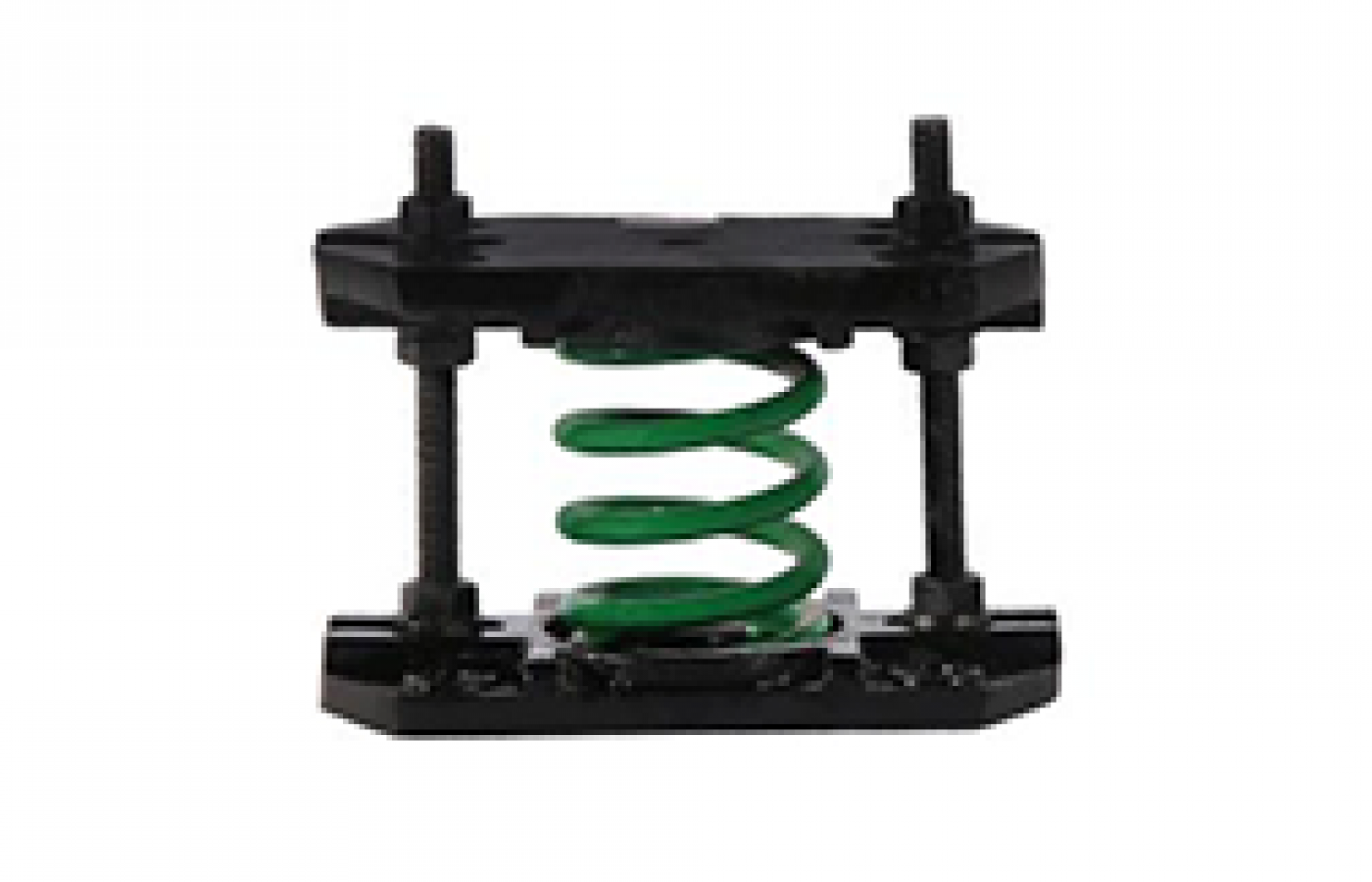

Restrained Spring Mount

Restrained Spring Isolator

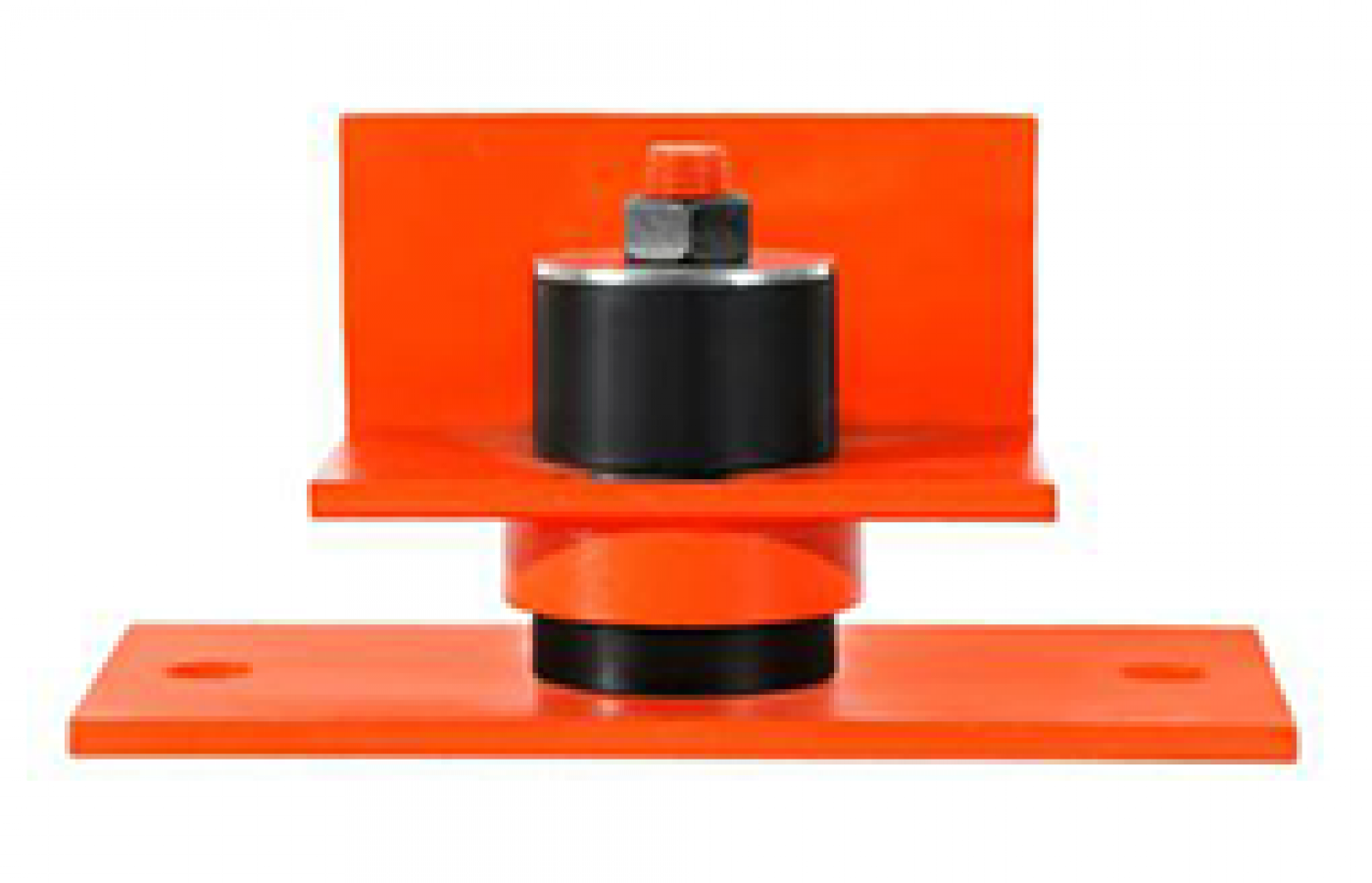

Seismic Restraint Snubber Type - 1

Seismic U Connector

Seismic V Connector

Seismic Restraint Snubber Type - 2

Tri Loop Seismic Connector

Wire Rope Bracing

Rod Bracing Clamp

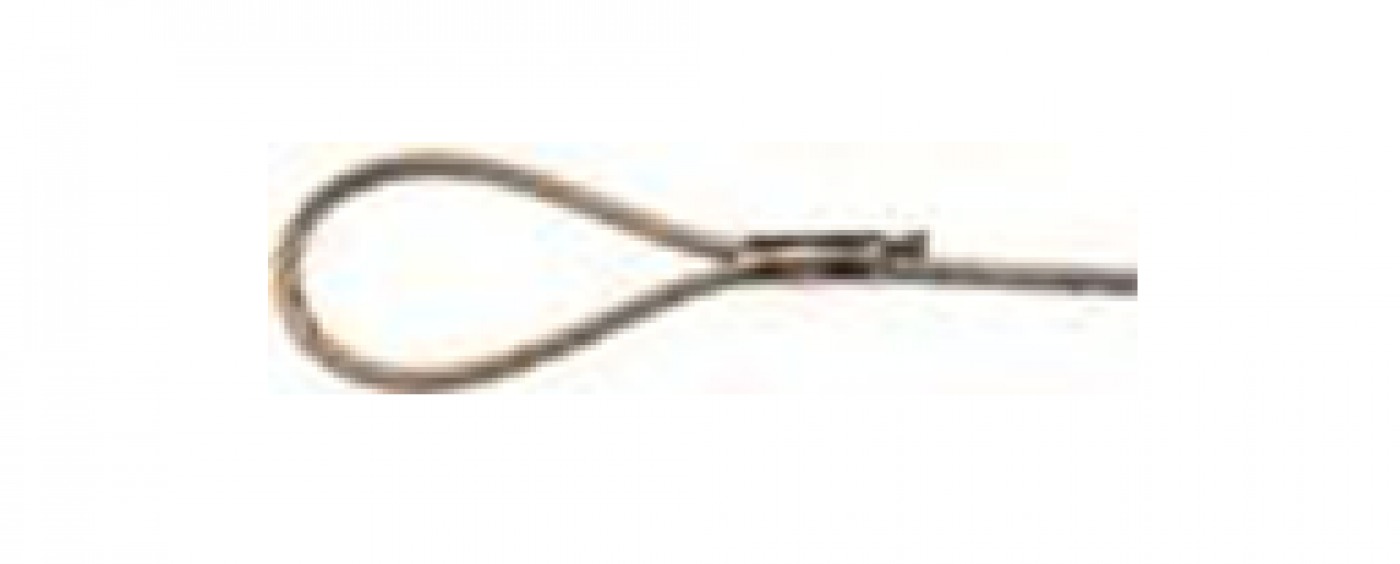

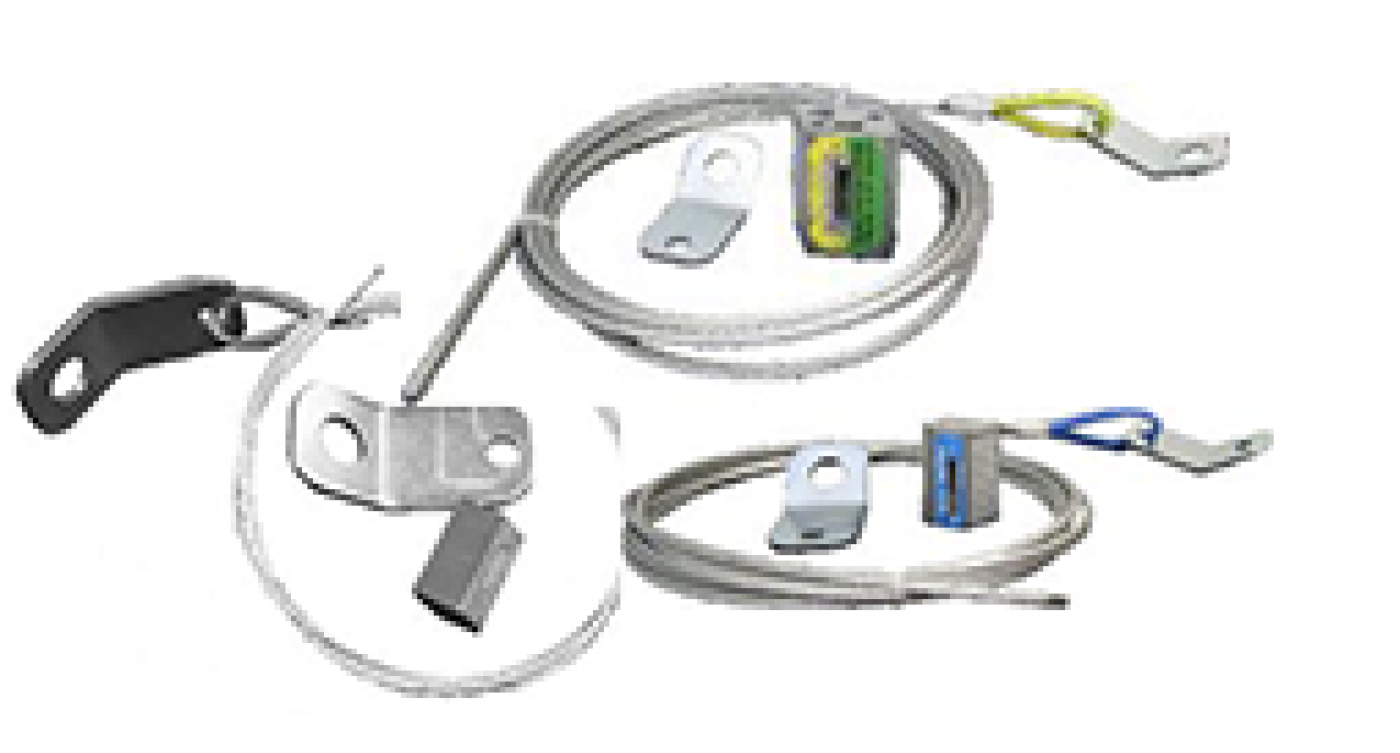

Seismic Bracing Cable

Sprinkler Clamp

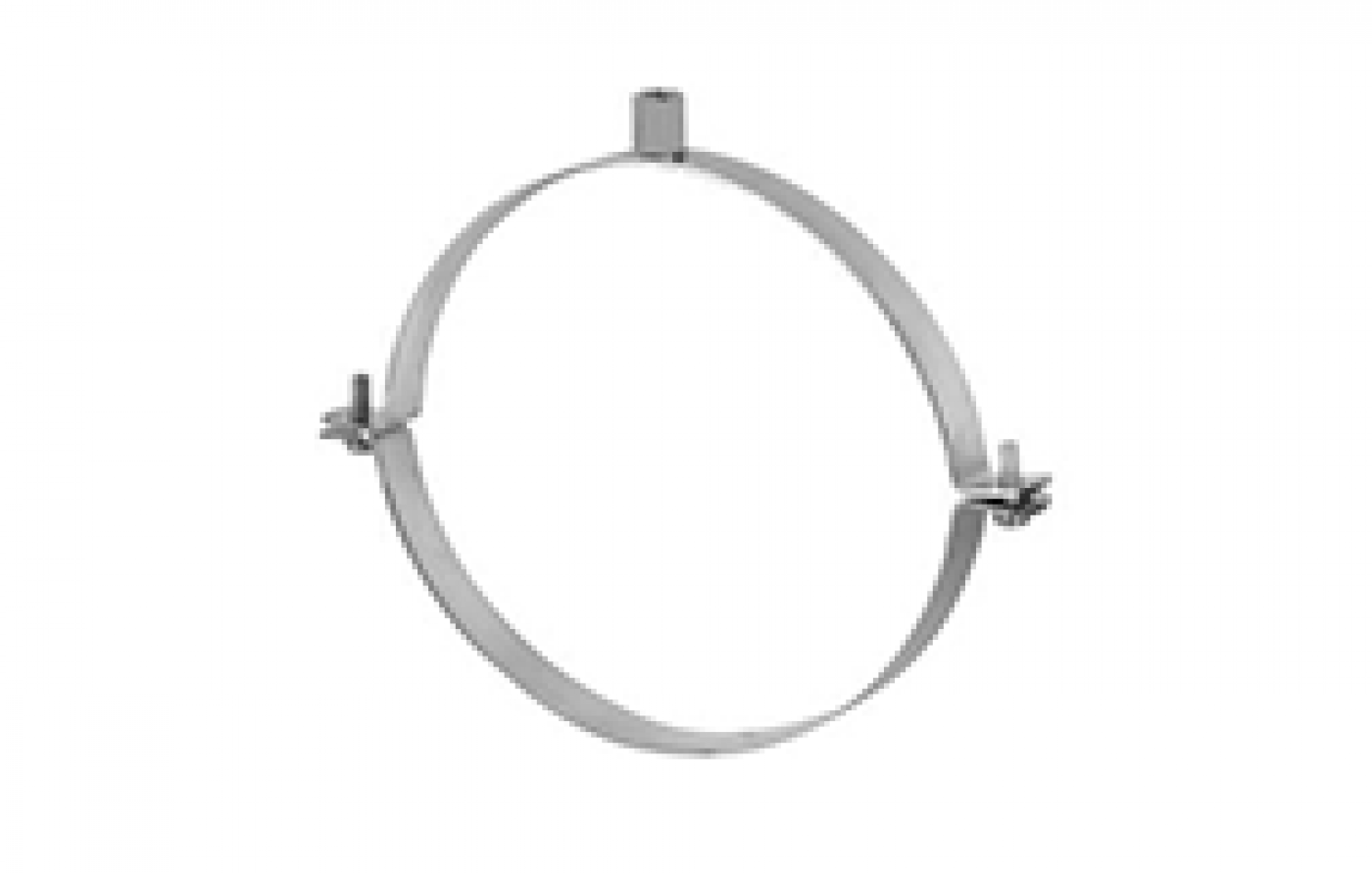

Plain Split Clamp

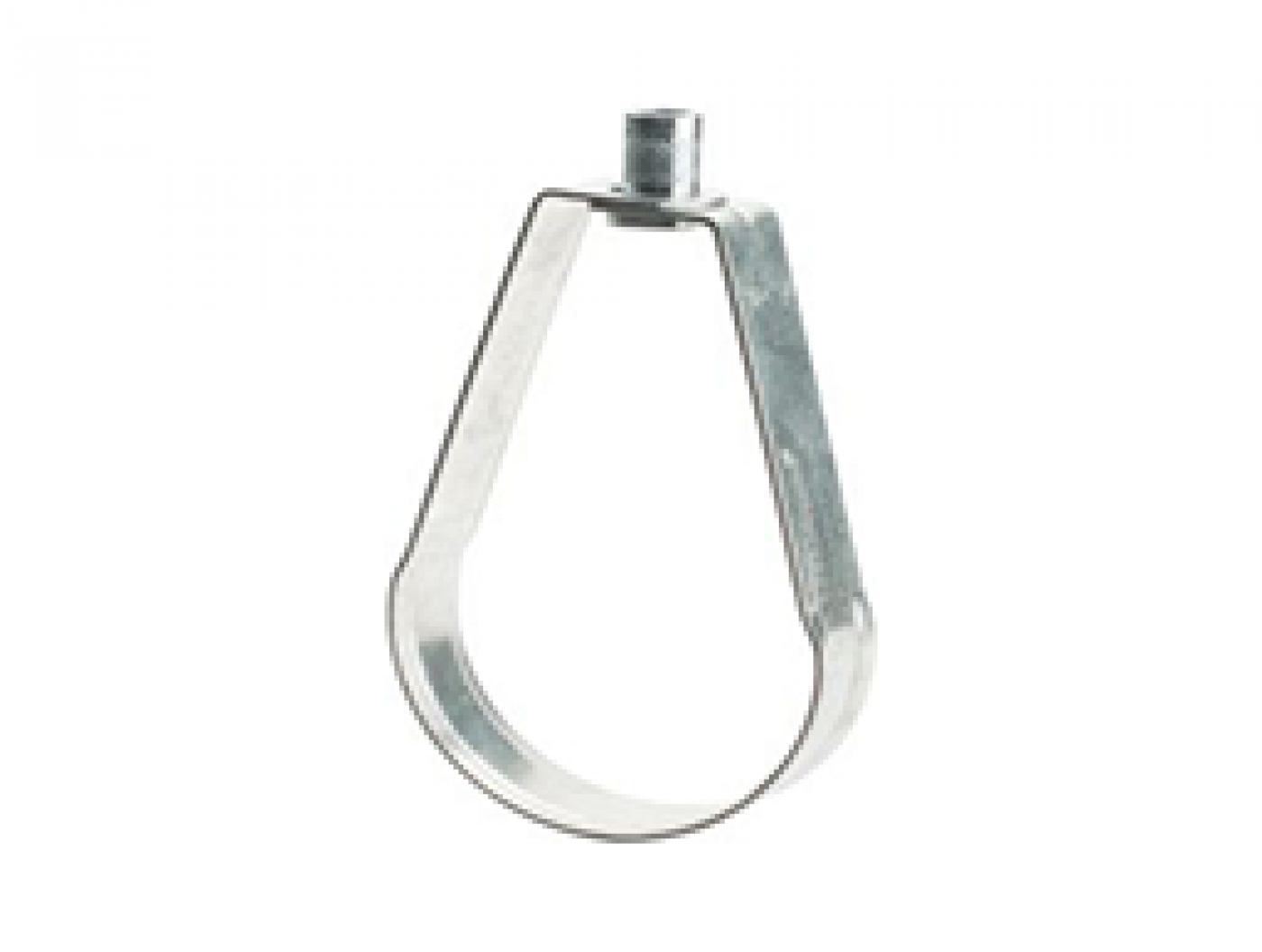

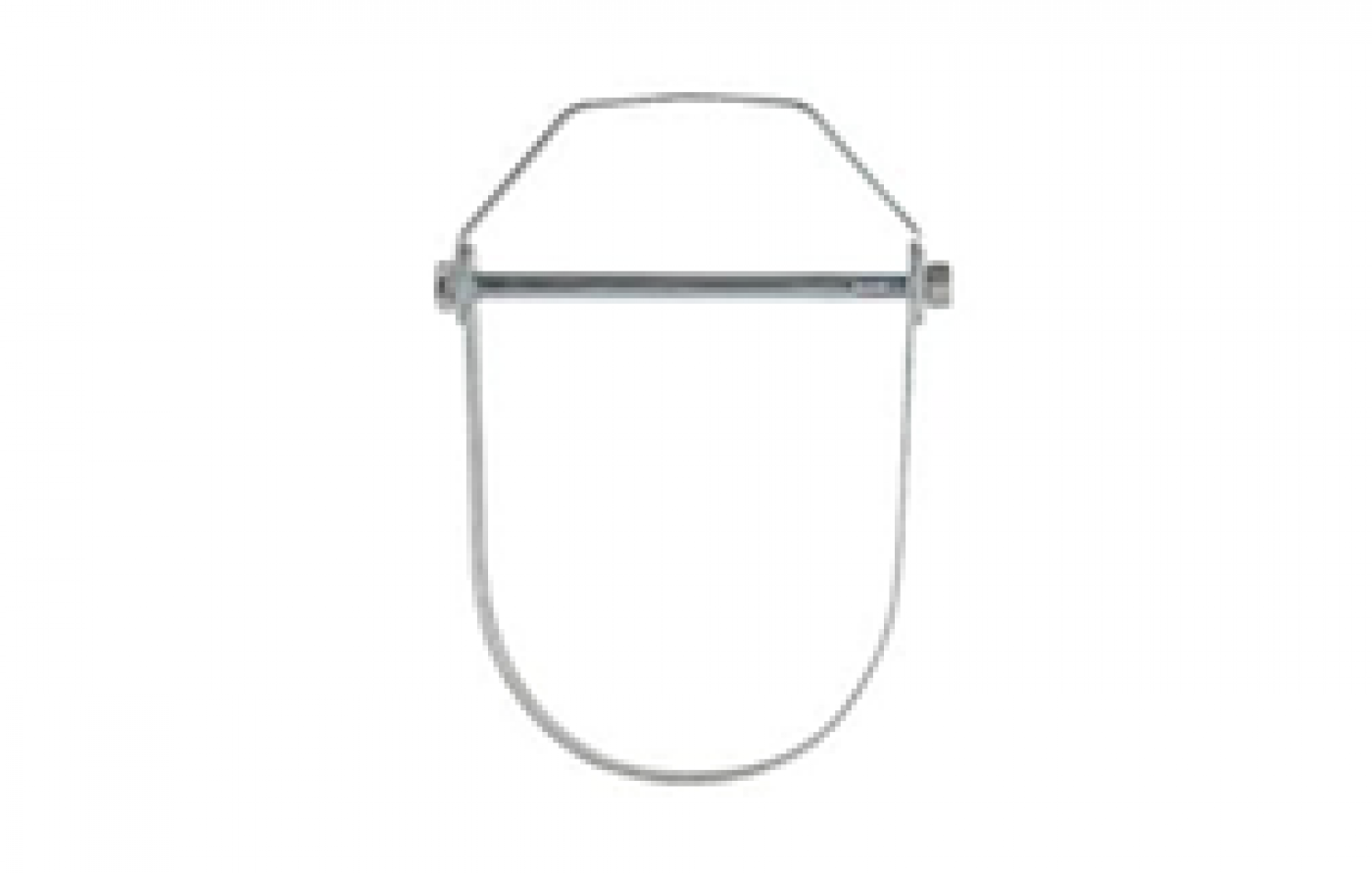

Clevis Hanger

EPDM Lined Sprinkler Clamp

EPDM Lined Plain Split Clamp

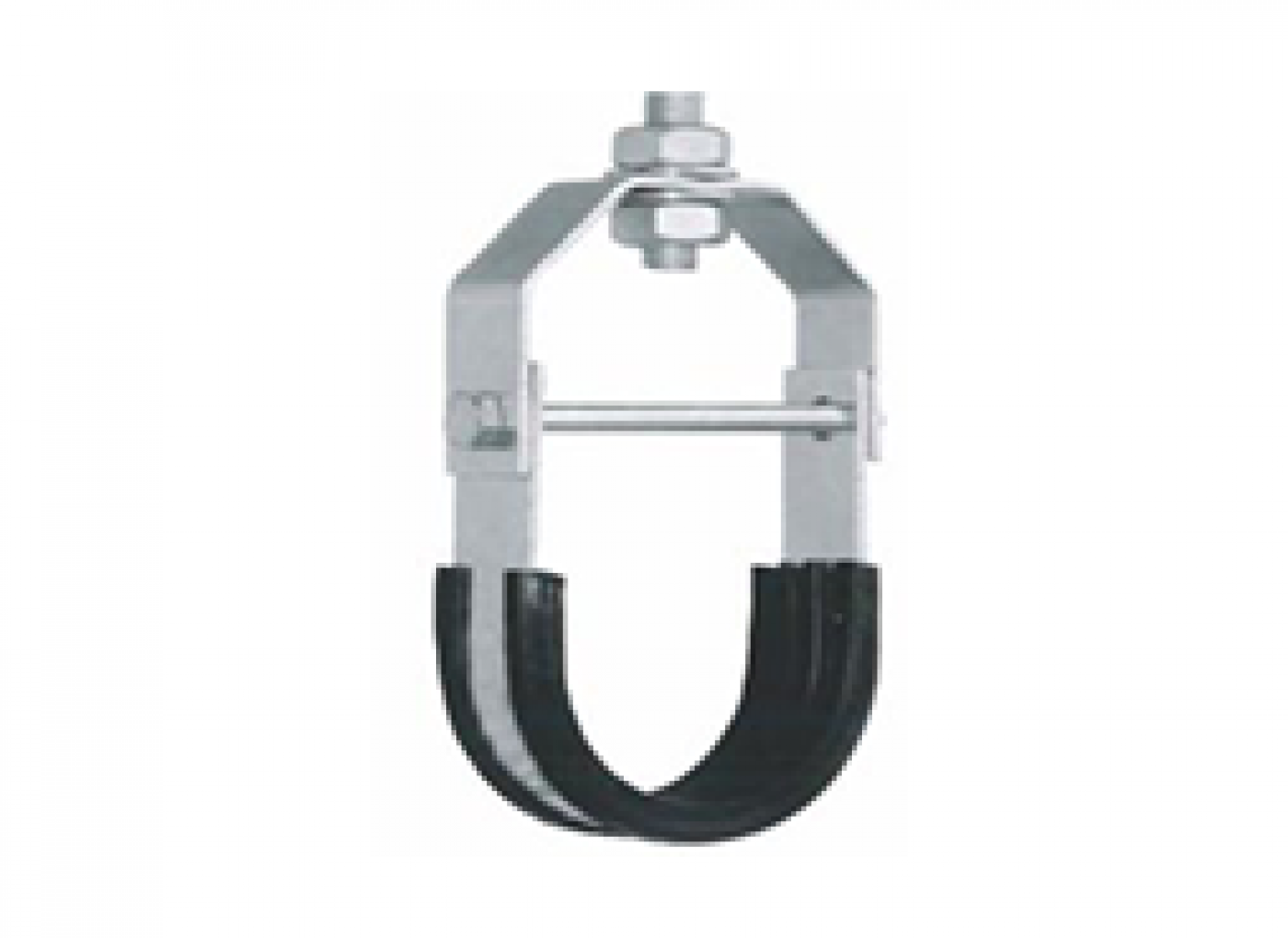

EPDM Lined Clevis Hanger

Roller Chair

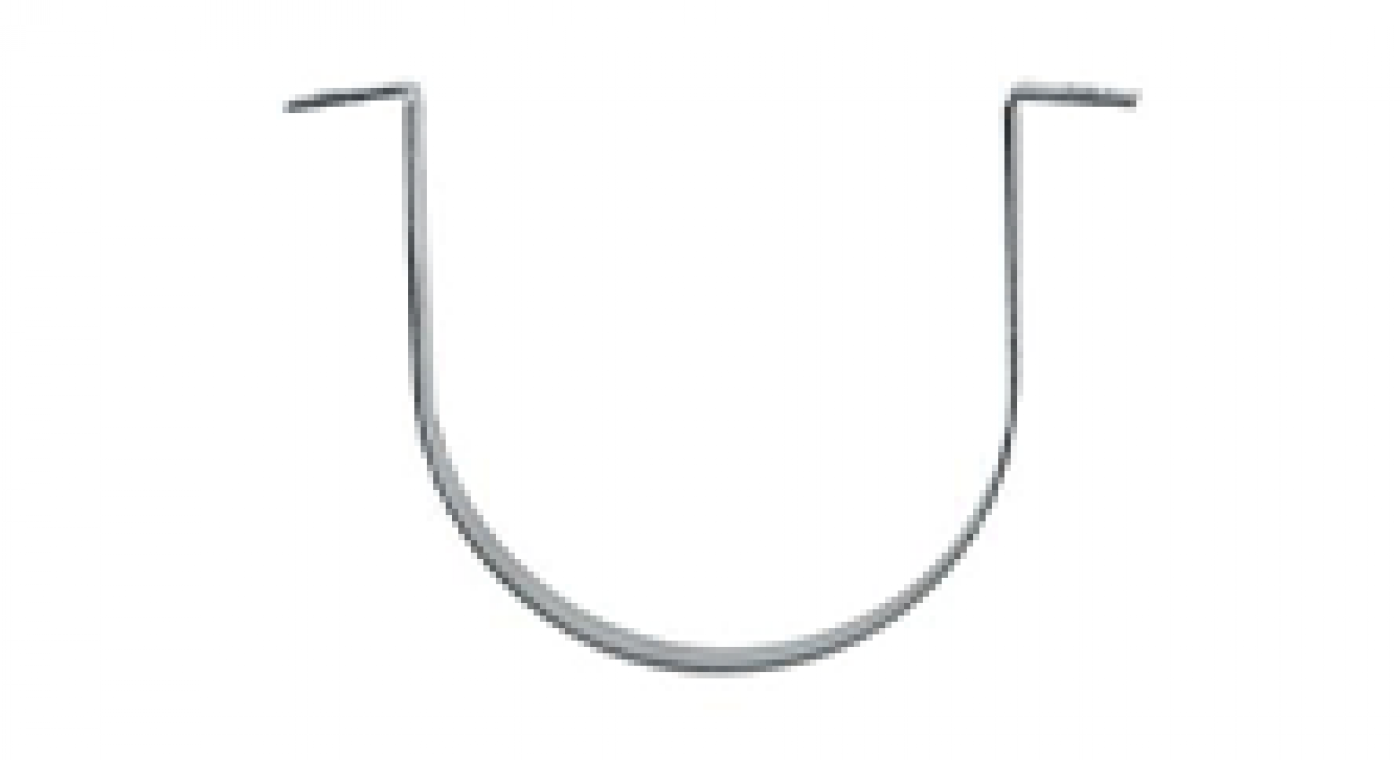

U Strap Clamp

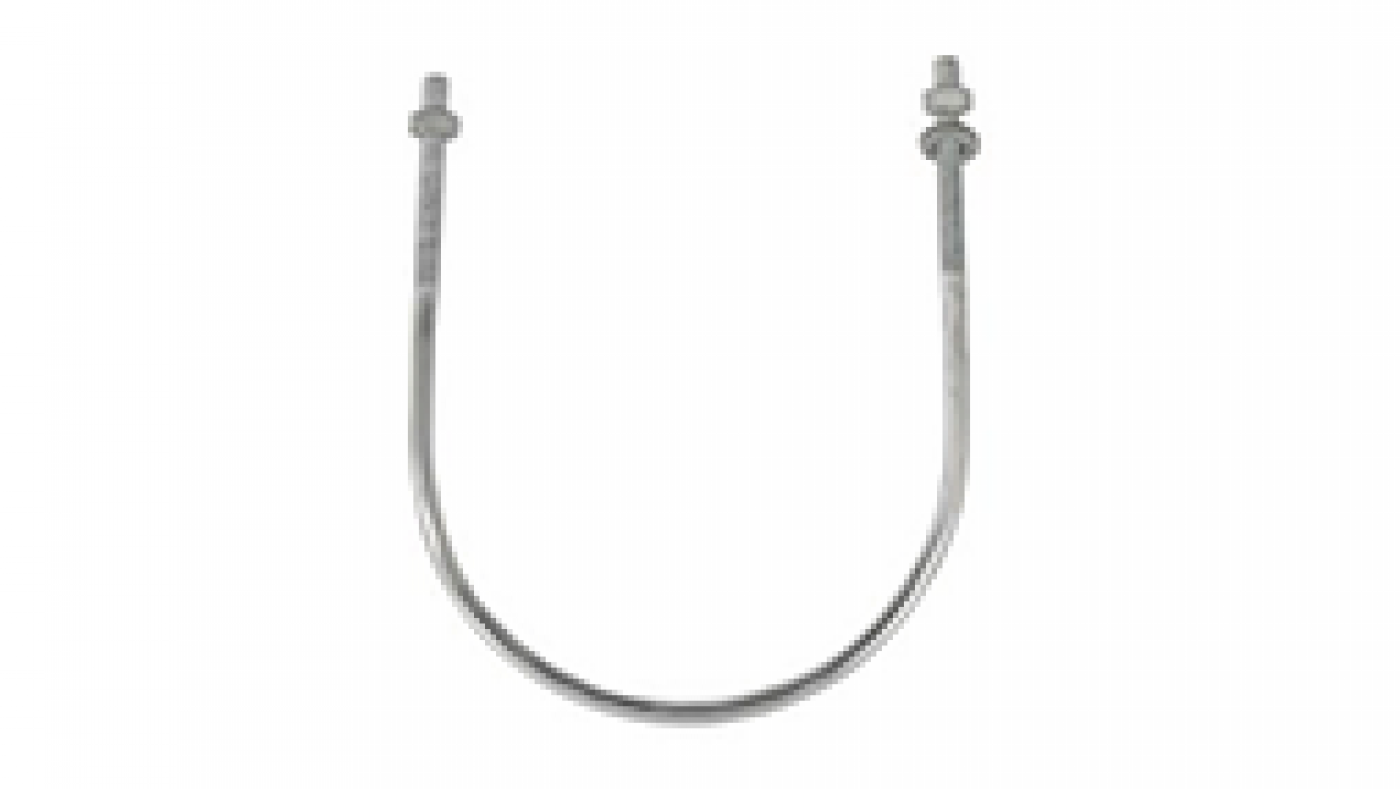

U Bolt

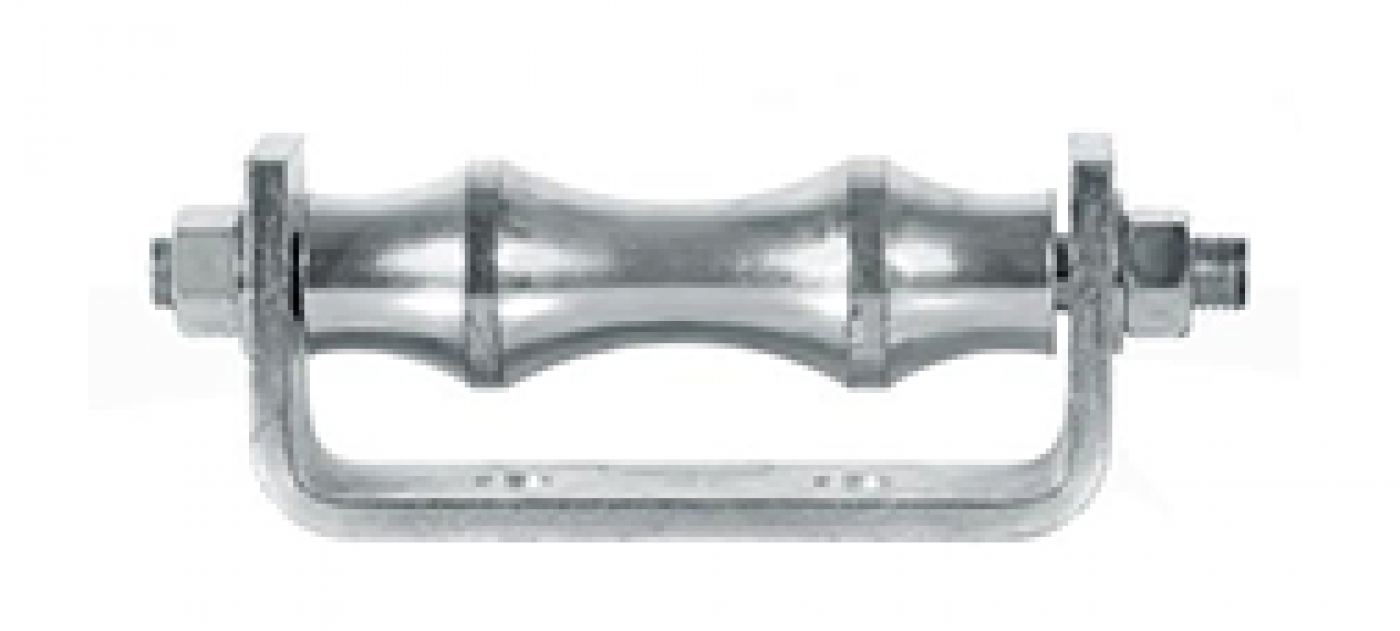

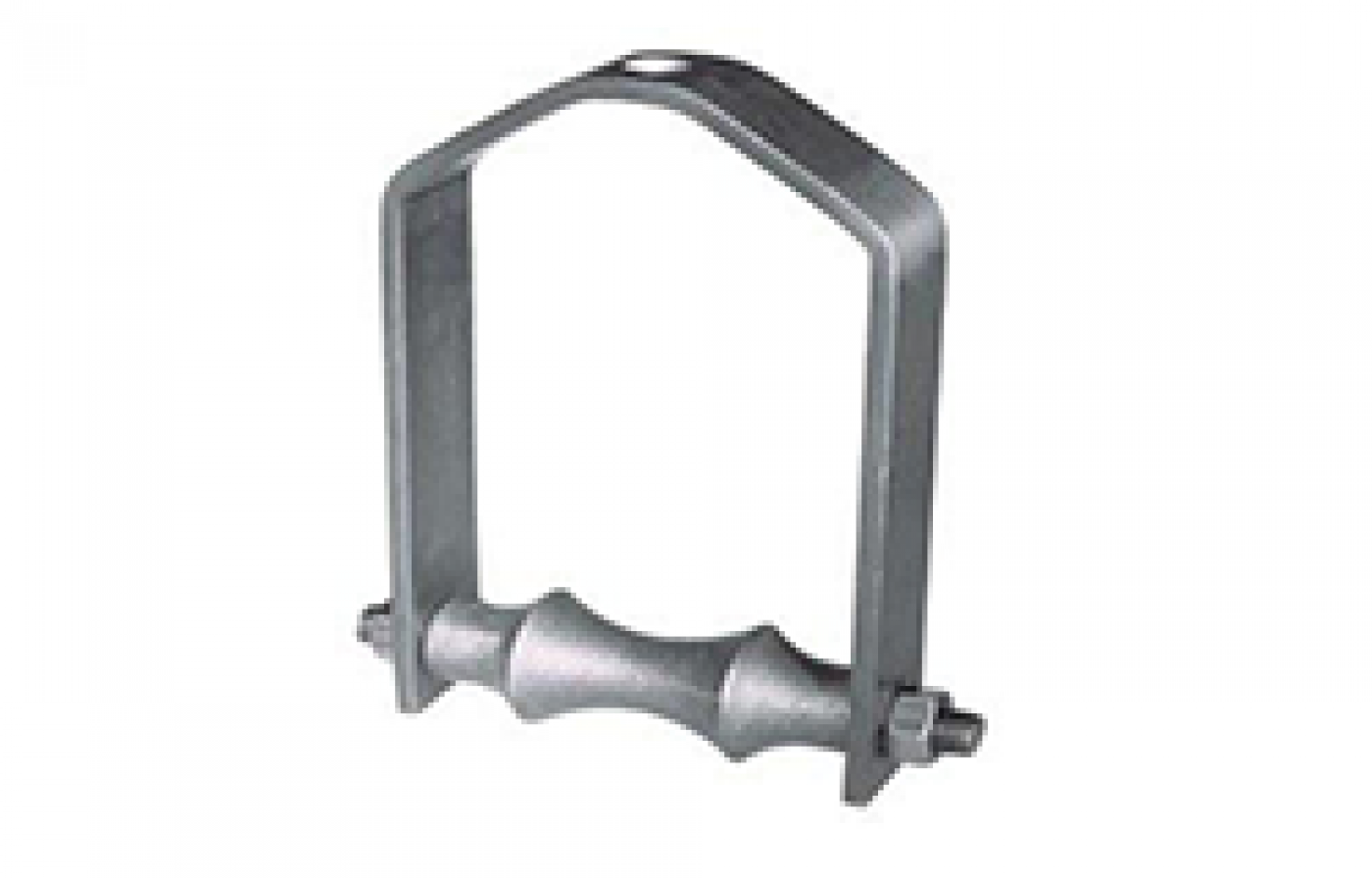

Roller Hanger

EPDM Lined U Strap Clamp

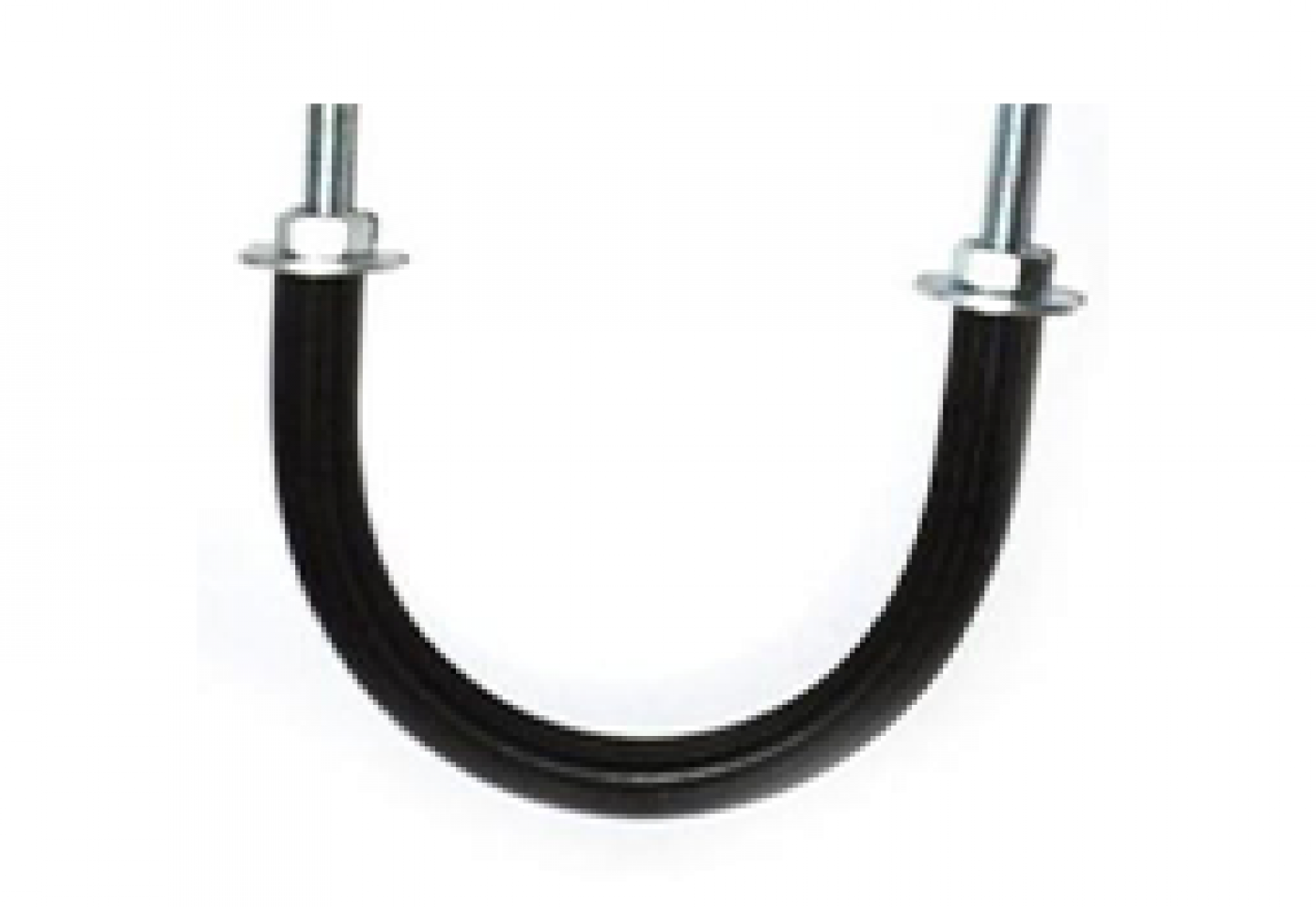

EPDM Lined U Bolt

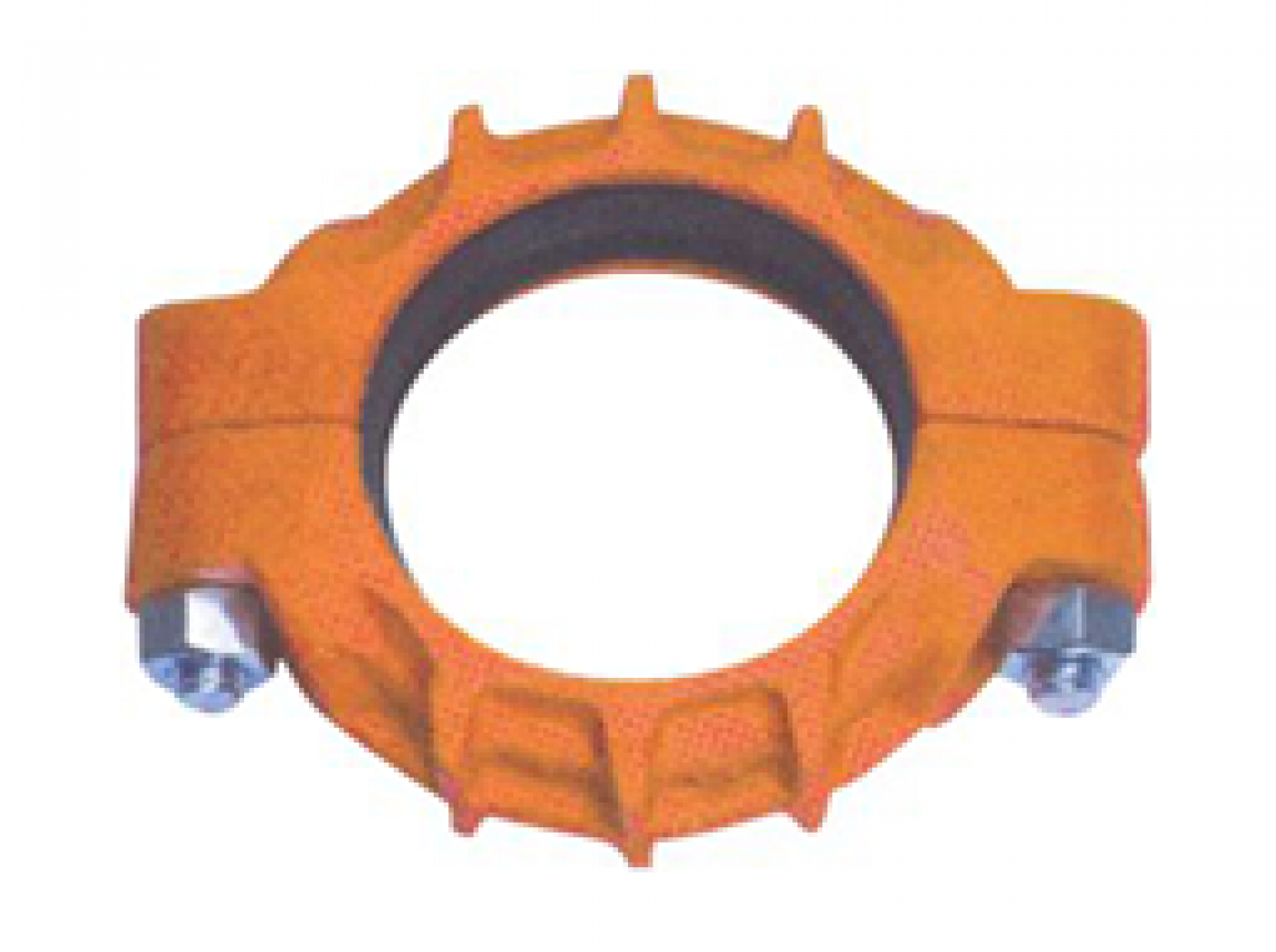

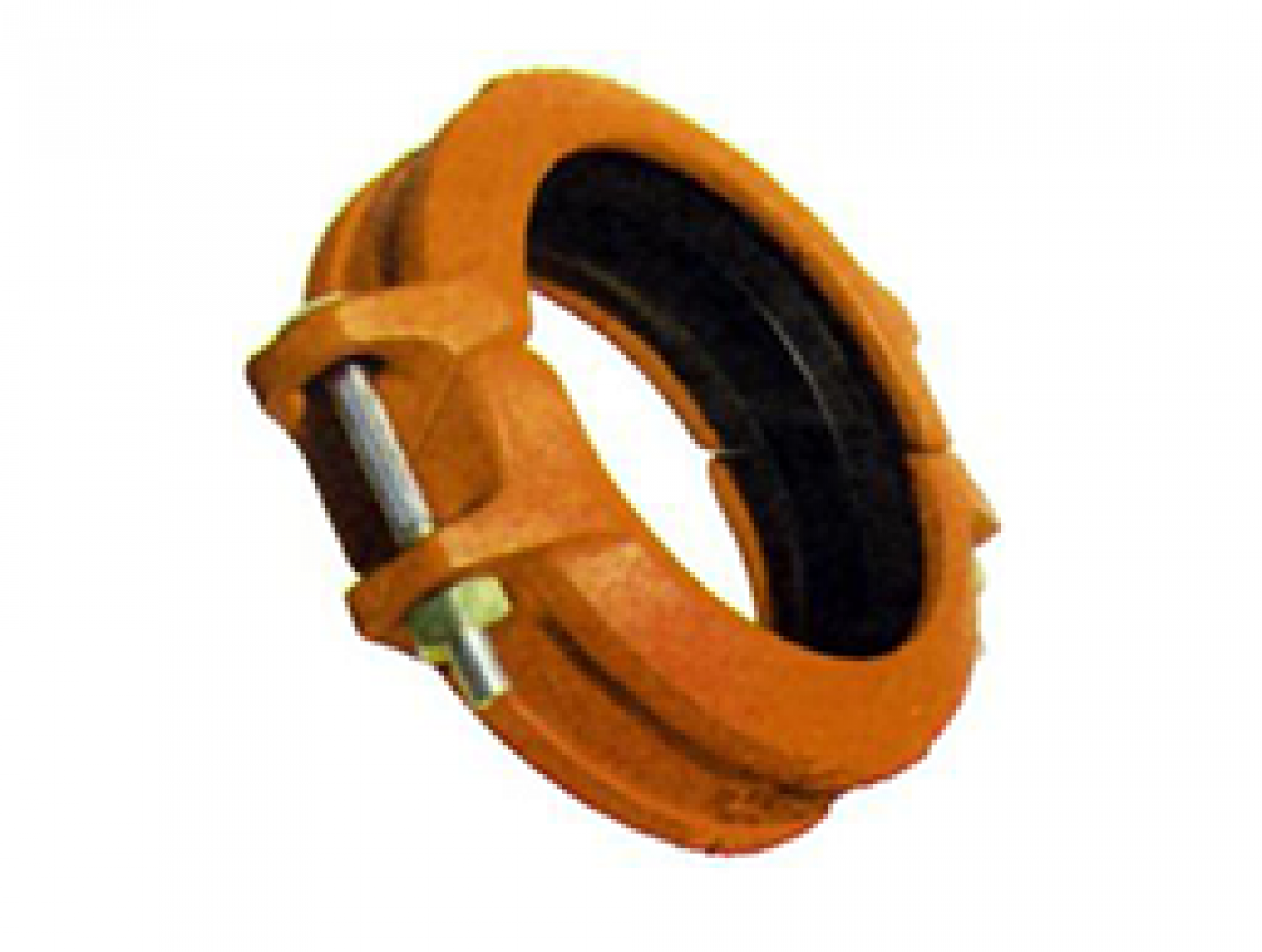

Grooved Flexible Coupling

Grooved Rigid Coupling

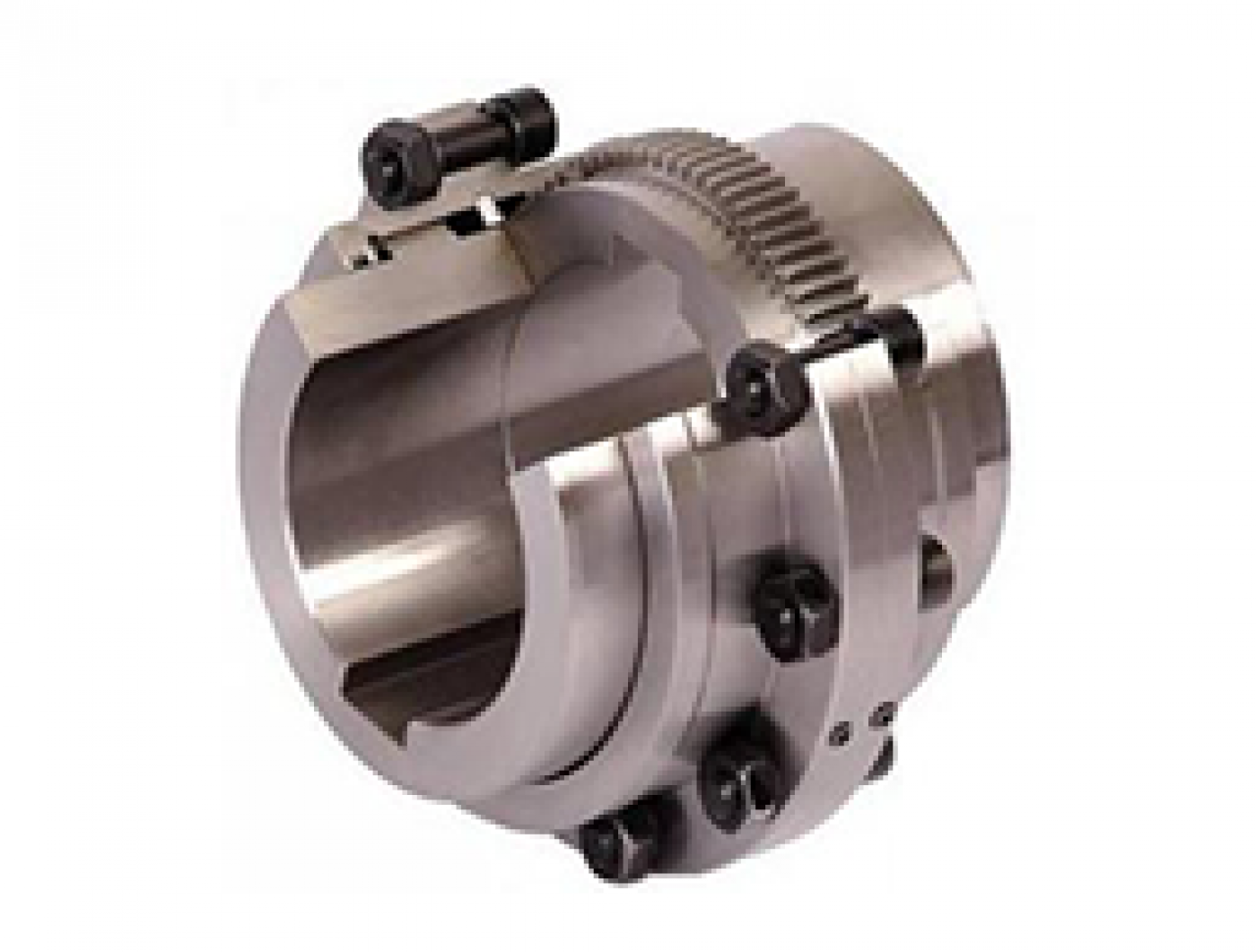

Flexible Gear Coupling

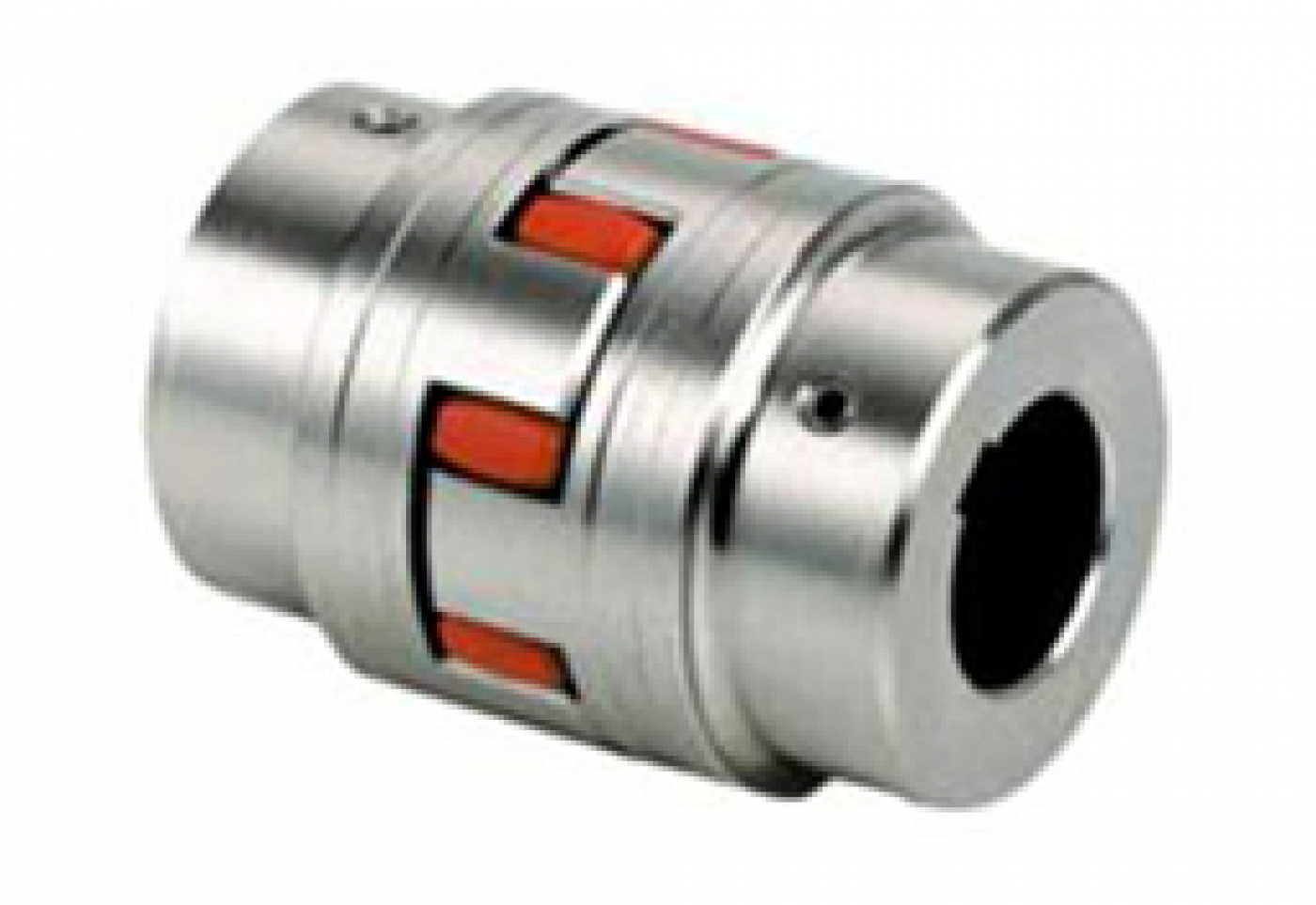

Flexible Jaw Coupling

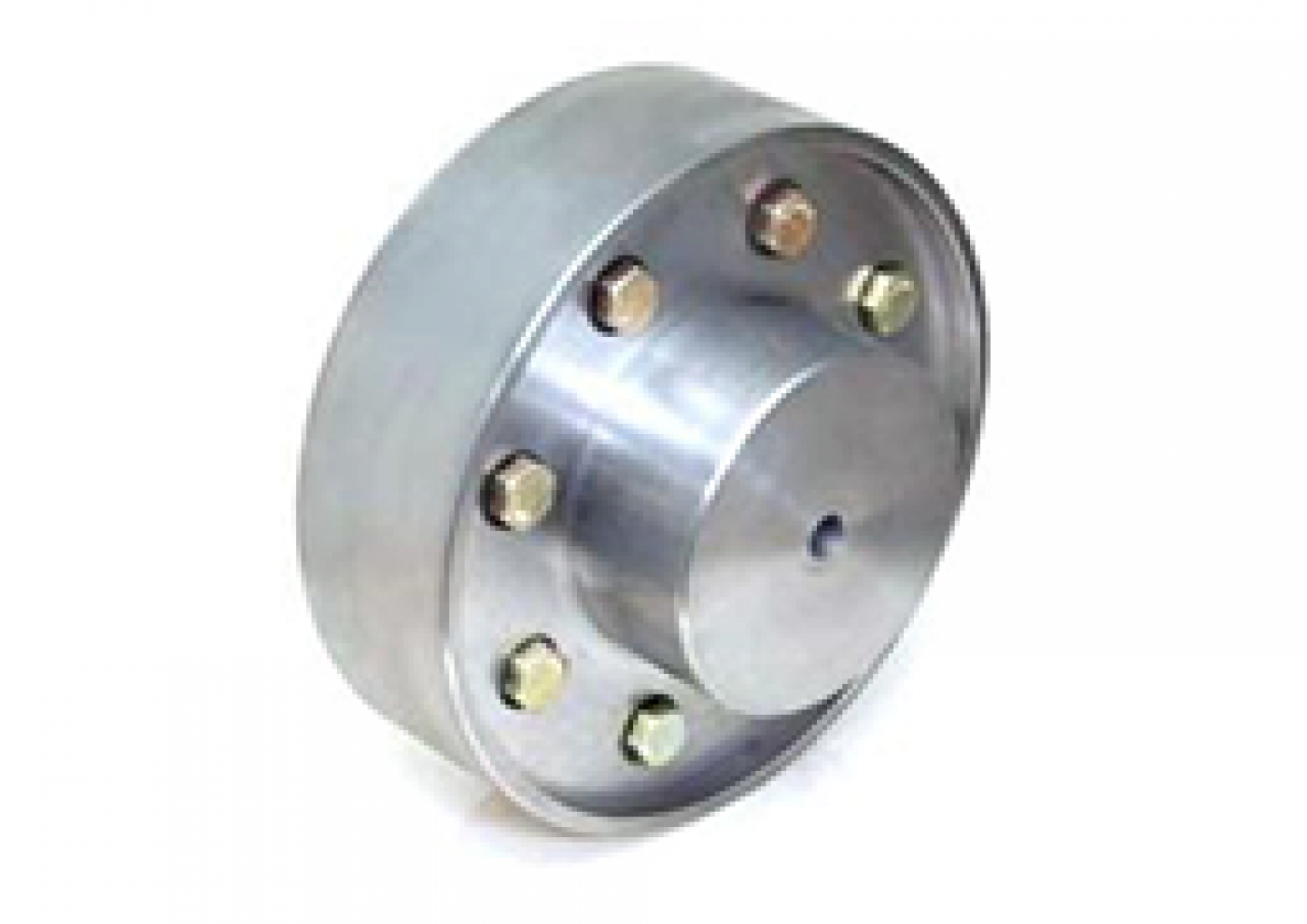

Pin Bush Type Coupling

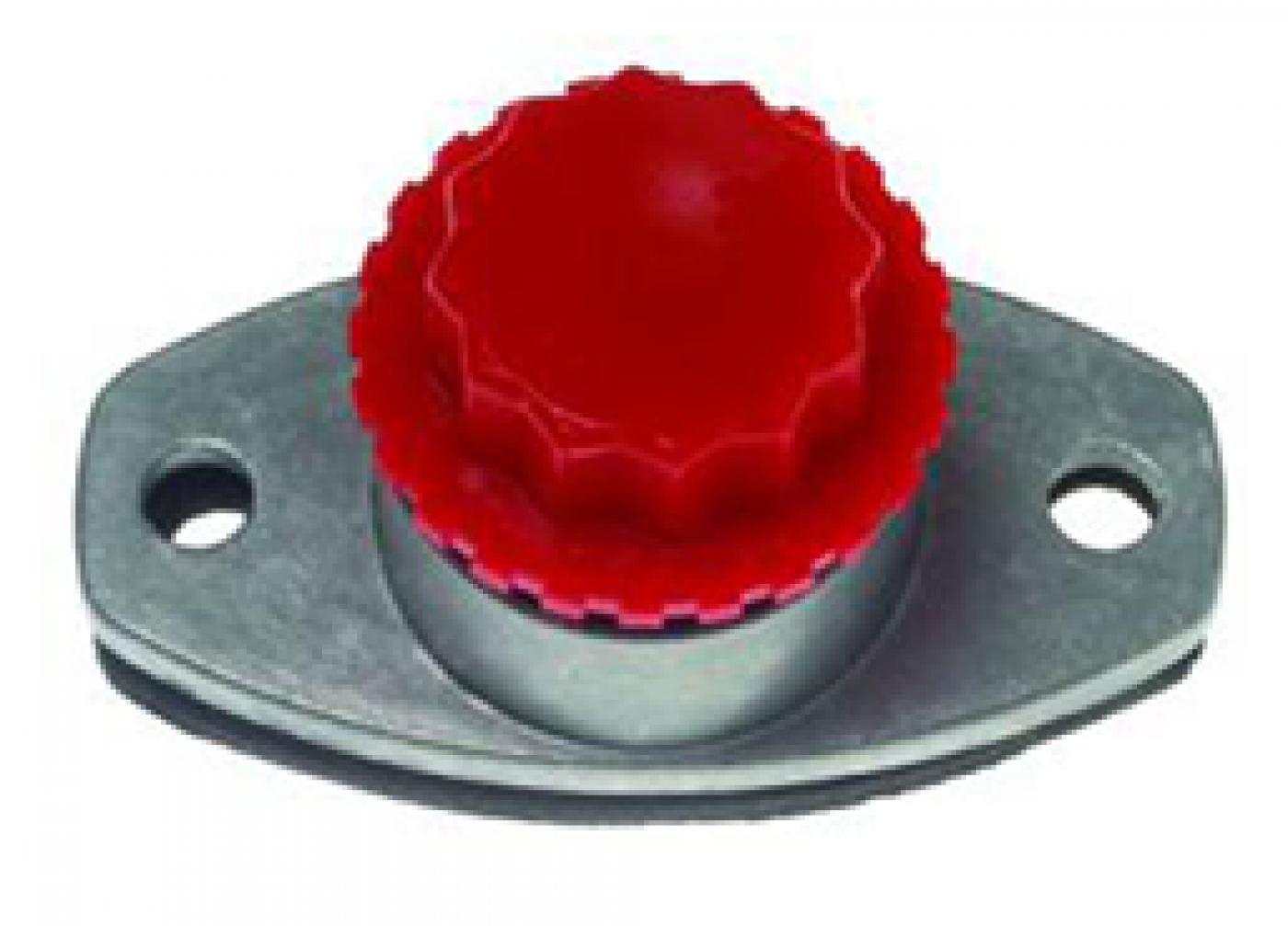

Instrument Test Port

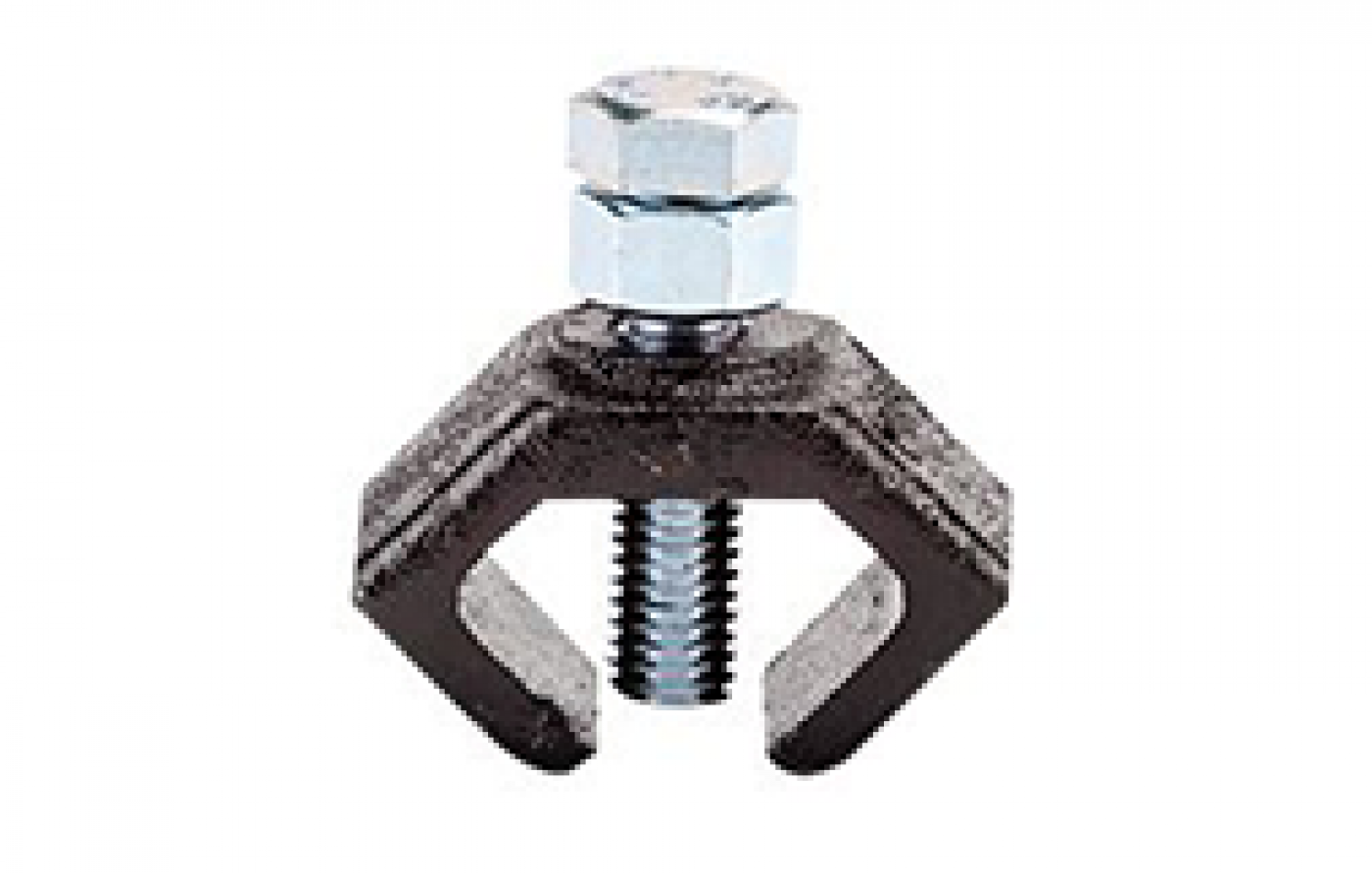

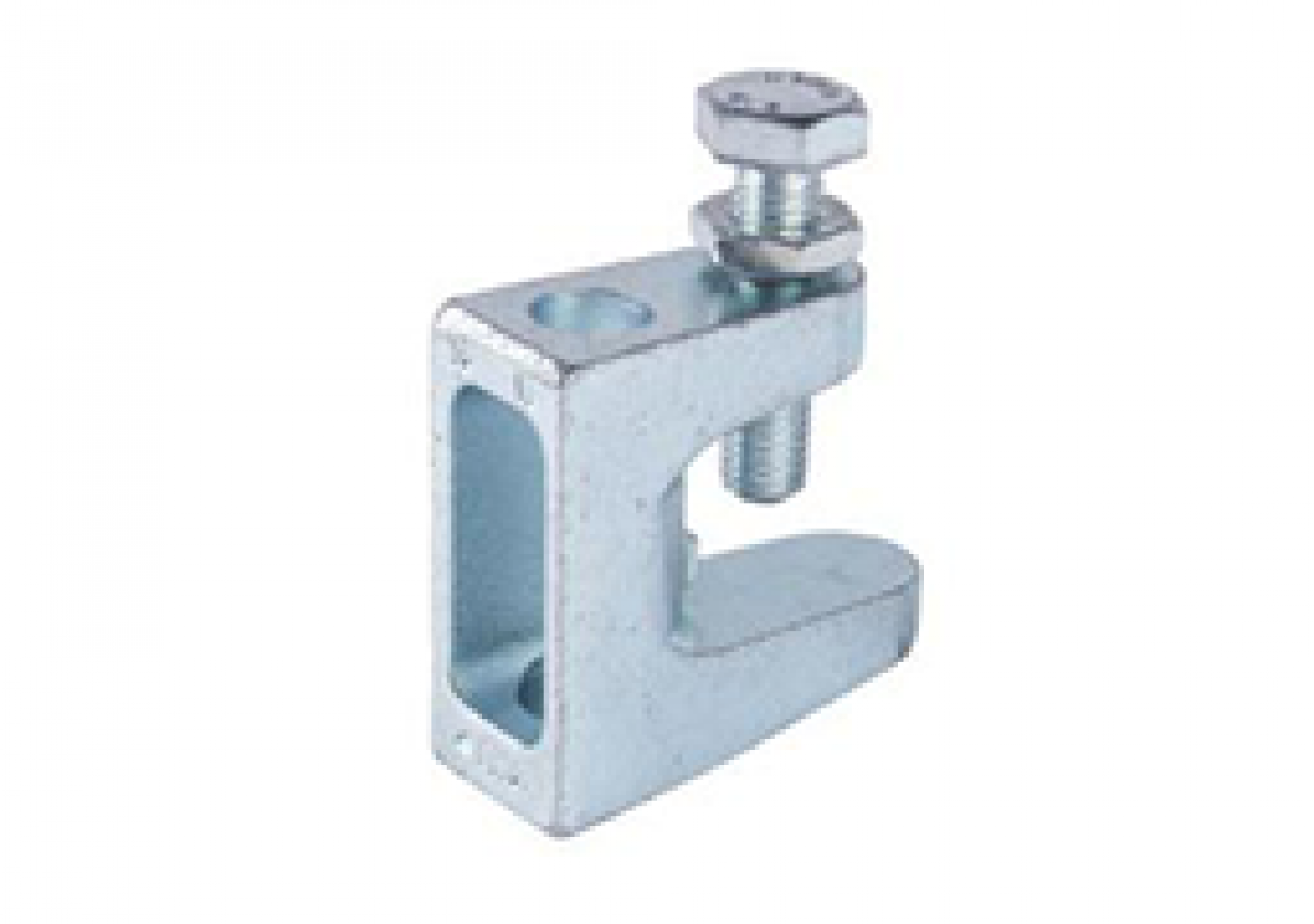

Beam Clamp

Rubber Support Insert

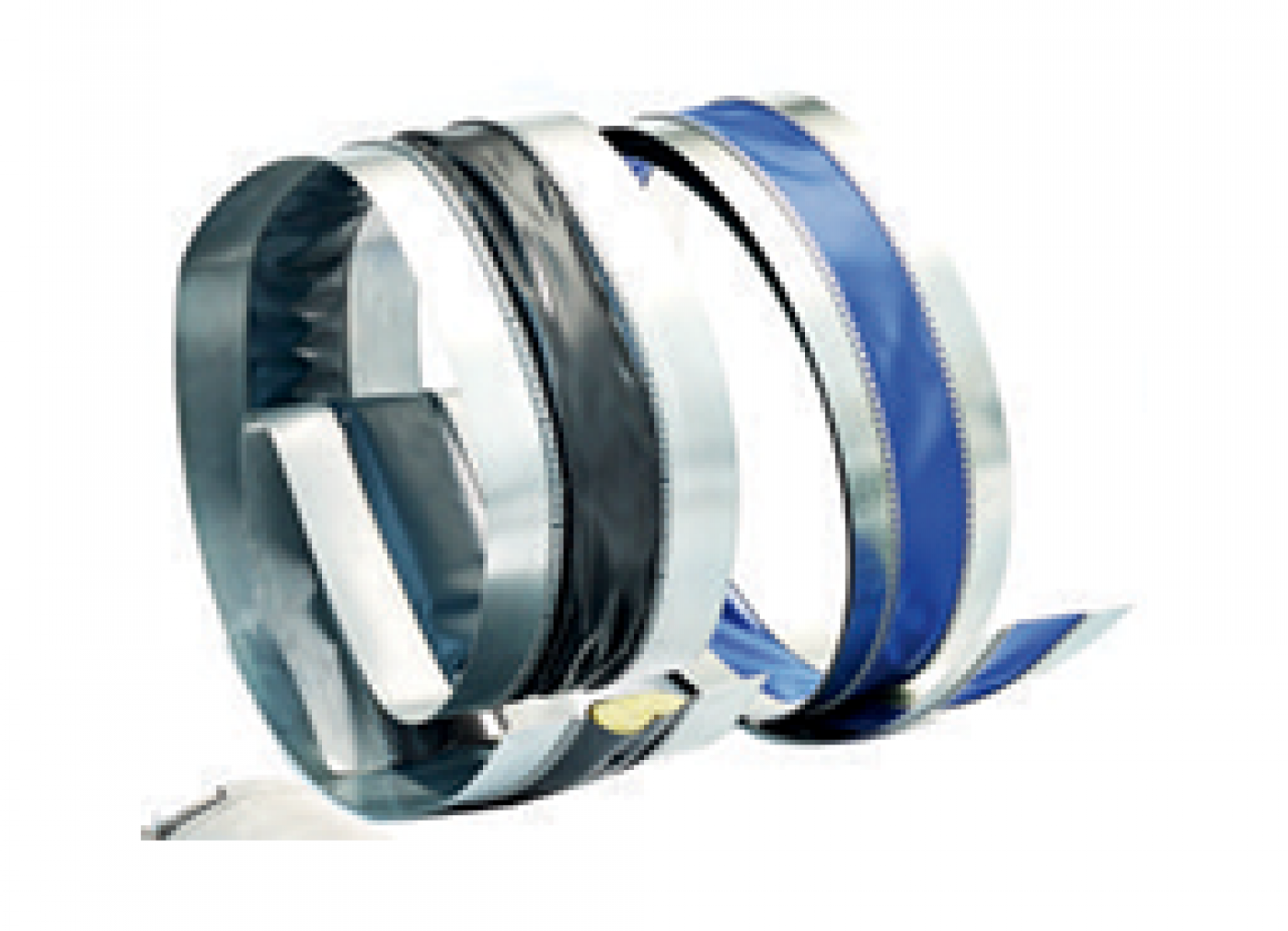

Flexible Duct Connector

Flexible Duct Connector

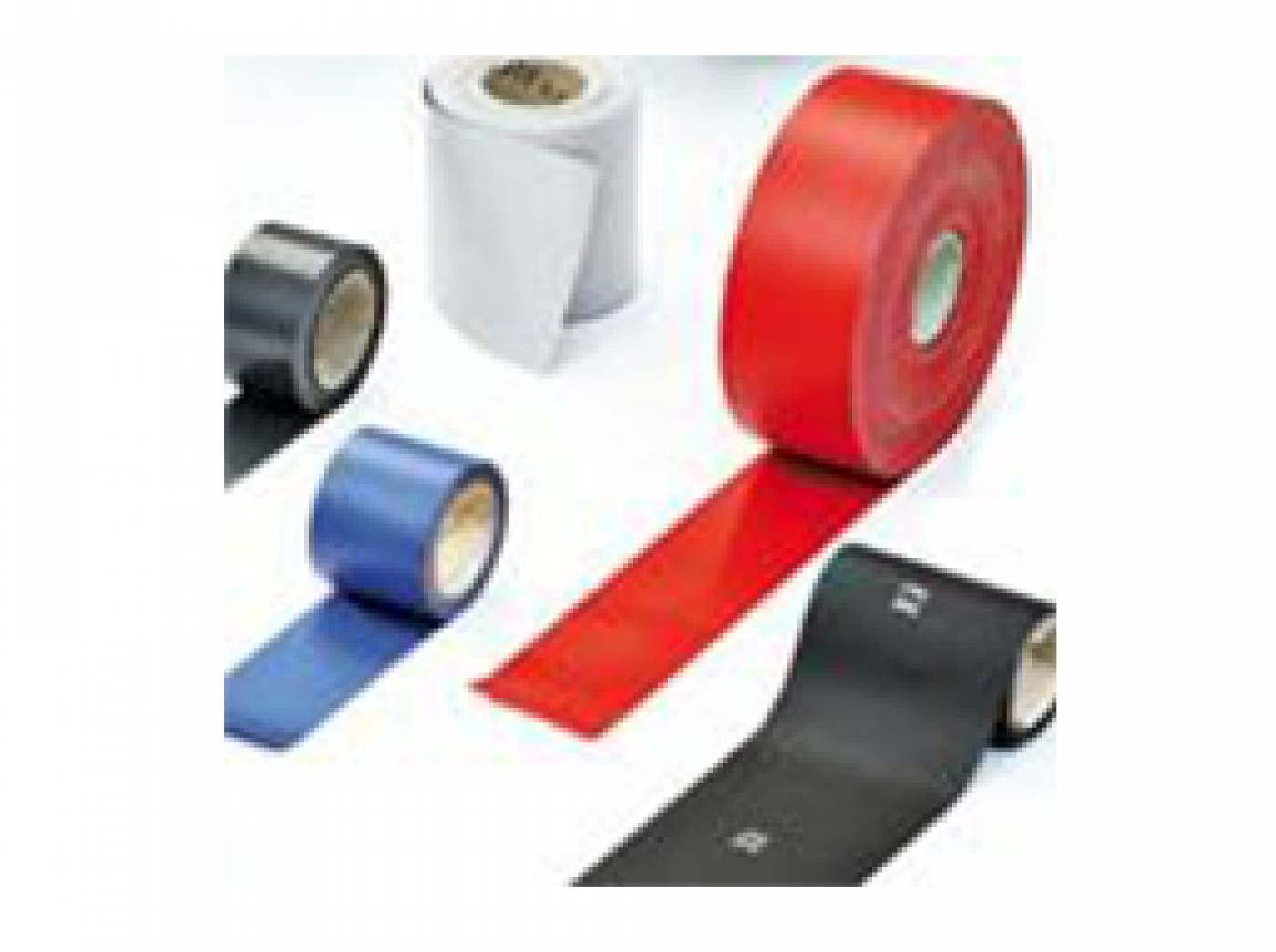

Fabrics

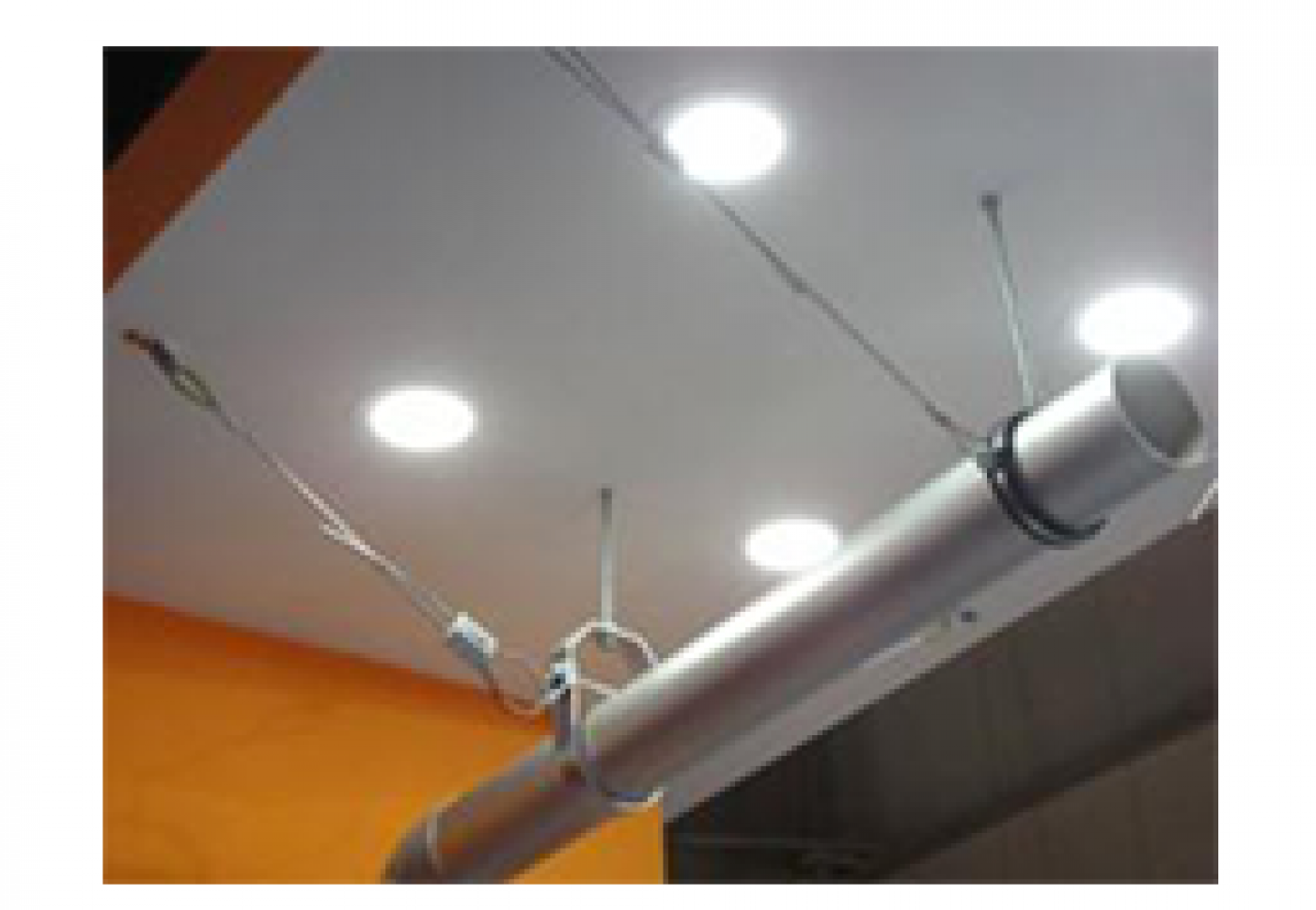

Wire Rope Suspension System

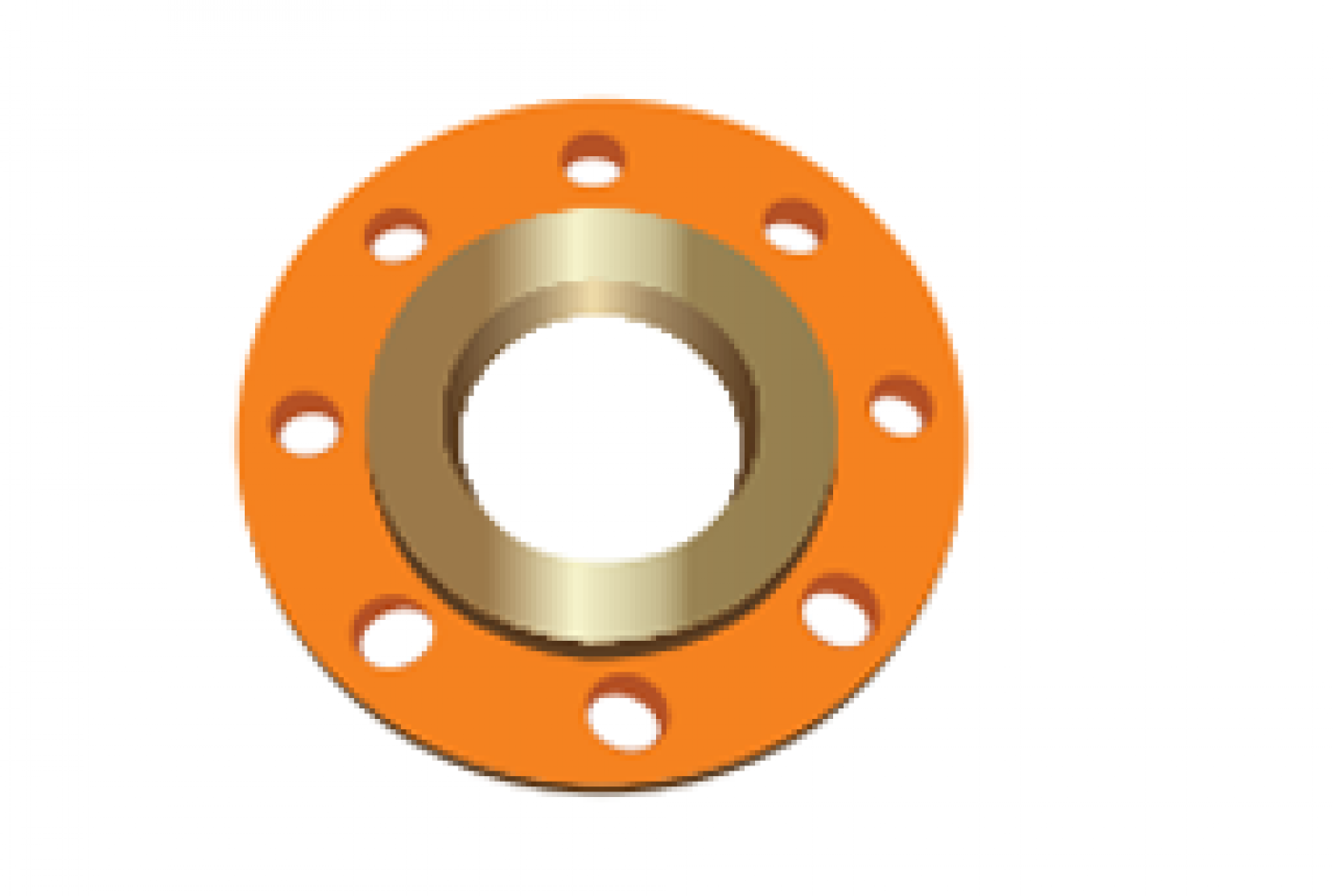

Dielectric Flange

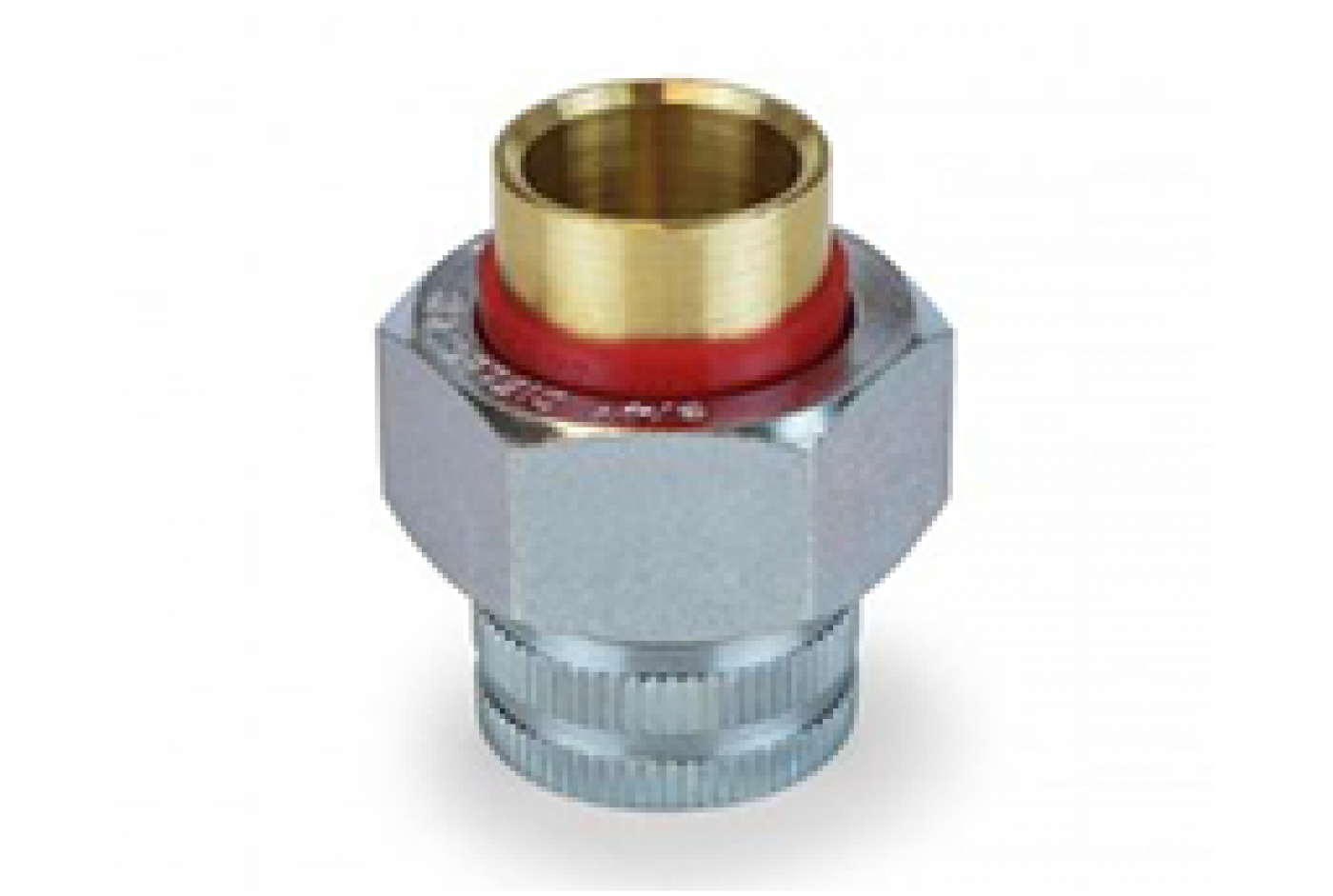

Dielectric Union

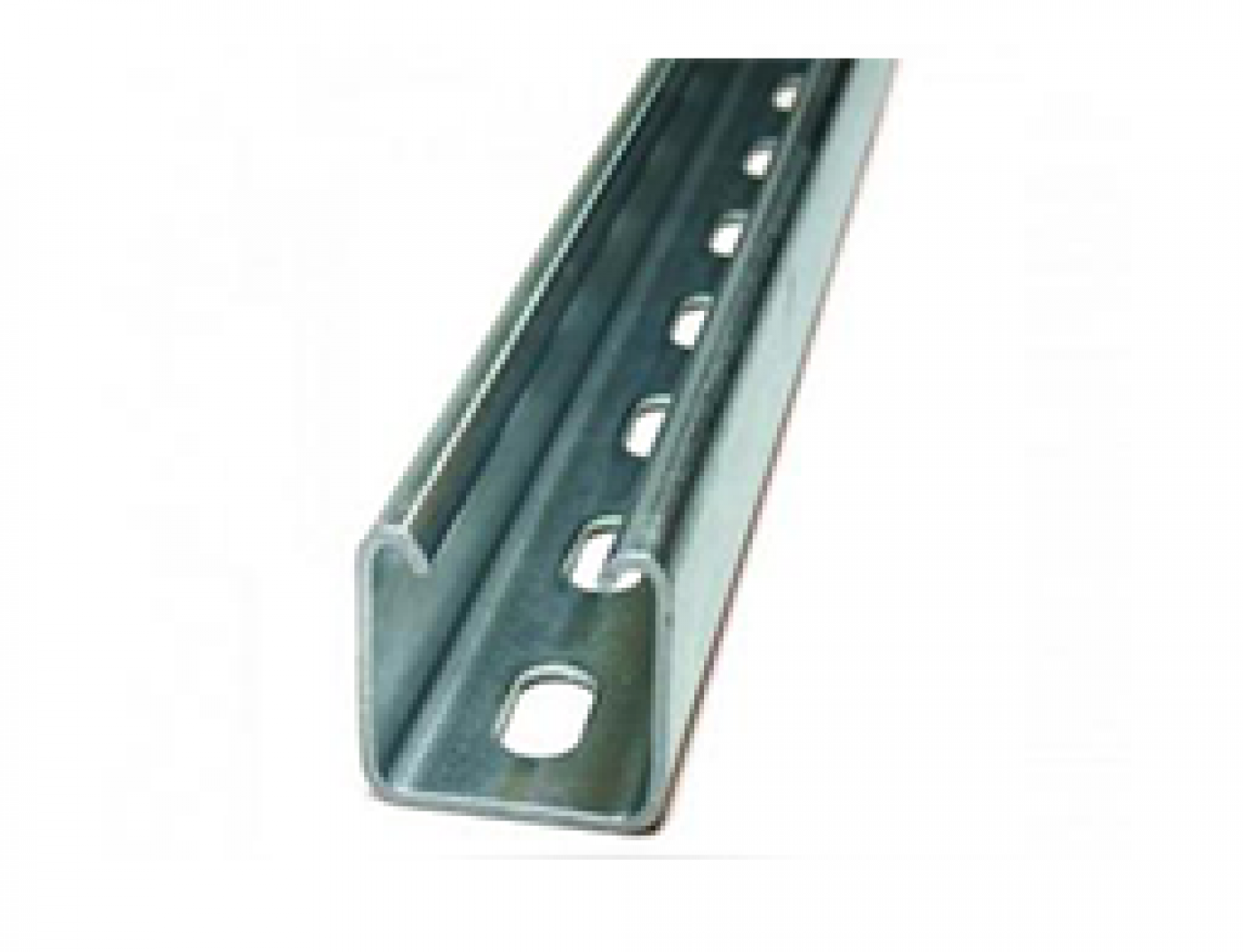

Slotted Channel

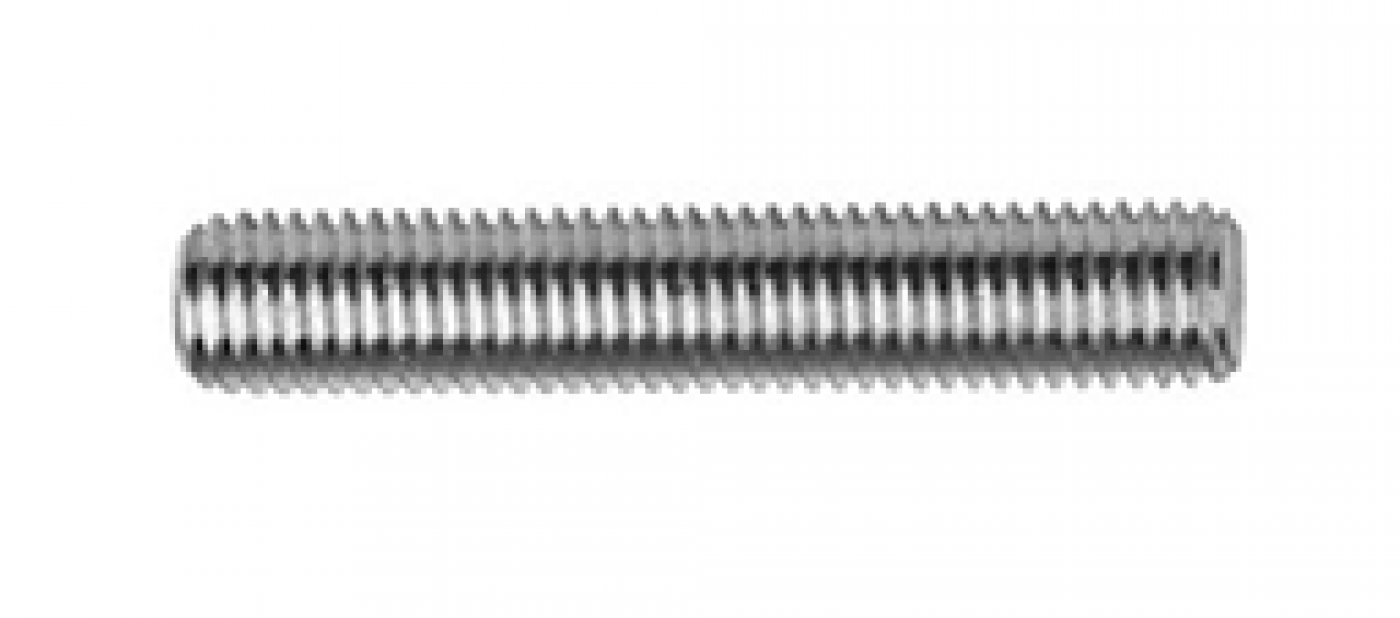

Threaded Rod

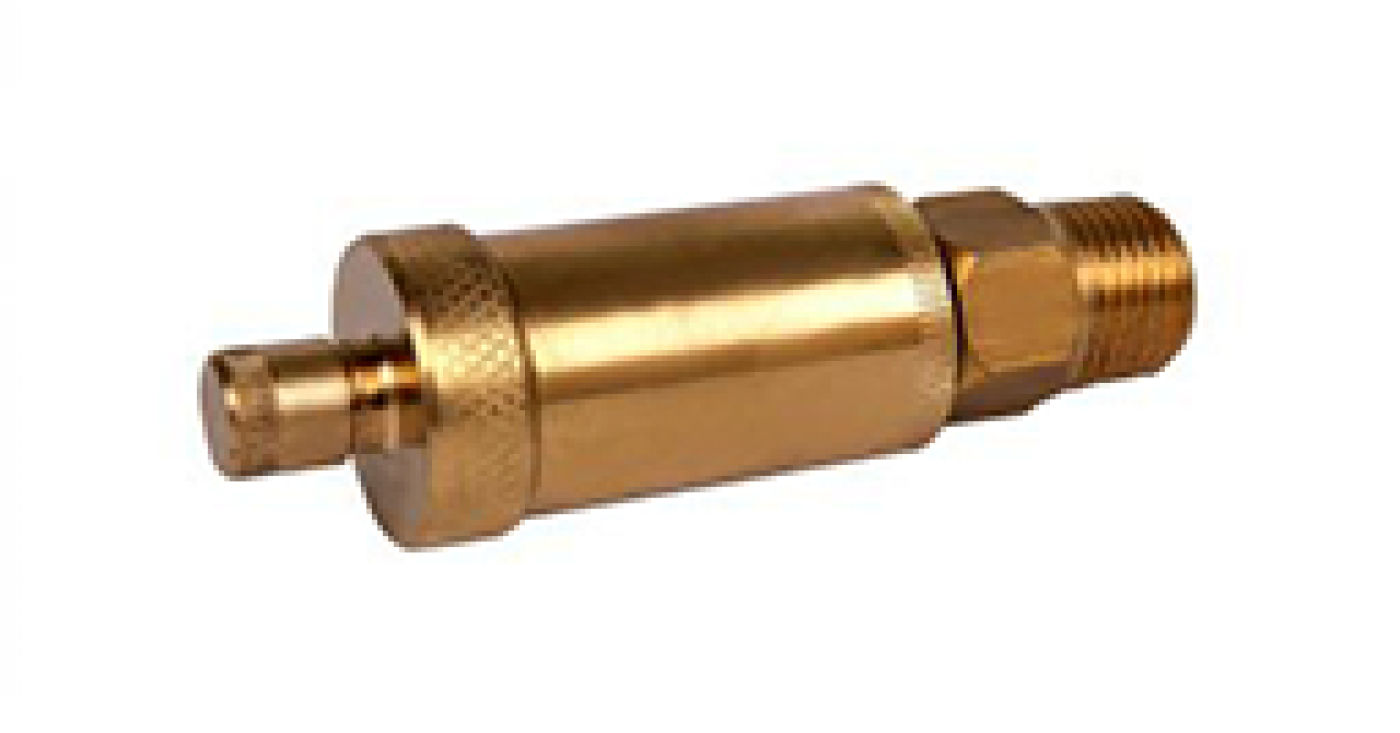

Automatic Air Vent

Easy flex-Strut Frame

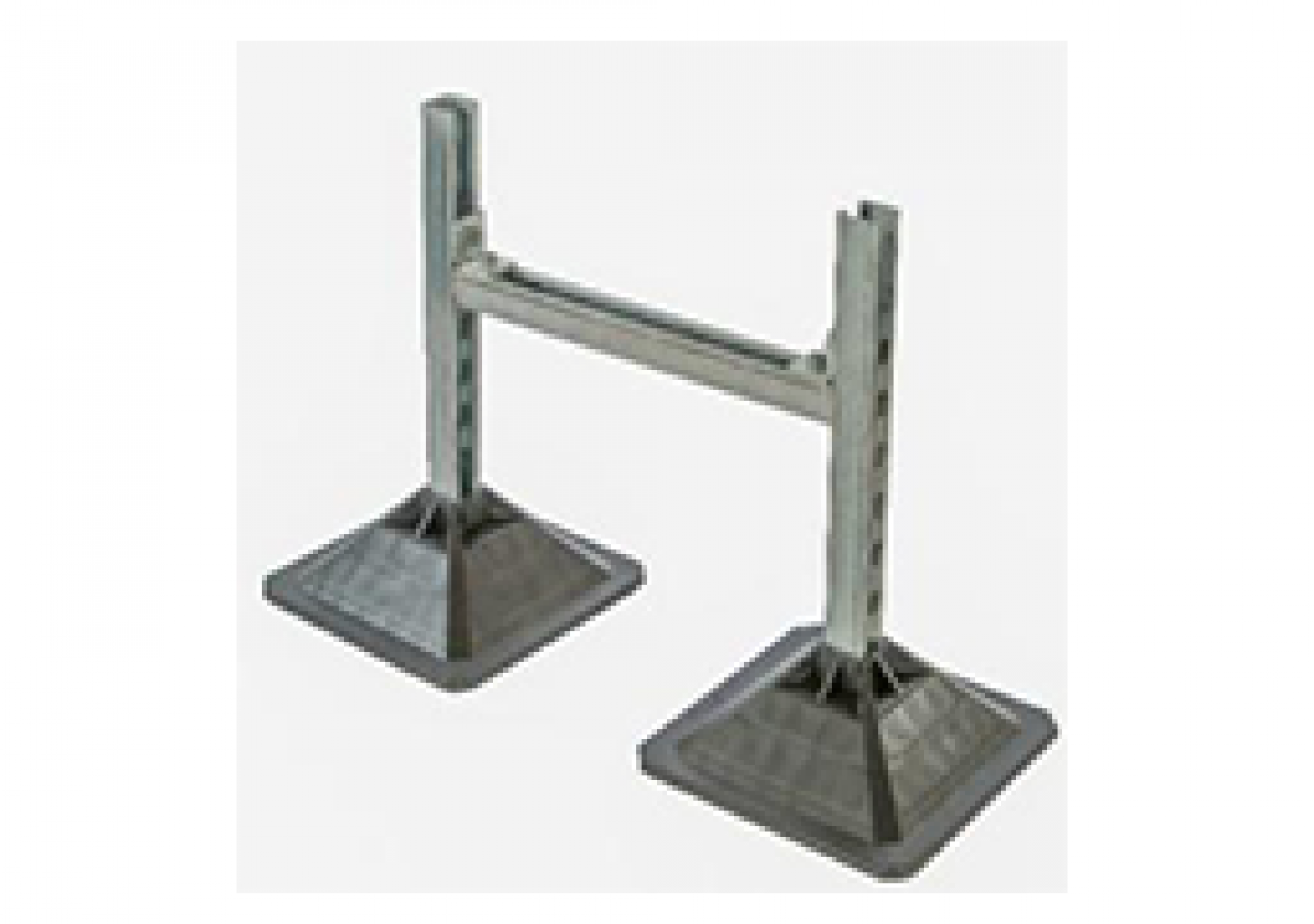

H-Frame

Rubber Feet

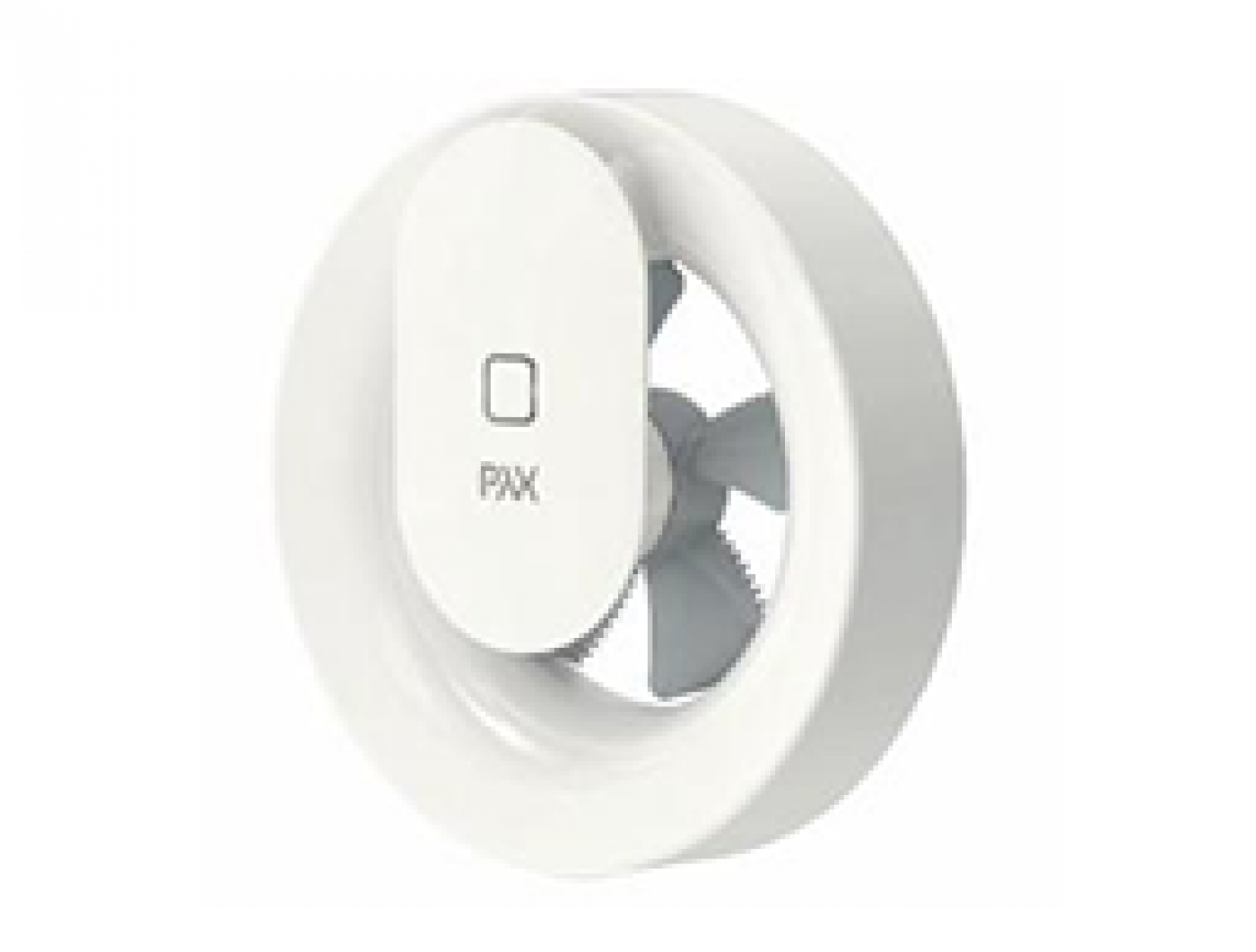

Pax Norte Intelligent Exhaust Fan

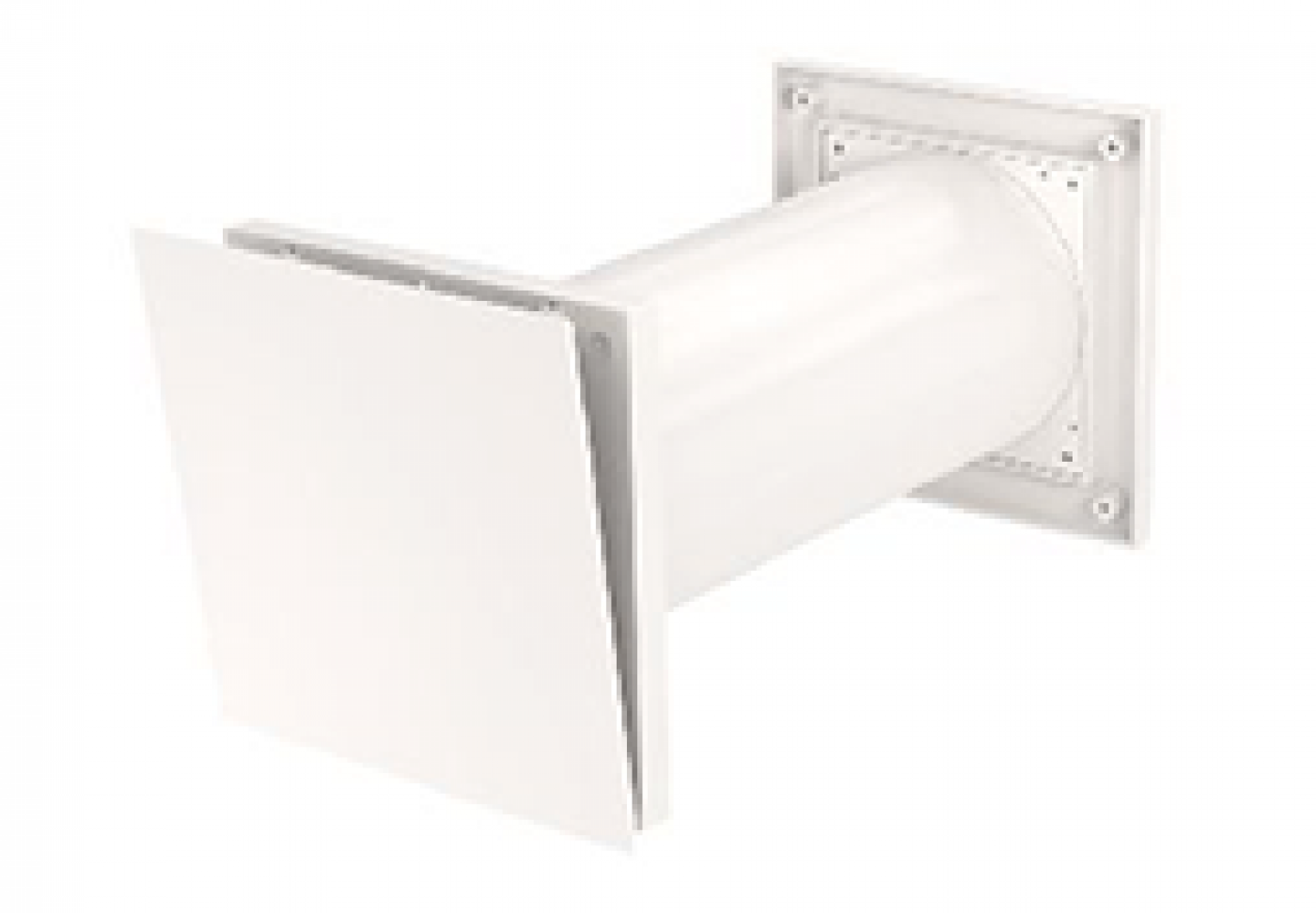

Fresh Air wall Vent
