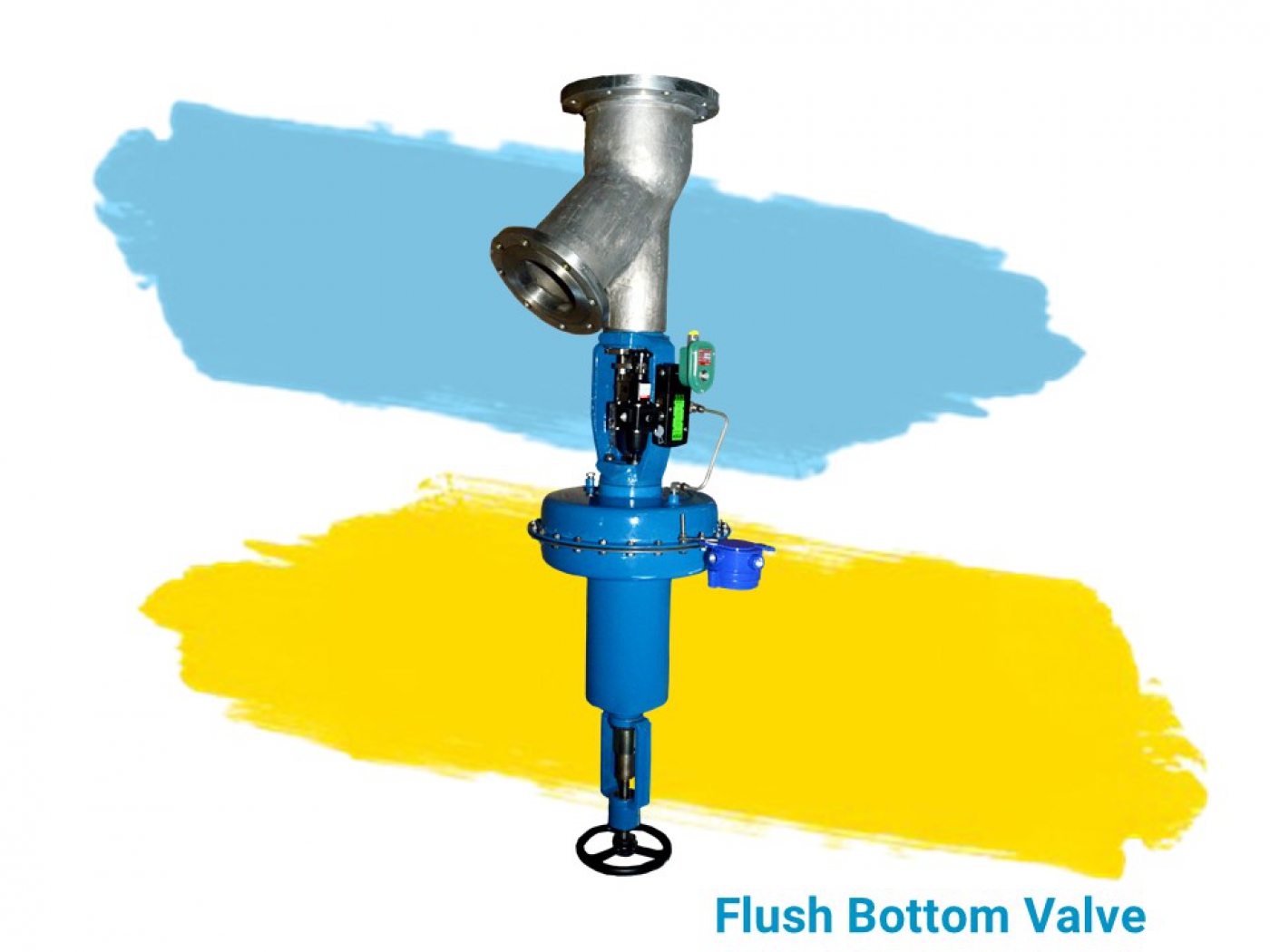

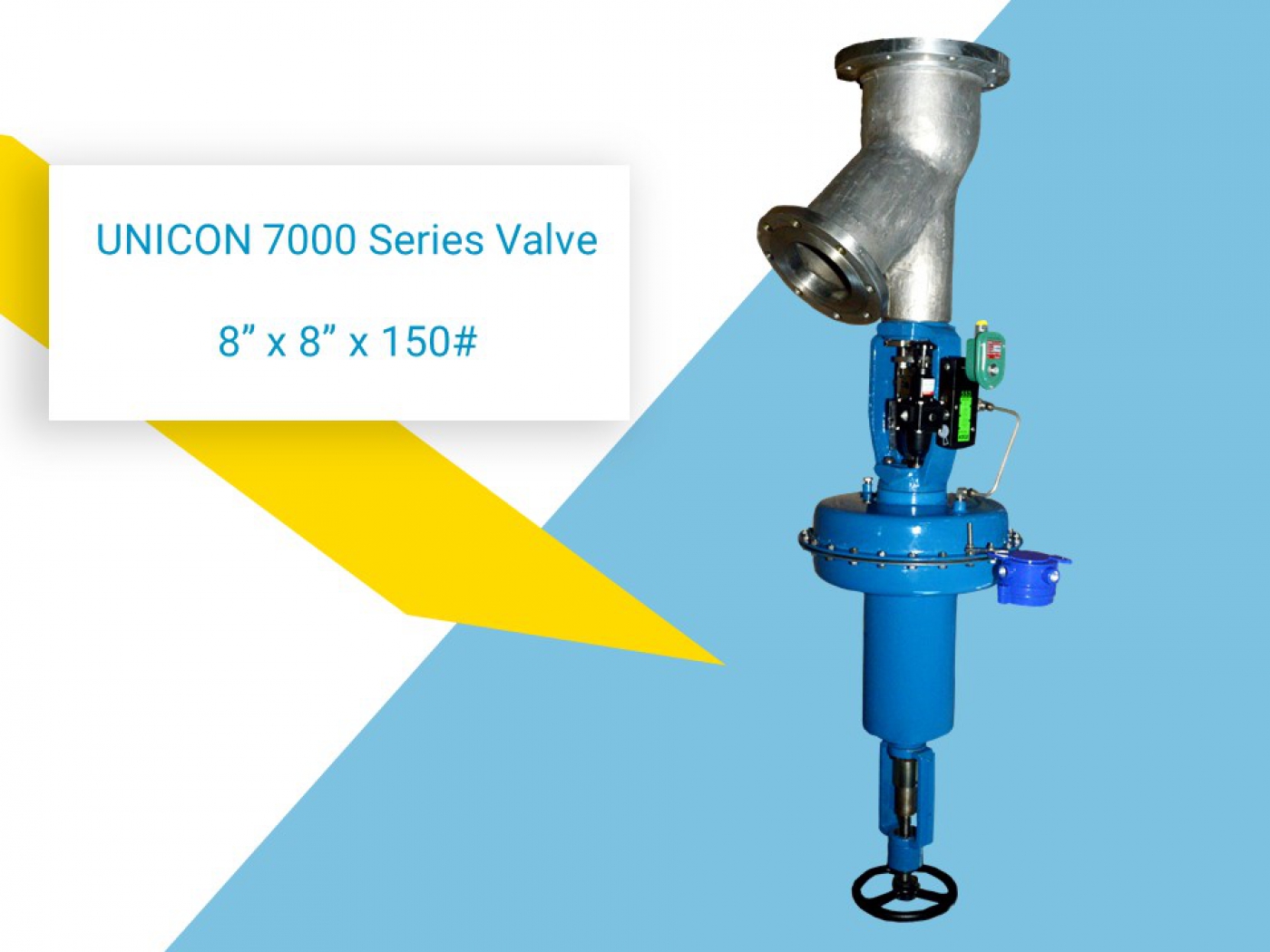

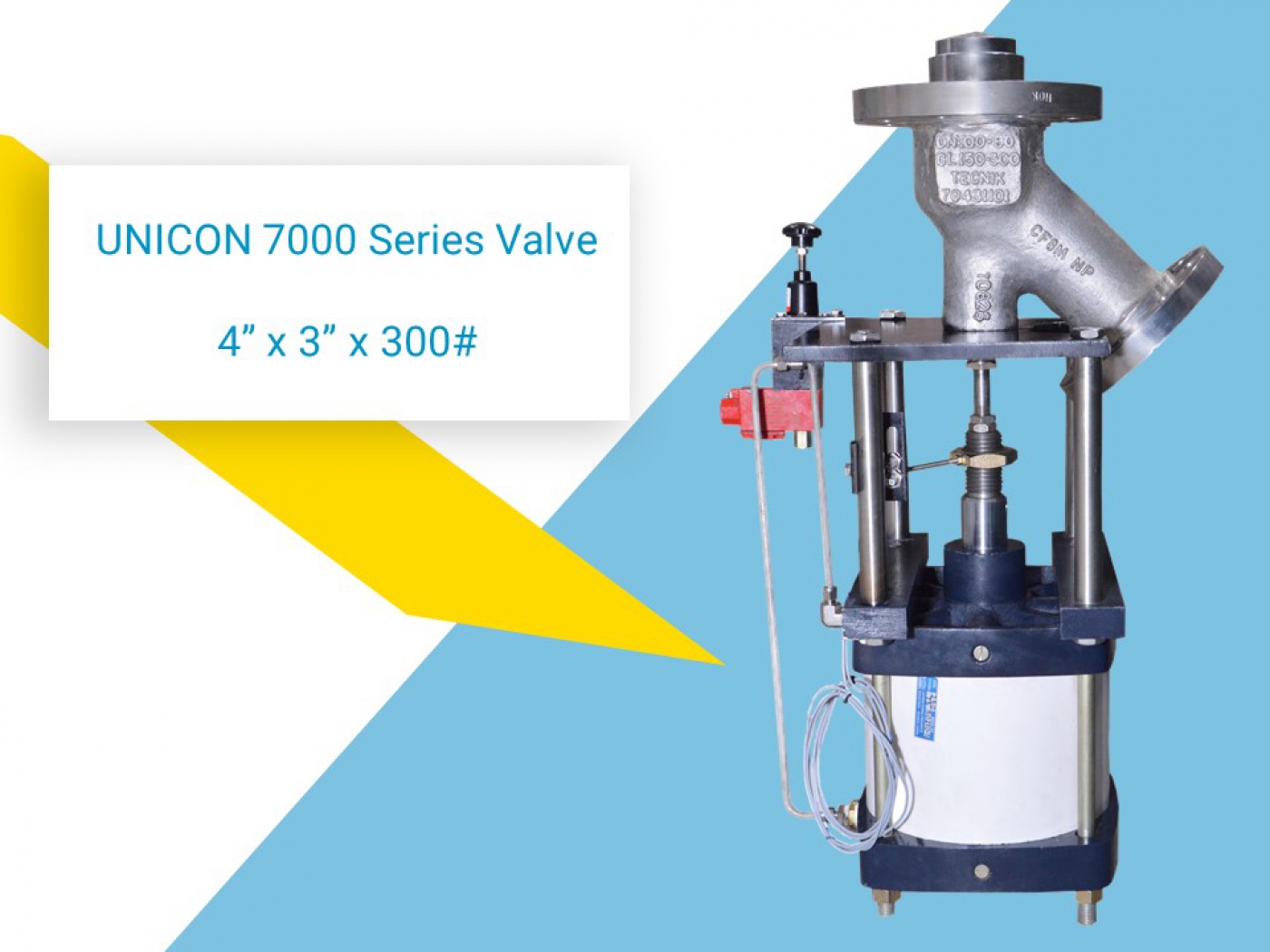

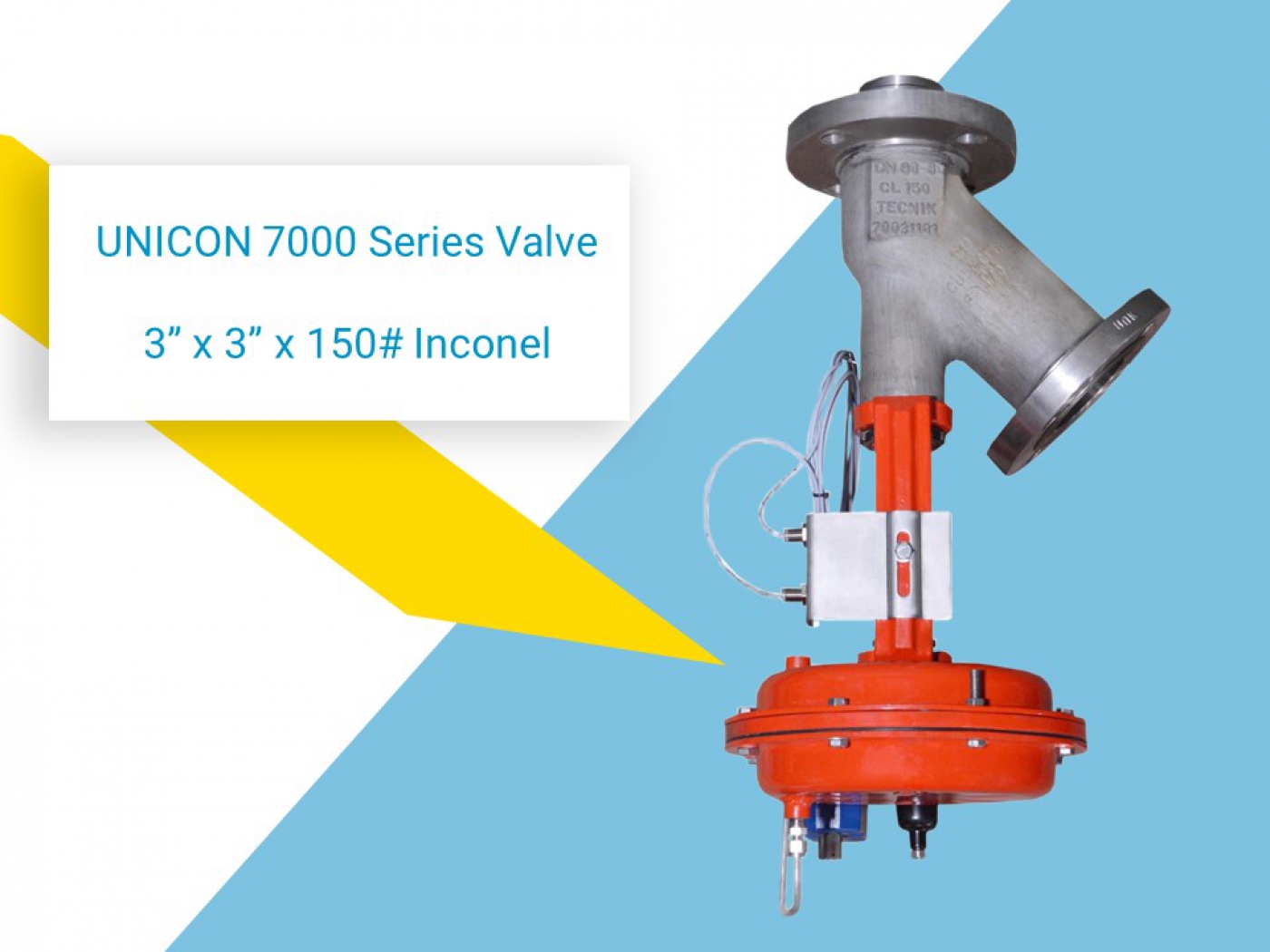

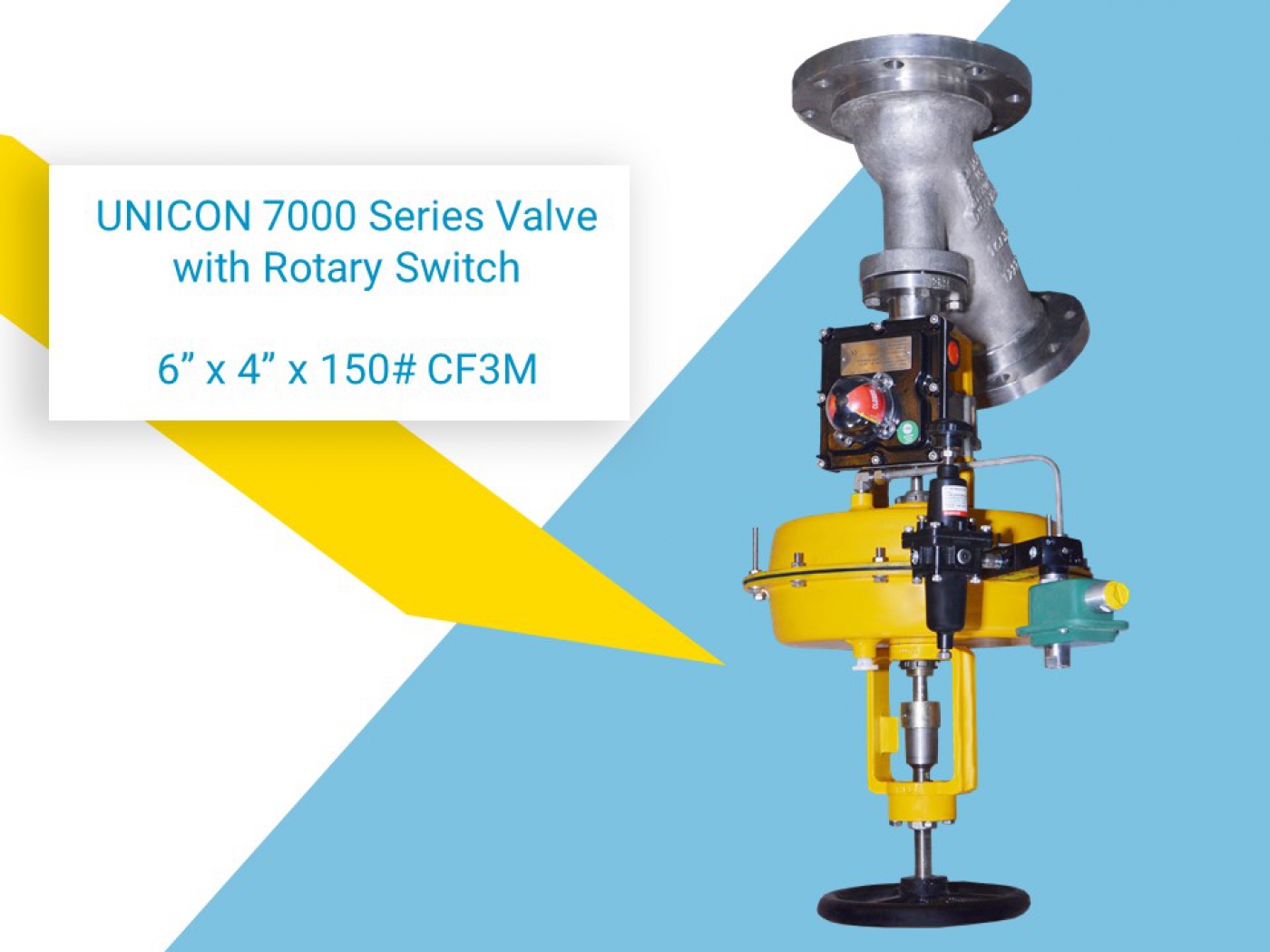

UNICON 7000 / 7100 FLUSH BOTTOM VALVE

UNICON 7000 / 7100 Flush Bottom Valve is a special purpose valve, which is used in piping, reactors and vessels to drain out Abrasives, Slurry, Viscous Material and Semi Solid Media.
This type of valve is attached to the vessels on pad type nozzle. The disks in closed position match with the bottom of the vessel or piping leaving no dead volume.
There are two types of flush bottom valves:
Valve with plug opening inside the vessel
Valve with Plug opening inside the valve
In the former case the stem pushes the plug into the vessel to drain the liquid. While in latter case, the plug gets pulled down into the valve effecting the discharge of material providing a larger flow through path.

Better flow capacity for line size
Suitable for drainage systems
Tight closing for reliable shut-off even if change in pressure and temperature are sudden and extreme
Wide selection of actuators to meet most system requirements
Flexible design capabilities allows fitting any vessel configuration
Jacketed option available (Full-Jacketed & Semi-Jacketed)
Unique packing designs to suit various temperature and fluid needs
Excellent Shut-off performance
Inlet Flange Contoured to suit Vessel Curvature
Single piece body design to avoid joints in the valve body
Jacketed Body
Inlet Flange Contoured to suit Vessel Curvature
