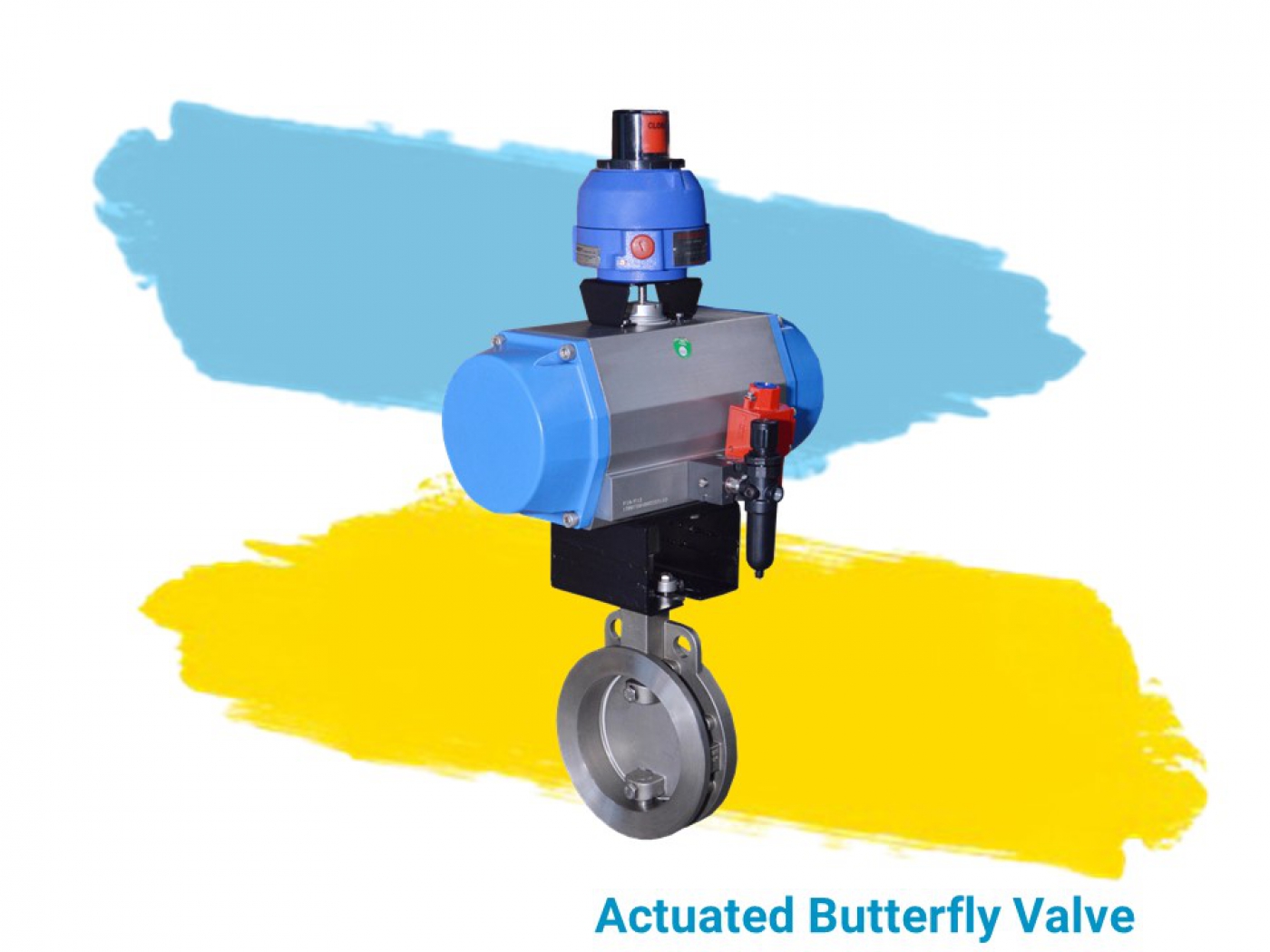

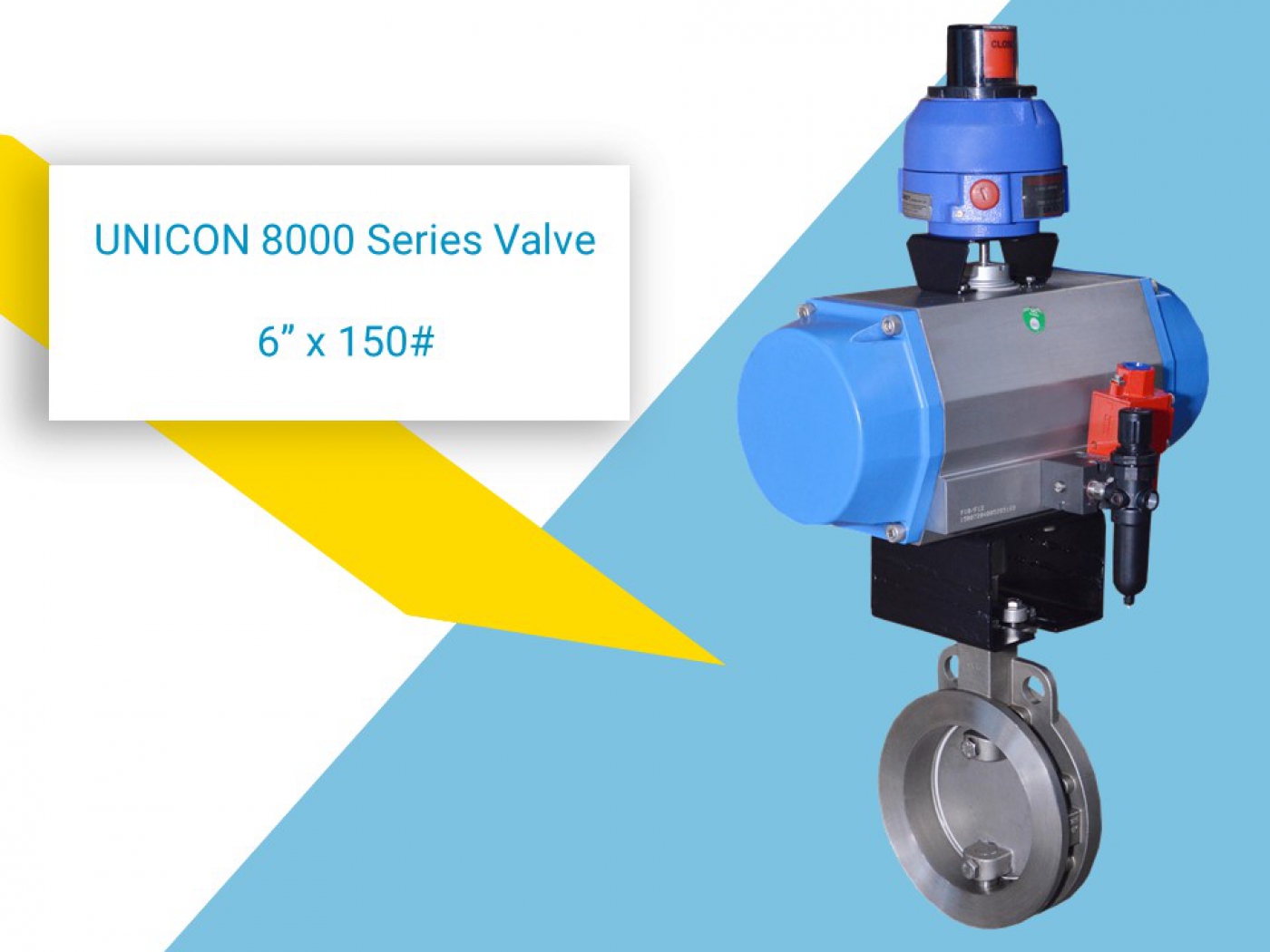

UNICON 8000 ACTUATED BUTTERFLY VALVE
- UNICON 8000 is Double Off-Set Butterfly Valve that is designed for High flow and Low pressure drop, Control and ON-OFF applications.
- Butterfly Valves are best suited for dead-end services including chemicals, corrosive fluids, pulp and paper, cement, water works, ducting, vacuum application, petroleum, hydrocarbon processing and refinery services.
- Available with various types of actuators, these allow for smooth passage and prevent fluid deposition within the seat thereby increasing seat life.
- Body shape gives optimum flow characteristic and light weight with compact body construction
- Free flow passage offers minimum resistance to flow and high CV values
- Optional disc geometry provides bubble tight shut-off
- PTFE lined bearing minimizes friction, thereby reducing the operating torque and actuator size
- Rigid PTFE allows a smooth passage and prevents fluid deposition within the seat thereby increasing seat life
- Long service life and operational reliability
- Suitable for dead-end service
- Double / Triple Off-Set and Sleeved Design
- Semi Lug / Flanged Construction
- Size range : 2" - 40" (50 mm to 1000 mm)
- Pressure Ratings : 150# & 300# Class
- End Connections : Wafer, Lug, Semi-Lug, Flanged.
- Body Material : Cast Iron, Cast Steel & Stainless Steel.
- Sleeve Options : EPDM, Viton, Silicone, PTFE and PFA
- Trim Characteristics : ON-OFF, Throttling, Modified EQ%
- Leakage Class : Class III, Class IV & Class VI As Per FCI 70-2
- Standards : API 609
- Semi-Lug / Flanged Construction
- Double / Triple Off-Set Design
- Pneumatic Diaphragm Actuators
- Pneumatic Piston Actuators
- Electric Actuators
- Pneumatic / Electro - Pneumatic / Smart E/P – Positioners
- Air Filter & Regulator
- Solenoid Valve
- Limit Switches
- Counter Flanges
