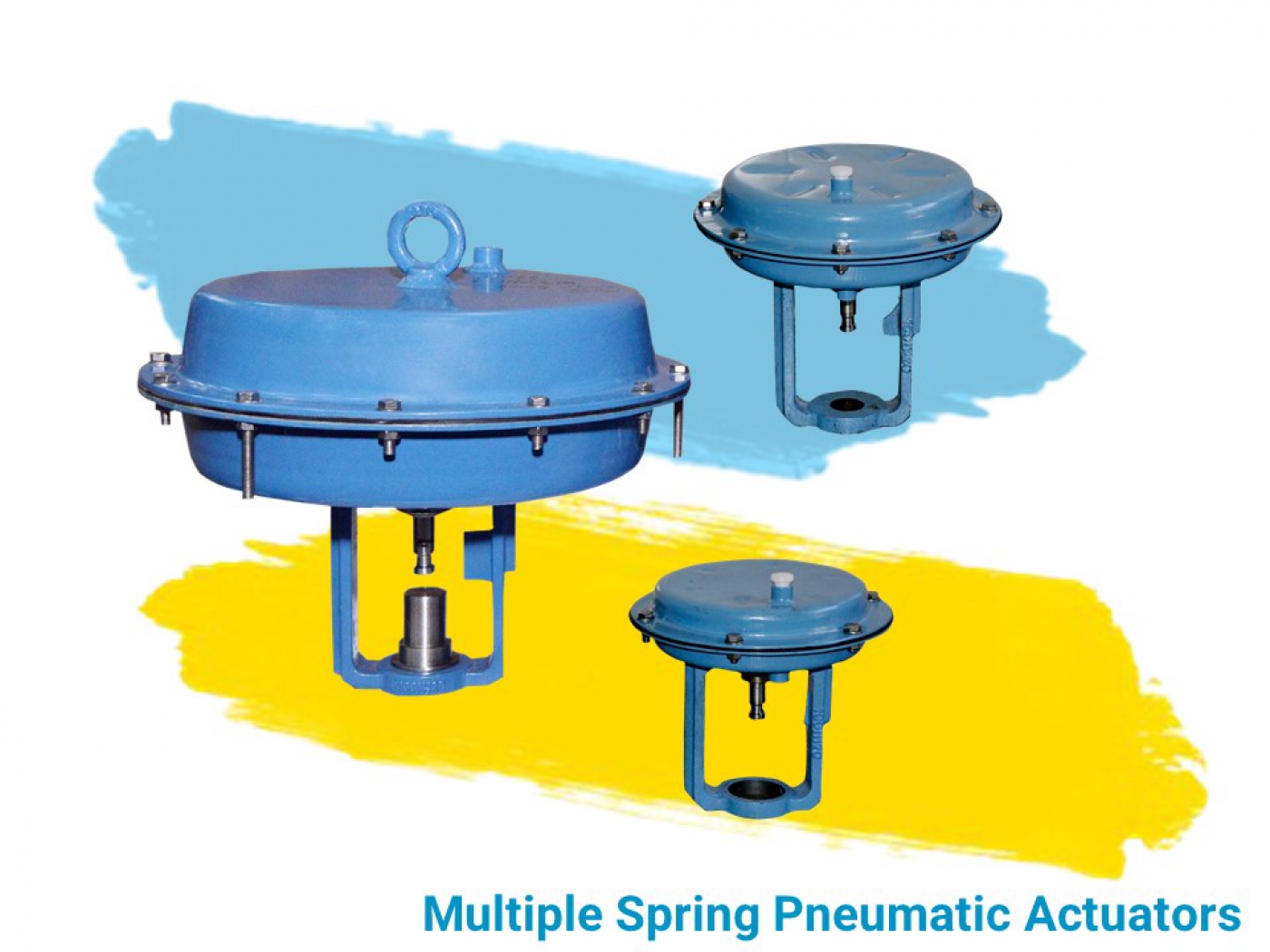

ACTUATOR – MULTIPLE SPRING ACTUATOR
- TECNIK Actuators are efficient new generation actuators. They are pneumatically operated multi-spring diaphragm actuators for high thrust and linear movement of valve plugs, with accurate control.
- Its construction material used and thrust power make it best suited for throttling, modulating and on-off process applications.
- High quality spring steel for springs, fabric inserted diaphragm and a sturdy design are determining factors which make our actuators a very reliable product.
- Compact, lightweight and low overall height
- Powerful thrusts at high stroking speed
- Field reversible without any additional parts
- Different spring range by varying the number of springs or compression
- Manual operation incorporated with handwheel arrangements
- Variety of models available for how and high thrust requirements
- Long service life and maintenance free
- Diaphragm area : 36, 60, 108, 150 & 300 sq.in.
- Maximum supply pressure : 6 bar
- Operating temperature range : -5 deg. C to 80 deg. C
- Air connections : ¼" NPT and 3/8" NPT
- Diaphragm material : NBR (Nitrile Rubber) with fabric reinforcement, EPDM with fabric reinforcement
- Actuator stem : SS316
- Actuator stem sealing : NBR
- Diaphragm casing : Steel sheet; powder coated stainless steel available on request
- Application required
- Actuator type
- Valve plug travel
- Spring range
- Valve action
- Supply pressure
- Air connection
- Mounting details
