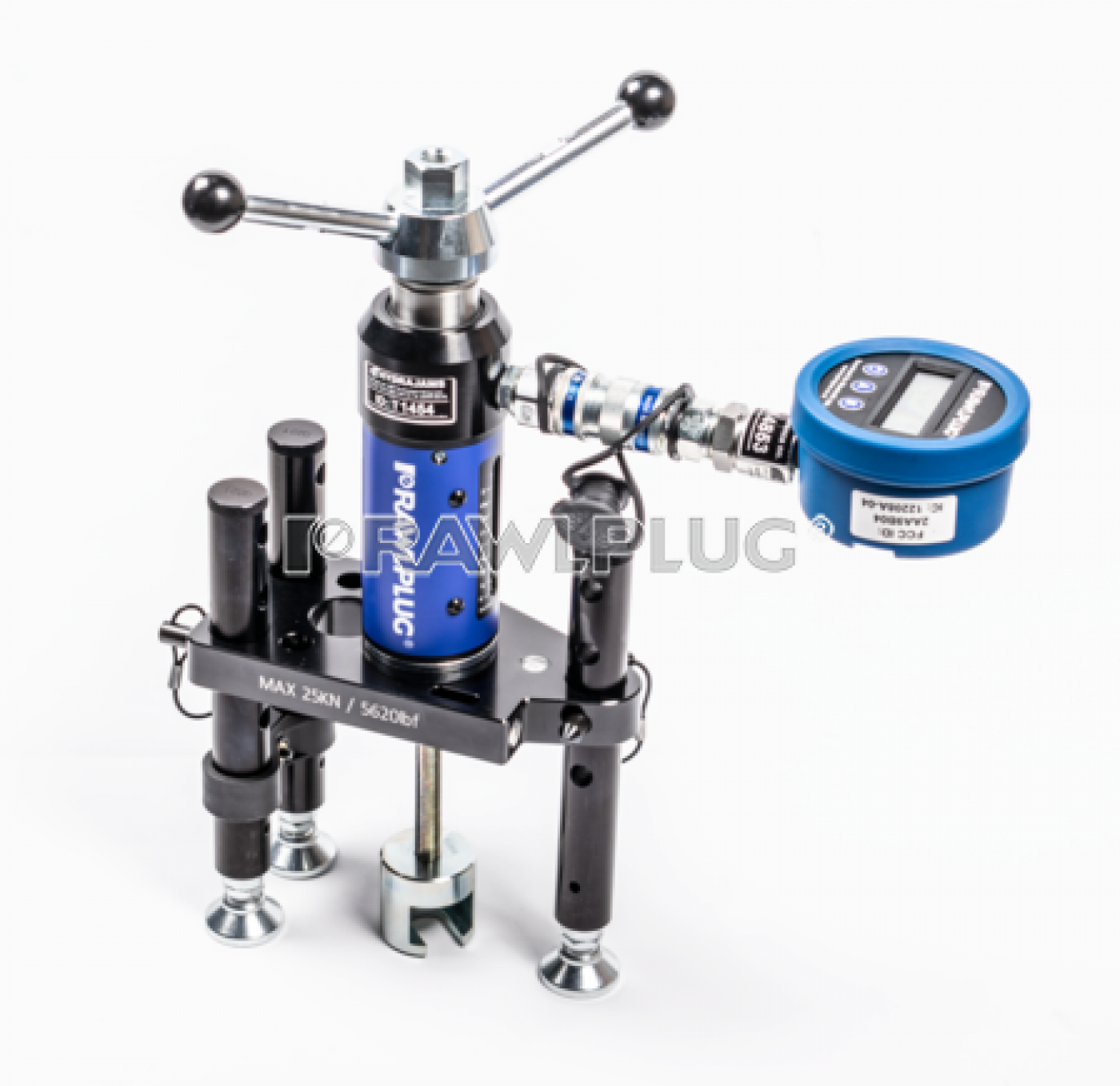

- The pull-out tester is a purpose made system for testing fixings, fasteners and anchors
- The sturdy and stable adjustable design guarantees correct installation and measurement.
- A high-precision digital pressure gauge ensures high measurement accuracy and a clear reading of the results.
- The pressure gauge has a quick-release male connector to facilitate quick removal and installation on the unit.
- The large number of accessories and adapters included in the kit allows a wide range of applications with different mounts.
- Each tester comes with a calibration certificate to guarantee correct measurement.
- Tester R-TK-D2000-025, digital pressure gauge 25kN
- Adapters and additional accessories.
- RAWLCASE case.
- Calibration certificate.
- User manual.
- Oil bottle with quick-release male connector.
- Load spreading bridge with telescopic legs secured by M4 x 30mm screws.
- M12 locking adapter (located in the tester jaw).
- Adapter set for threaded connections (M4, M5, M6, M8, M10, M12)
- Adapters for slotted connections (4.5, 5.5, 6.5, 8.5, 10.5, 12.5).
- Screw test adapter with M12 thread, 150mm.
- M12 x 20mm adapter for Clevis ring screw with 135mm thread.
- Piston key.
- M16 and M20 long threaded stem adapters.
- 22mm open-end ratchet spanner.
- Isolation adapter.
- Spanners 10, 14, 17 mm.
- 3mm ball key.
- Allen keys 2 and 2.5 mm.
- 2 x Spare M4 x 30mm bridge screws.
- Digital meter user manual.
- Spare 9V battery (located underneath the instrument).
- The pull-out tester is a purpose made system for testing fixings, fasteners and anchors
- For use on both horizontal and vertical surfaces.
