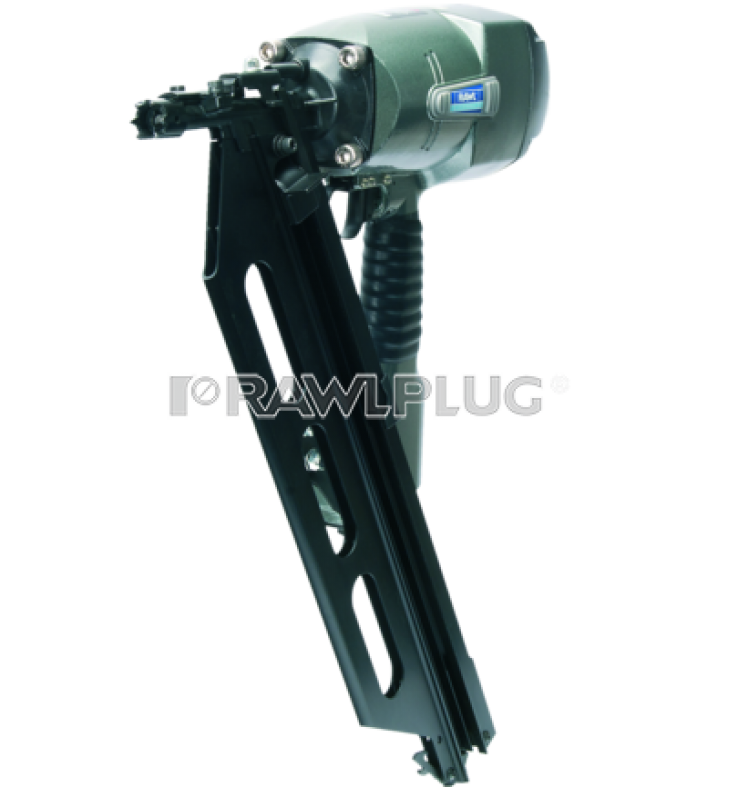

R-RAWL-PNP-130 Pneumatic framing nailer

Features and benefits

  • Nail range from 90mm to 130 mm widens the range of typical applications
  • Removable no mark nose for protecting the timber surface. Especially important when securing timber cladding or facades
  • Magazine capacity of 50 nails provides less time needed for reloading
  • Adjustable exhaust port is an improtant safety feature when operating in areas where other persons amy be affected by the exhausted air and particles
  • Simplicity of tool design ensures low maintenance and high reliability

Applications

  • Timber frame stud work in timber framing industry
  • Installation of battens and sheating in roof construction
  • Installation of wooden facades
  • Manufacturing of timber standarised structure like Timber frame houses or roof elements
  • Installation of timber flooring and terraces

Equipment

  • R-RAWL-PNP-130 Pneumatic framing nailer
  • Spare gasket set
  • Operating and Safety manual
  • Safety glasses

Product information

Index

Power source

Magazine type

Magazine capacity

Magazine angle

WEIGHT

Fastener diameter range

Fastener length range

Noise level

Maximum pressure

Operating pressure

Box weight

Outer weight

EAN

[nail]

[degree]

[kg]

[mm]

[mm]

[dB]

[bar]

[bar]

kg

kg

R-RAWL-PNP-130

Pneumatic

Strip

50

21

5.6

3.3 - 4.2

90 - 130

94

9

5-7

7.92

7.92

5906675251981

Additional information
