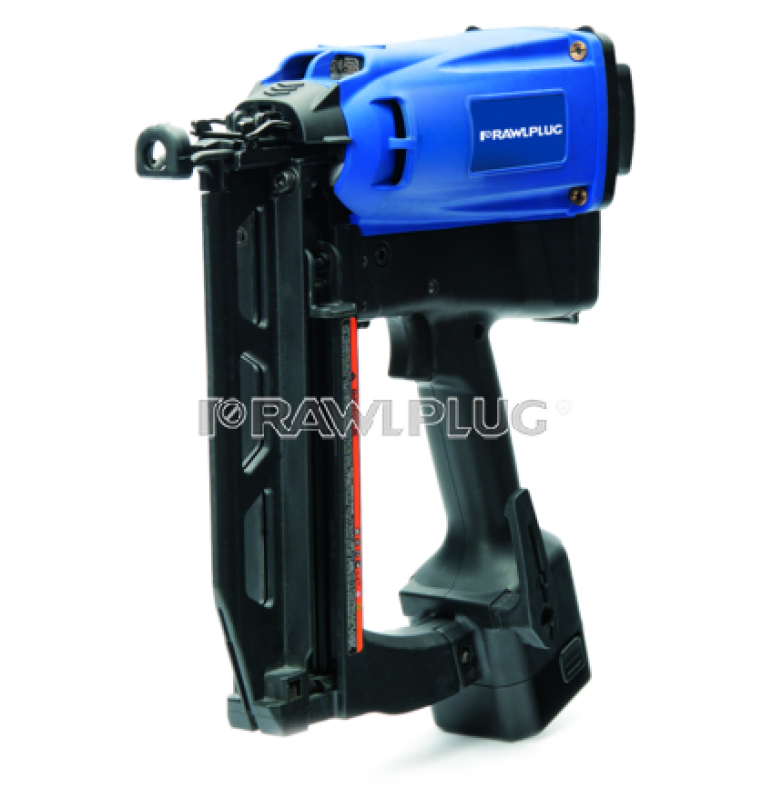

R-RAWL-B1664 Gas powered second fix nailer

Features and benefits

  • 16 gauge Brad range from 19mm to 64mm
  • Tool free depth adjustment. The operator can easily adjust the depth that the nail is driven into timber to produce a precise fixing
  • Quick release mechanism for clearing obstructions and jams without the use of any tools. Allows also to perform simple maintenance
  • Removable no mark nose for protecting the timber surface. Especially important in all second fix applications in which undamaged elements will be visible. A spare nose tip cover is stored on the back of the magazine
  • LED display for monitoring battery status and preventing battery depletion
  • Rear loading magazine with a capacity up to 100 brads is a feature when working in thight corners. It allows to reach comfortably all application areas
  • Sequential firing mode for operators safety and fixing precision
  • The only device available on the market certified by TUV Rheinland
  • Belt/rafter hook for safe storage. In addition, the low weight of the tool allows goodmaneuverability and safe transportation at the workplace

Applications

  • Installation of wooden facades
  • Installation of soffits and other roof finishing elements
  • Installation of skirting boards and architraves
  • Manufacturing of furniture, wooden packaging and timber trim

Equipment

  • R-RAWL-B1664 Straight brad nailer
  • 2 batteries
  • Charger base
  • AC power supply cable
  • Operating and Safety manual
  • Safety glasses and ear plugs
  • Case

Product information

Index

Fastener length range

Fastener type

Substrate

Dimensions

Fuel cell type

WEIGHT

Magazine capacity

Battery charge

Shots per charge

Noise level

Box weight

Outer weight

EAN

[mm]

[mm]

[kg]

[nail]

[h]

[dB]

kg

kg

R-RAWL-B1664

19 - 64

16 gauge straight brad

Timber

315x 274 x 86

GP4

2.15

100

2

4500

92

5.06

5.06

5906675267654
