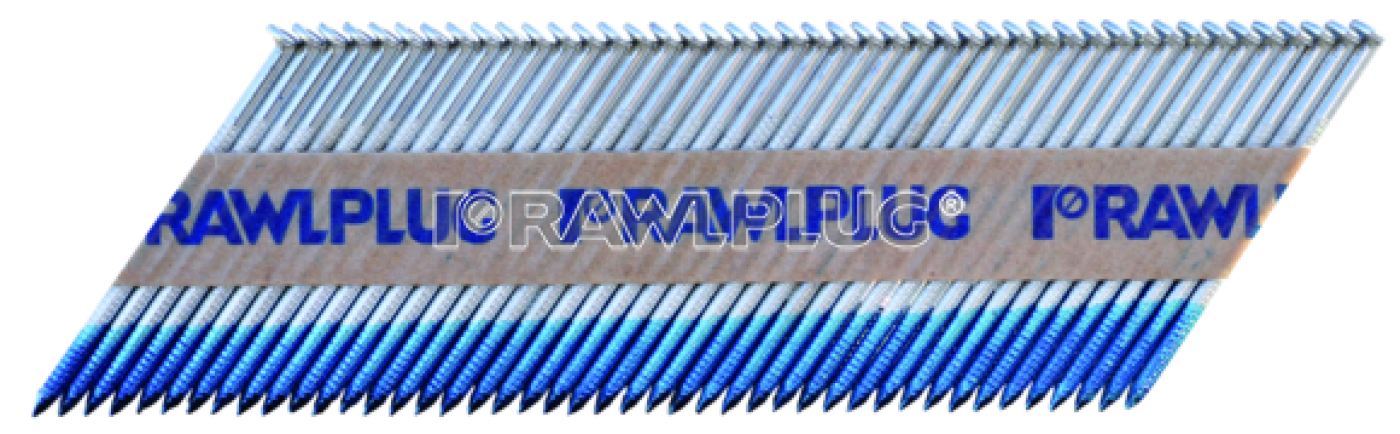

R-DRHDG Ring collated nails with fuel cells - hot deep galvanized
Features and benefits
- 34º angle collation with a clipped head ensures the nail is compatible with all leading manufactures tools
- Special coating at the base of the shank improves the drive of the nail and ensures a secure fixing
- Diamond point prevents the timber from splitting
- Waxed paper collation avoids deterioration in wet conditions
- Minimum of 50 micron zinc coating provides high corrosion protection
- Depending on the quantity of nails box contains 1,2 or 3 fuel cells
- A wide variety of combinations of nail coatings and finishes wllows everyone to find the right solution for a particular application
Applications
- Timber frame stud work in timber framing industry
- Installation of battens and sheating in roof construction
- Installation of soffits and other roof finishing elements
- Installation of wooden facades
- Installation of timber flooring and terraces
- Manufacturing of timber standarised structure like Timber frame houses or roof elements
- Dry interiors C1
- Damp interiors C2
- External conditions with an increased risk of corrosion C4
Product information
|
Index |
Fastener diameter |
Length |
Head type |
Shank type |
Finish |
Protection |
Fasteners per strip |
Carton quantity |
Fuel cells per carton |
Collation |
Box weight |
Outer weight |
EAN |
|
[mm] |
[mm] |
[pcs] |
[pcs] |
[pcs] |
kg |
kg |
|||||||
|
R-DRHDG-2851 |
2.8 |
51 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
3300 |
3 |
34º paper laminated |
10.14 |
10.14 |
5906675047478 |
|
R-DRHDG-2863 |
2.8 |
63 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
3300 |
3 |
34º paper laminated |
11.33 |
11.33 |
5906675047485 |
|
R-DRHDG-3175 |
3.1 |
75 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
2200 |
2 |
34º paper laminated |
10.47 |
10.47 |
5906675047492 |
|
R-DRHDG-3190 |
3.1 |
90 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
2200 |
2 |
34º paper laminated |
12.45 |
12.45 |
5906675047508 |
|
SPG-DRHDG-2851 |
2.8 |
51 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
3300 |
0 |
34º paper laminated |
10.14 |
10.14 |
5906675500904 |
|
SPG-DRHDG-2863 |
2.8 |
63 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
3300 |
0 |
34º paper laminated |
11.33 |
11.33 |
5906675500911 |
|
SPG-DRHDG-3175 |
3.1 |
75 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
2200 |
0 |
34º paper laminated |
10.47 |
10.47 |
5906675500928 |
|
SPG-DRHDG-3190 |
3.1 |
90 |
Clipped head |
Ring |
Hot dipped galvanised |
Minimum 50 microns |
44 |
2200 |
0 |
34º paper laminated |
12.45 |
12.45 |
5906675500935 |
