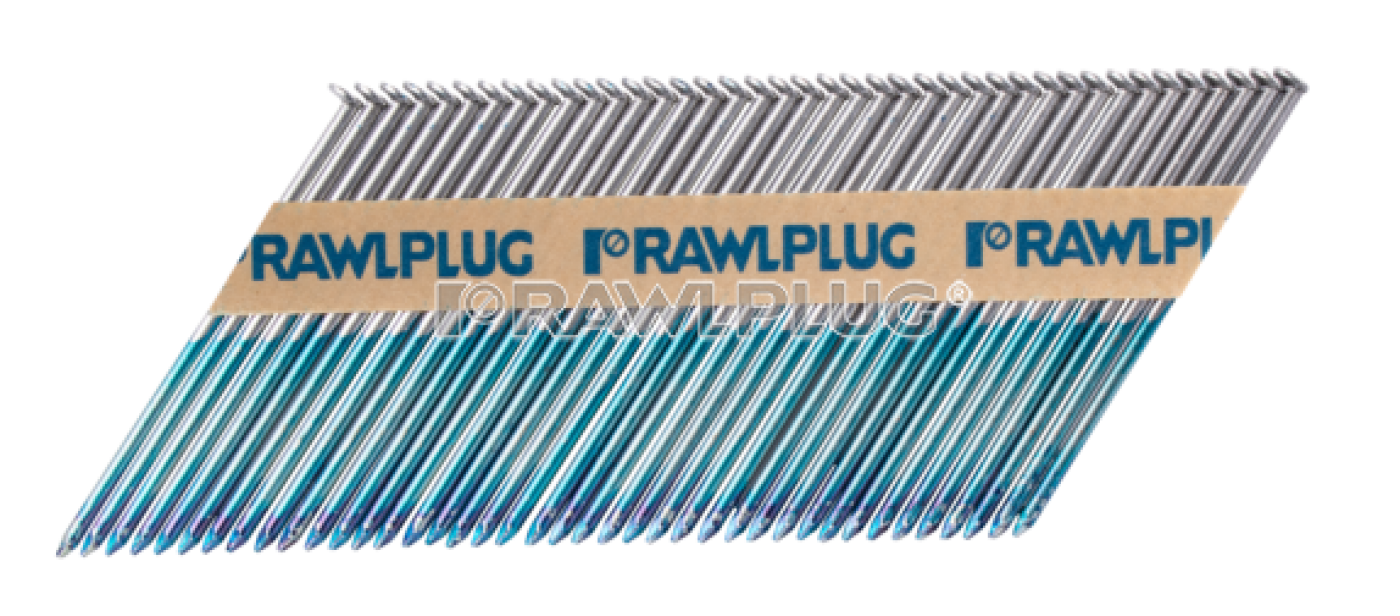

R-DPHDG paper collated nails with fuel cells hot dipped galvanised
Features and benefits
- 34º angle collation with a clipped head ensures the nail is compatible with all leading manufactures tools
- Special coating at the base of the shank improves the drive of the nail and ensures a secure fixing
- Diamond point prevents the timber from splitting
- Waxed paper collation avoids deterioration in wet conditions
- Minimum of 50 micron zinc coating provides high corrosion protection
- Depending on the quantity of nails box contains 1,2 or 3 fuel cells
- A wide variety of combinations of nail coatings and finishes wllows everyone to find the right solution for a particular application
Applications
- Timber frame stud work in timber framing industry
- Roof battens installation
- Decking
- Cladding and panelling and installation of other external trim
- Floor boarding
- Manufacturing and installation of fencing
- Sheating roof structures
- Dry interiors C1
- Damp interiors C2
- External conditions C3
- External conditions with an increased risk of corrosion C4
Product information
|
Index |
Fastener diameter |
Length |
Head type |
Shank type |
Finish |
Protection |
Collation |
Fasteners per strip |
Carton quantity |
Fuel cells per carton |
Box weight |
Outer weight |
EAN |
|
[mm] |
[mm] |
[pcs] |
[pcs] |
[pcs] |
kg |
kg |
|||||||
|
R-DPHDG-3190 |
3.1 |
90 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
2200 |
2 |
13.14 |
13.14 |
5906675047461 |
|
R-DPHDG-3175 |
3.1 |
75 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
2200 |
2 |
10.56 |
10.56 |
5906675512327 |
|
R-DPHDG-2863 |
2.8 |
63 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
3300 |
3 |
12.05 |
12.05 |
5906675512310 |
|
R-DPHDG-2851 |
2.8 |
50 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
3300 |
3 |
10.85 |
10.85 |
5906675512303 |
|
SPG-DPHDG-2851 |
2.8 |
50 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
3300 |
0 |
10.19 |
10.19 |
5906675500942 |
|
SPG-DPHDG-2863 |
2.8 |
63 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
3300 |
0 |
11.39 |
11.39 |
5906675500959 |
|
SPG-DPHDG-3175 |
3.1 |
75 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
2200 |
0 |
10.12 |
10.12 |
5906675500966 |
|
SPG-DPHDG-3190 |
3.1 |
90 |
Clipped head |
Smooth |
Hot dipped galvanised |
Minimum 50 microns |
34º paper laminated |
44 |
2200 |
0 |
13.14 |
13.14 |
5906675500973 |
